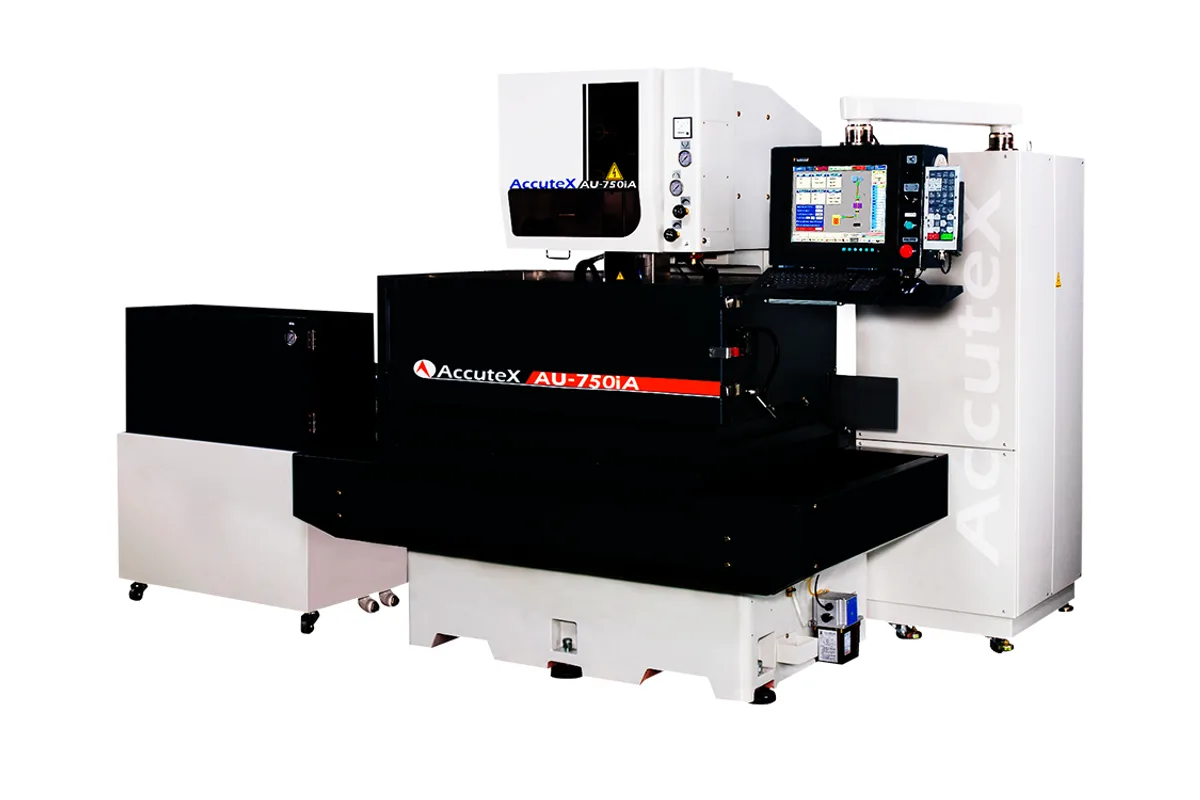

AccuteX AU-750iA
Image: accutex.com.tw, AccuteX
Key Specifications
max workpiece size
max cutting workpiece height
max workpiece weight
x axis travel
y axis travel
uv axis travel
How much does the AccuteX AU-750iA cost?
Price estimate
We do not have a price for the AccuteX AU-750iA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
On the AU-750iA, AccuteX gives every figure a buyer needs for planning: travels of 750 mm (29.5 in), 500 mm (19.7 in) and 300 mm (11.8 in), a 1,240 L water system, a 16 kg (35 lb) spool and a maximum cutting height of 260 mm (10.2 in). Together they describe a mid-size machine set up for long runs.
The cutting height deserves attention. The Z stroke is 300 mm (11.8 in) and the workpiece envelope is 1,190 x 720 x 295 mm (46.9 x 28.3 x 11.6 in), yet AccuteX lists 260 mm (10.2 in) as the tallest part the machine will cut. A block can be taller than that and still fit in the tank; it cannot be cut through its full height.
Long unattended running is where this model is set up to earn its keep. The 16 kg (35 lb) spool holds more wire than the 10 kg (22 lb) spool of the AU-75iA, and the water system is large for the travel. AccuteX's AWT threads at the break point after a wire break, and the maker says a wire above 0.25mm can be threaded directly in a workpiece of 300mm.
Workpiece weight is 800 kg (1,764 lb) and the machine weighs 4,300 kg (9,480 lb). Taper capacity is ±21° / H100 on 100 x 100 mm (3.9 x 3.9 in) of U and V travel. The footprint, given as width, depth and height, is 3,260 x 3,210 x 2,300 mm (128.3 x 126.4 x 90.6 in).
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Size | 1,190 x 720 x 295 mm (46.9 x 28.3 x 11.6 in) (L x W x H) |
| Max Cutting Workpiece Height | 260 mm (10.2 in) |
| Max Workpiece Weight | 800 kg (1,764 lb) |
| X Axis Travel | 750 mm (29.5 in) |
| Y Axis Travel | 500 mm (19.7 in) |
| Uv Axis Travel | 100 x 100 mm (3.9 x 3.9 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Max Cutting Taper | ±21° / H100 |
| Wire Spool Weight | 16 kg (35 lb) |
| Machine Dimensions | 3,260 x 3,210 x 2,300 mm (128.3 x 126.4 x 90.6 in) (W x D x H) |
| Water System Capacity | 1,240 L |
| Machine Weight | 4,300 kg (9,480 lb) |
| Controller System | Windows |
| Control Device | 64-bit Industrial PC |
| Storage Device | ≥ 30GB SSD |
| Screen Display | 21.5" Color TFT Touch Screen |
| Data Input | Keyboard, Mouse, USB, Ethernet, FTP |
| Controlled Axes | 5 Axes / 6 Axes (Opt. W Axis) |
| Simultaneous Axes | 4 Axes / 5 Axes (Opt. W Axis) |
| Min Command Unit | 0.0001 mm / 0.00001 inch |
| Max Command Range | ±9999.9999 mm |
| Cutting Data Memory | 99999 Sets |
| Power Type | MOSFET Non-electrolysis power |
| Ignition Power Supply | 32 Steps, 53V~138V |
| On Time Settings | 24 Steps |
| Off Time Settings | 43 Steps |
Specifications sourced from accutex.com.tw — verified 2026-10-05
Strengths & Limitations
Strengths
- 16 kg (35 lb) wire spool and a 1,240 L water system for long cuts
- 750 mm (29.5 in) by 500 mm (19.7 in) of travel with a workpiece envelope of 1,190 x 720 x 295 mm (46.9 x 28.3 x 11.6 in)
- Maximum cutting height is stated outright: 260 mm (10.2 in)
- AWT rethreads at the wire break point
- Windows control with a 21.5" Color TFT Touch Screen and 99999 sets of cutting data
Limitations
- Cutting height of 260 mm (10.2 in) is less than the 300 mm (11.8 in) Z stroke
- Workpiece weight is 800 kg (1,764 lb), below the 1,000 kg (2,205 lb) of the AU-75iA
- Taper is limited to ±21° / H100; the larger AU-860iA reaches ±30° / H100
- The 1,240 L water fill adds well over a tonne to the installed weight
Best For
Frequently Asked Questions
01
AccuteX lists the maximum height of cutting workpiece as 260 mm (10.2 in). The Z stroke is 300 mm (11.8 in) and the maximum workpiece size is 1,190 x 720 x 295 mm (46.9 x 28.3 x 11.6 in), so the tank accepts a taller block than the wire can cut through.
02
A spool of up to 16 kg (35 lb). That is the larger of the two spool sizes AccuteX lists across its wire machines; smaller AU models such as the AU-75iA take 10 kg (22 lb). A bigger spool means fewer wire changes on long roughing and skim sequences.
03
X, Y and Z travels and the 4,300 kg (9,480 lb) machine weight are the same. The AL-750SA is listed with a 750 kg (1,653 lb) workpiece, a 10 kg (22 lb) spool and a 1,060 L water system. The AU-750iA has 800 kg (1,764 lb), 16 kg (35 lb) and 1,240 L.
04
3,260 x 3,210 x 2,300 mm (128.3 x 126.4 x 90.6 in) in width, depth and height, and 4,300 kg (9,480 lb). The water system holds 1,240 L. Include the water and a workpiece of up to 800 kg (1,764 lb) in the floor-loading check.
