Prima Power Laser Next 2141
Image: primapower.com, Prima Power
Key Specifications
x axis travel
y axis travel
z axis travel
a axis range
b axis range
c axis stroke
How much does the Prima Power Laser Next 2141 cost?
Price estimate
We do not have a price for the Prima Power Laser Next 2141 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

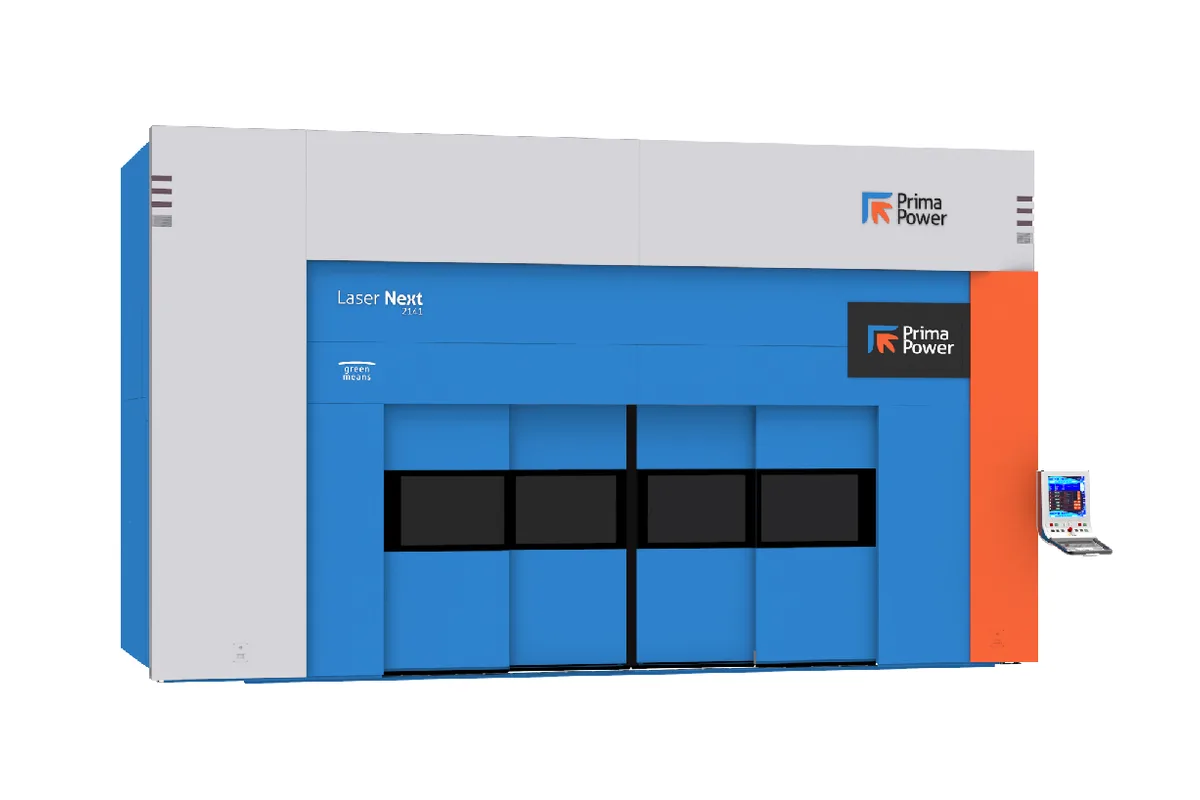

The Prima Power Laser Next 2141 is a 3D five-axis fiber laser with a large work area: X 4,140 mm (163.0 in), Y 2,100 mm (82.7 in) and Z 1,020 mm (40.2 in). It is the flexible member of the Laser Next family, intended for job shops and press shops that cut stamped parts of many sizes, and it also handles 2D cutting and welding.
Flexibility comes from four cabin configurations. With Fixed Tables, the standard version, the whole envelope is available for one large part, with access from all sides. Split Cabin divides the working volume in two with a removable wall and sliding roof, so one half is loaded while the other cuts; the wall comes out when a large part needs the full envelope. Shuttle Tables move parts and fixtures out of the working area from the sides or front. A Turn Table version handles loading in cover time for large series.
The main axes run on linear motors at 120 m/min. The head rotates 360° in A and ±135° in B at 1.5 rps, driven by direct motors with optical scales, and a short C stroke of ±12 mm (±0.47 in) sits in the head. Accuracy (Pa, Ps) is 0.03 mm to VDI 3441. The source is a fiber laser of 3,000 W – 4,000 W.
The Z travel is the figure to compare. At 1,020 mm it is well beyond the 612 mm of the Laser Next 1530-2130, which makes room for deep pressings and tall fixtures.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,140 mm (163.0 in) |
| Y Axis Travel | 2,100 mm (82.7 in) |
| Z Axis Travel | 1,020 mm (40.2 in) |
| A Axis Range | 360° |
| B Axis Range | ±135° |
| C Axis Stroke | ±12 mm (±0.47 in) |
| Axis Speed Xyz | 120 m/min |
| Axis Speed Ab | 1.5 rps |
| Accuracy Pa Ps | 0.03 mm (VDI 3441) |
| Laser Source | Fiber, 3,000 W – 4,000 W |
Specifications sourced from primapower.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Work area of 4,140 x 2,100 x 1,020 mm for large stamped parts
- Four configurations: fixed tables, split cabin, shuttle tables and turn table
- Linear motors on the main axes with 120 m/min axis speed
- 3D cutting, 2D cutting and welding on one machine
- Accuracy (Pa, Ps) of 0.03 mm to VDI 3441
Limitations
- Laser source is limited to 3,000 W – 4,000 W
- No trajectory speed is published, unlike the Laser Next 1530-2130 at 208 m/min
- The configuration has to be chosen to suit the part flow
- No cutting thickness figures are given
Best For
Frequently Asked Questions
01
X 4,140 mm (163.0 in), Y 2,100 mm (82.7 in) and Z 1,020 mm (40.2 in). The head adds A 360° and B ±135°, with a C stroke of ±12 mm (±0.47 in).
02
Four: Fixed Tables (the standard version), Split Cabin, Shuttle Tables and Turn Table. Split Cabin separates the working volume into two halves with a removable wall and sliding roof; the wall can be removed to restore the entire envelope for larger parts.
03
X, Y and Z move at 120 m/min on linear motors. The A and B head axes turn at 1.5 rps, driven by direct motors with optical scales on the focusing head.
04
Yes. Prima Power presents it as a multipurpose machine for 3D cutting, 2D cutting and welding, with a fiber laser source of 3,000 W – 4,000 W that needs no laser gases.
