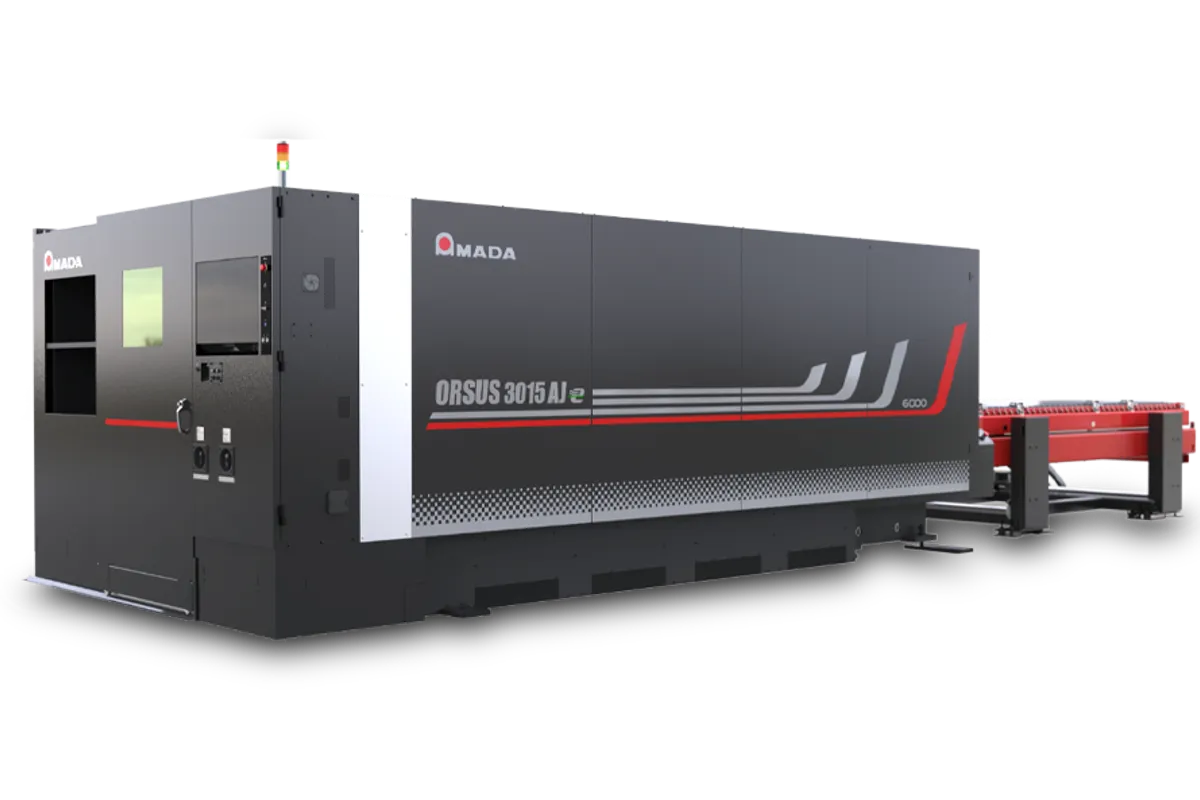

Amada ORSUS 3015 AJe

$350,000 - $650,000 Updated 2026-03-19

Key Specifications

Accuracy

+/-0.05 mm (+/-0.002 in)

work area

3,048 x 1,524 mm (120 x 60 in)

laser type

Fiber laser with built-in mode converter

laser power options

6 kW / 8 kW

beam control

Built-in mode converter for beam optimization

max cutting thickness mild steel 8kw

22 mm (0.87 in)

Overview

The Amada ORSUS 3015 AJe is Amada’s entry-level to mid-range fiber laser cutting system, positioned below the ENSIS and VENTIS in Amada’s laser hierarchy. Available in 6 kW and 8 kW configurations, the ORSUS delivers solid fiber laser cutting performance with Amada’s build quality and automation ecosystem at a more accessible price point than the premium VBC and LBC-equipped models.

The ORSUS 3015 AJe covers a standard 3,048 x 1,524 mm (120 x 60 in) work area and uses a built-in mode converter for beam control that optimizes beam characteristics across different material types and thicknesses. While not as sophisticated as the ENSIS VBC or the VENTIS LBC, the mode converter provides meaningful beam quality improvement over basic fixed-beam fiber lasers, particularly on medium-thickness stainless steel and aluminum.

The machine runs on Amada’s AMNC 4ie control with the latest touchscreen interface and includes the Laser Integration System with automated condition monitoring -- i-Optics Sensor and i-Process Monitoring continuously track beam quality and cutting conditions to stabilize the process. Clean Fast Cut (CFC) and Easy Fast Cut (EZFC) technologies improve edge quality and reduce material waste.

New ORSUS 3015 AJe machines price between $350,000 and $650,000 depending on laser power and configuration. The ORSUS competes with entry-level fiber lasers from Trumpf (TruLaser 1030 fiber), Bystronic (BySmart Fiber), and Mazak (Optiplex 3015 DDL), offering Amada brand quality and automation compatibility at a competitive price point.

Full Specifications

Parameter	Value
Work Area	3,048 x 1,524 mm (120 x 60 in)
Laser Type	Fiber laser with built-in mode converter
Laser Power Options	6 kW / 8 kW
Beam Control	Built-in mode converter for beam optimization
Max Cutting Thickness Mild Steel 8kw	22 mm (0.87 in)
Max Cutting Thickness Stainless 8kw	18 mm (0.71 in)
Max Cutting Thickness Aluminum 8kw	15 mm (0.59 in)
Positioning Accuracy	+/-0.05 mm (+/-0.002 in)
Rapid Traverse Xy	120 m/min (4,724 ipm)
Process Monitoring	i-Optics Sensor, i-Process Monitoring
Cutting Technologies	Clean Fast Cut (CFC), Easy Fast Cut (EZFC)
CNC Control	Amada AMNC 4ie with touchscreen interface
Table Load Capacity	920 kg (2,028 lb)
Machine Weight	13,000 kg (28,660 lb)

Specifications sourced from amada.com — verified 2026-03-28

Strengths & Limitations

Strengths

Most accessible price point in Amada’s current fiber laser lineup while retaining Amada build quality and service network
Built-in mode converter provides meaningful beam optimization over basic fixed-beam fiber lasers
i-Optics Sensor and i-Process Monitoring deliver automated condition tracking for process stability
CFC and EZFC cutting technologies improve edge quality and reduce scrap on routine production work
Full compatibility with Amada’s automation ecosystem (ASF tower, shuttle tables, SortMaster)
AMNC 4ie control provides the same user interface and Industry 4.0 connectivity as premium models

Limitations

No VBC or LBC beam technology -- cutting performance on thick stainless and aluminum will not match the ENSIS or VENTIS
6 kW and 8 kW maximum power limits thick-plate capability compared to 12-15 kW models
Positioning accuracy of +/-0.05 mm is looser than the +/-0.03 mm on ENSIS and REGIUS models
Still priced at $350K+ which is higher than budget fiber lasers offering similar raw specifications

Best For

Fabrication shops entering the Amada ecosystem who want Amada quality without flagship pricing Mid-size job shops cutting primarily thin-to-medium mild steel, stainless, and aluminum on standard sheets Operations upgrading from CO2 lasers to fiber who need a proven platform with comprehensive service support Fabricators who want Amada AMNC 4ie control and automation integration at the lowest entry point Shops where the ENSIS and VENTIS are over-specified for the actual material mix and thickness range

Frequently Asked Questions

01 How does the ORSUS compare to the ENSIS and VENTIS?

The ORSUS sits below both. The ENSIS uses Variable Beam Control (VBC) for superior thick-plate performance and goes up to 15 kW. The VENTIS uses Locus Beam Control (LBC) for dross-free stainless/aluminum cutting. The ORSUS uses a simpler mode converter and tops out at 8 kW. The ORSUS costs 30-50% less than equivalent-power ENSIS or VENTIS models.

02 What is the built-in mode converter?

The mode converter adjusts the laser beam profile to optimize cutting characteristics for different materials and thicknesses. Less sophisticated than VBC or LBC, but provides better performance than a fixed-beam fiber laser by adapting the beam mode to cutting conditions.

03 What are CFC and EZFC cutting technologies?

Clean Fast Cut (CFC) optimizes cutting parameters for cleaner edges on mild steel. Easy Fast Cut (EZFC) simplifies setup by automatically selecting optimized parameters. Both are software-driven optimizations that improve productivity without additional hardware.

04 Can the ORSUS be upgraded with automation later?

Yes. The ORSUS 3015 AJe is fully compatible with Amada’s automation ecosystem including ASF-EU tower storage, dual shuttle tables, and SortMaster part sorting. Many shops start standalone and add automation as volumes grow.
