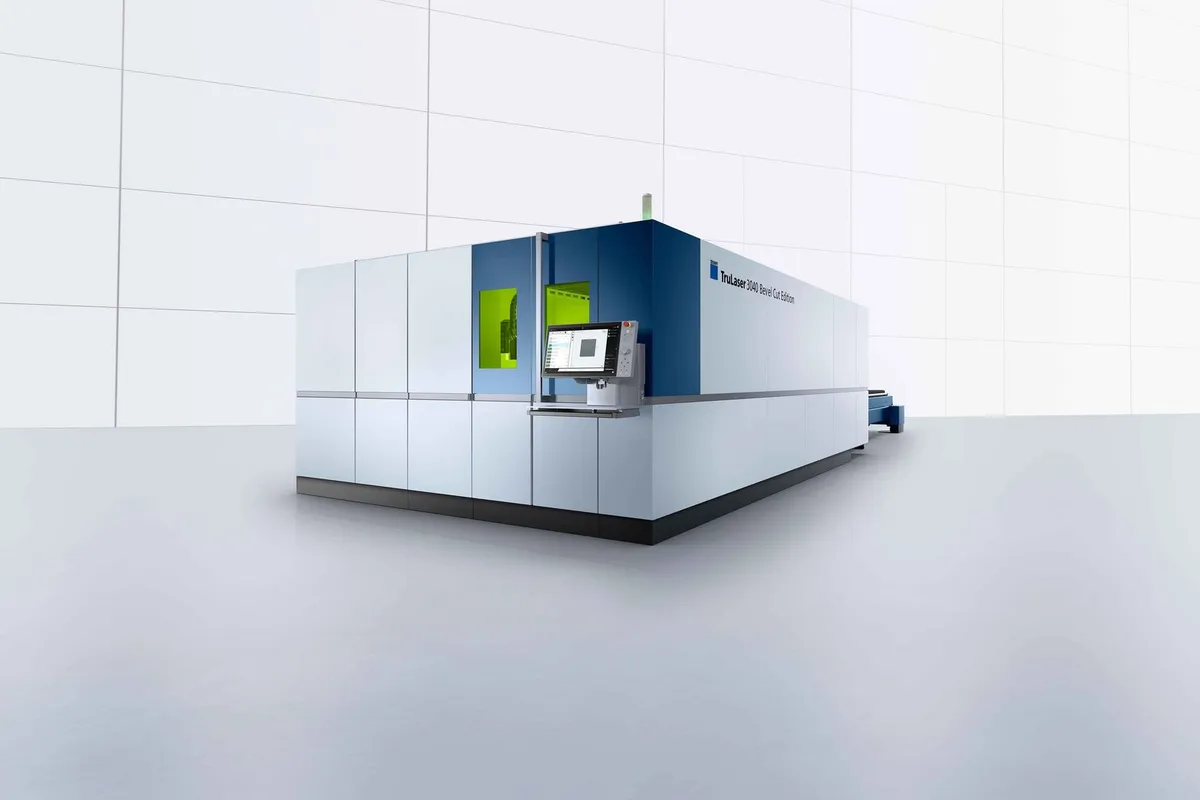

Trumpf TruLaser Series 3000 Bevel Cut Edition

$500,000 - $1,200,000 Updated 2026-03-19

Key Specifications

working area 3040

4,002 x 2,099 mm (158 x 83 in) standard; 3,355 x 1,600 mm at 50 deg bevel

working area 3060

6,067 x 2,576 mm (239 x 101 in) standard; 5,420 x 2,077 mm at 50 deg bevel

working area 3080

8,037 x 2,576 mm (316 x 101 in) standard; 7,470 x 2,077 mm at 50 deg bevel

laser type

TruFiber 12001 (solid-state fiber laser)

laser power

12,000 W

max bevel angle

+/- 50 degrees

Overview

The Trumpf TruLaser Series 3000 Bevel Cut Edition takes the proven TruLaser 3000 platform and adds a tilting cutting head capable of producing bevel cuts at angles up to +/-50 degrees. This is a purpose-built solution for fabricators who need weld-preparation bevels, countersinks, and chamfers cut directly on the laser -- eliminating secondary grinding and machining operations that add cost and lead time to welded assemblies.

The Bevel Cut Edition is available in three working area configurations: the 3040 at 4,002 x 2,099 mm, the 3060 at 6,067 x 2,576 mm, and the 3080 at 8,037 x 2,576 mm standard working areas. When cutting at a 50-degree bevel angle, the effective working area reduces -- the 3040 drops to 3,355 x 1,600 mm, the 3060 to 5,420 x 2,077 mm, and the 3080 to 7,470 x 2,077 mm.

Power comes from a 12 kW TruFiber 12001 solid-state laser. At standard perpendicular cutting, the machine handles 30 mm mild steel (35 mm with thick-sheet package), 40 mm stainless (50 mm with package), 30 mm aluminum, and 12.7 mm copper and brass. At a 50-degree bevel angle, capacity is 15 mm mild steel and 10 mm stainless steel. Maximum simultaneous positioning speed is 170 m/min.

The bevel cutting head is fully integrated into the Trumpf control platform and TruTops Boost CAM software. Bevel angles, start and stop positions, and weld-prep geometry are programmed offline with automatic collision checking. The machine supports all standard TruLaser 3000 technology features including BrightLine fiber, CoolLine, Highspeed Eco, and NanoJoints.

This machine directly addresses the workflow bottleneck in structural steel, pressure vessel, and heavy fabrication shops where weld preparation consumes significant secondary labor. By cutting bevels and V-groove weld preps at the laser, shops eliminate a full downstream operation, improve bevel angle consistency, and reduce part handling between workstations.

Full Specifications

Parameter	Value
Working Area 3040	4,002 x 2,099 mm (158 x 83 in) standard; 3,355 x 1,600 mm at 50 deg bevel
Working Area 3060	6,067 x 2,576 mm (239 x 101 in) standard; 5,420 x 2,077 mm at 50 deg bevel
Working Area 3080	8,037 x 2,576 mm (316 x 101 in) standard; 7,470 x 2,077 mm at 50 deg bevel
Laser Type	TruFiber 12001 (solid-state fiber laser)
Laser Power	12,000 W
Max Bevel Angle	+/- 50 degrees
Max Thickness Mild Steel	30 mm (35 mm with thick-sheet package); 15 mm at 50 deg bevel
Max Thickness Stainless Steel	40 mm (50 mm with thick-sheet package); 10 mm at 50 deg bevel
Max Thickness Aluminum	30 mm (1.18 in)
Max Thickness Copper Brass	12.7 mm (0.5 in)
Max Positioning Speed	170 m/min (simultaneous)
Average Power Input	16 kW
Cutting Technology	BrightLine fiber, CoolLine, Highspeed Eco, NanoJoints, PierceLine
CNC Control	Touchpoint HMI with TruTops Boost CAM
Simultaneous	170 m/min
X Axis	3355 mm
Y Axis	1600 mm
Maximum Laser Power	12000 W
Maximum Sheet Thickness Mild Steel	15 mm
Maximum Mild Steel Sheet Thickness With Cutting Package For Thick Sheets	35 mm
Maximum Sheet Thickness Stainless Steel	10 mm
Maximum Stainless Steel Sheet Thickness With Cutting Package For Thick Sheets	50 mm
Maximum Sheet Thickness Aluminum	30 mm
Maximum Sheet Thickness Copper	12.7 mm
Maximum Sheet Thickness Brass	12.7 mm
Average Power Input In Production Trufiber 12001	16 kW
Versatile Production	Inclining the cutting unit enables chamfers and countersinks as well as angles up to - /+ 50 .
Fewer Work Steps	Save on subsequent processes and therefore costs for the entire assembly thanks to bevel cutting.
Large Variety Of Materials	Process a wide range of mild steel and stainless steel in bevel cut and continue to cut all other materials in vertical cut.
Universal 2d Laser Cutting Machines	In vertical cutting, you can also use all the other functions of the TruLaser Series 3000, such as Highspeed Eco, CoolLine or EdgeLine Bevel.

Specifications sourced from trumpf.com — verified 2026-03-28

Strengths & Limitations

Strengths

Bevel cutting head tilts up to +/-50 degrees, enabling weld-prep bevels, chamfers, and countersinks directly on the laser without secondary operations
12 kW TruFiber laser delivers full TruLaser 3000 series cutting capability for both flat and bevel cuts across mild steel, stainless, and aluminum
Three working area sizes (3040, 3060, 3080) cover standard to oversized sheet formats for structural and heavy fabrication applications
Full compatibility with BrightLine fiber, CoolLine, and Highspeed Eco technologies carries over all the advantages of the standard 3000 series
Eliminates downstream grinding and beveling operations, reducing labor costs, improving bevel angle consistency, and shortening lead times on welded assemblies
TruTops Boost CAM software handles offline bevel programming with automatic collision checking, minimizing setup complexity for angled cuts

Limitations

Working area reduces significantly at steep bevel angles -- the 3040 loses 647 mm in X and 499 mm in Y at 50 degrees, impacting nesting efficiency
Bevel cutting capacity is limited to 15 mm mild steel and 10 mm stainless at 50 degrees, well below the flat-cut maximums
Premium pricing over the standard TruLaser 3000 series for the bevel cutting head adds significant cost for shops that only occasionally need bevel cuts
Bevel cut edge quality at steep angles on thick material may still require secondary finishing for critical weld joints in code-governed applications

Best For

Structural steel fabricators producing weld-prep bevels on plate components for buildings, bridges, and infrastructure projects Pressure vessel and tank manufacturers who need consistent V-groove and J-groove weld preparations on thick plate Heavy fabrication shops looking to eliminate secondary grinding and beveling stations from their workflow Job shops that process a mix of flat and bevel-cut work and need one machine to handle both without sacrificing production capacity Shipbuilding and offshore fabricators cutting beveled plate components for welded hull and structural assemblies

Frequently Asked Questions

01 What bevel angles can the TruLaser Series 3000 Bevel Cut Edition achieve?

The cutting head tilts up to +/-50 degrees from perpendicular, enabling V-grooves, Y-grooves, K-grooves, chamfers, and countersinks. The angle is CNC-controlled and programmable within the TruTops Boost software.

02 How does bevel cutting capacity compare to flat cutting?

At 50 degrees, the machine cuts up to 15 mm mild steel and 10 mm stainless steel, compared to 30 mm and 40 mm respectively for flat perpendicular cuts. For moderate bevel angles (20-30 degrees), capacity is closer to flat-cut maximums.

03 Does the bevel cutting head affect flat-cut performance?

No. When the head is at 0 degrees, the machine performs identically to a standard TruLaser 3000 series with the same 170 m/min positioning speed and maximum material thicknesses.

04 What is the difference between this and the standard TruLaser 3000 Bevel Cut?

The TruLaser Series 3000 Bevel Cut Edition is the current-generation designation encompassing three machine sizes (3040, 3060, 3080) with the tilting cutting head as a standard feature.
