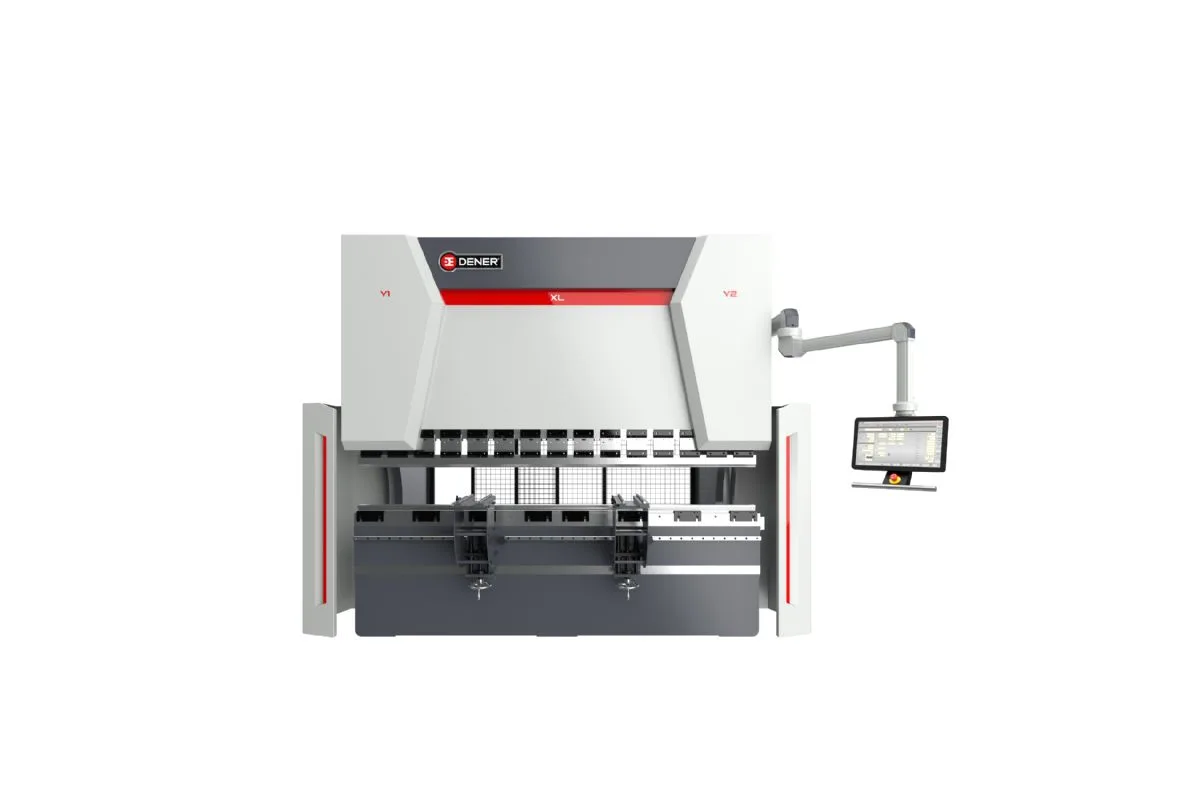

Dener XL 40220
Image: en.dener.com, Dener
Key Specifications
bending length
bending capacity
approach speed
bending speed
return speed
stroke
How much does the Dener XL 40220 cost?
Price estimate
We do not have a price for the Dener XL 40220 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Dener XL 40220 is a 220 ton hydraulic press brake with a 4,050 mm (159.4 in) bending length. Among the four Smart XL models on this bed it is the general-purpose choice, with enough force for medium sheet across the full length without the mass of the two heavier frames above it.
Its numbers sit very close to the XL 40175. Weight is 14,300 kg (31,526 lb), overall length 4,740 mm, main motor 22 kW (29.5 hp), oil tank 300 lt. The stroke of 350 mm and the daylight of 600 mm are unchanged as well. Approach speed is 140 mm/sec, and the ram returns at 130 mm/sec.
A four-metre bed is often used as two machines in one. With 3,550 mm between the side frames and a 450 mm throat, an operator can stage a punch set at each end and bend short parts in sequence without a tool change. Dener's optional backgauges with independent Z1 and Z2 fingers suit that way of working; the standard gauge has X and R.
Floor space: 2,290 mm wide with the front supports fitted, 1,730 mm without. Maximum height is 3,050 mm.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Length | 4,050 mm (159.4 in) |
| Bending Capacity | 220 ton |
| Approach Speed | 140 mm/sec |
| Bending Speed | 10 mm/sec |
| Return Speed | 130 mm/sec |
| Stroke | 350 mm (13.8 in) |
| Daylight | 600 mm (23.6 in) |
| Throat Depth | 450 mm (17.7 in) |
| Distance Between Side Frames | 3,550 mm (139.8 in) |
| Machine Length | 4,740 mm (186.6 in) |
| Machine Width | 2,290 mm (90.2 in) |
| Width Without Front Support | 1,730 mm (68.1 in) |
| Maximum Height | 3,050 mm (120.1 in) |
| Main Motor Power | 22 kW (29.5 hp) |
| Oil Tank | 300 lt |
| Machine Weight | 14,300 kg (31,526 lb) |
Specifications sourced from en.dener.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 220 ton on a 4,050 mm bed at 14,300 kg (31,526 lb)
- 3,550 mm between the side frames for staged tooling or wide panels
- 350 mm stroke with 600 mm daylight
- Same 22 kW (29.5 hp) motor and 300 lt tank as the lighter four-metre model
Limitations
- Approach speed of 140 mm/sec
- Daylight and stroke are smaller than on the XL 40320, which has 650 mm and 400 mm
- Only X and R backgauge axes as standard
Best For
Frequently Asked Questions
01
220 ton over 4,050 mm (159.4 in) of bending length. Throat depth is 450 mm and the side frames stand 3,550 mm apart.
02
The XL 40320 has 320 ton, a 400 mm stroke, 650 mm daylight, a 30 kW motor and weighs 17,500 kg. The XL 40220 has 220 ton, a 350 mm stroke, 600 mm daylight, a 22 kW motor and weighs 14,300 kg, and its ram is faster.
03
The specification table lists 140 mm/sec for approach, 10 mm/sec for bending and 130 mm/sec for return. Those apply over a stroke of 350 mm.
04
Length 4,740 mm, width 2,290 mm including front supports (1,730 mm without them) and maximum height 3,050 mm. The weight to plan the foundation for is 14,300 kg (31,526 lb).
