LVD PPEC 170/40

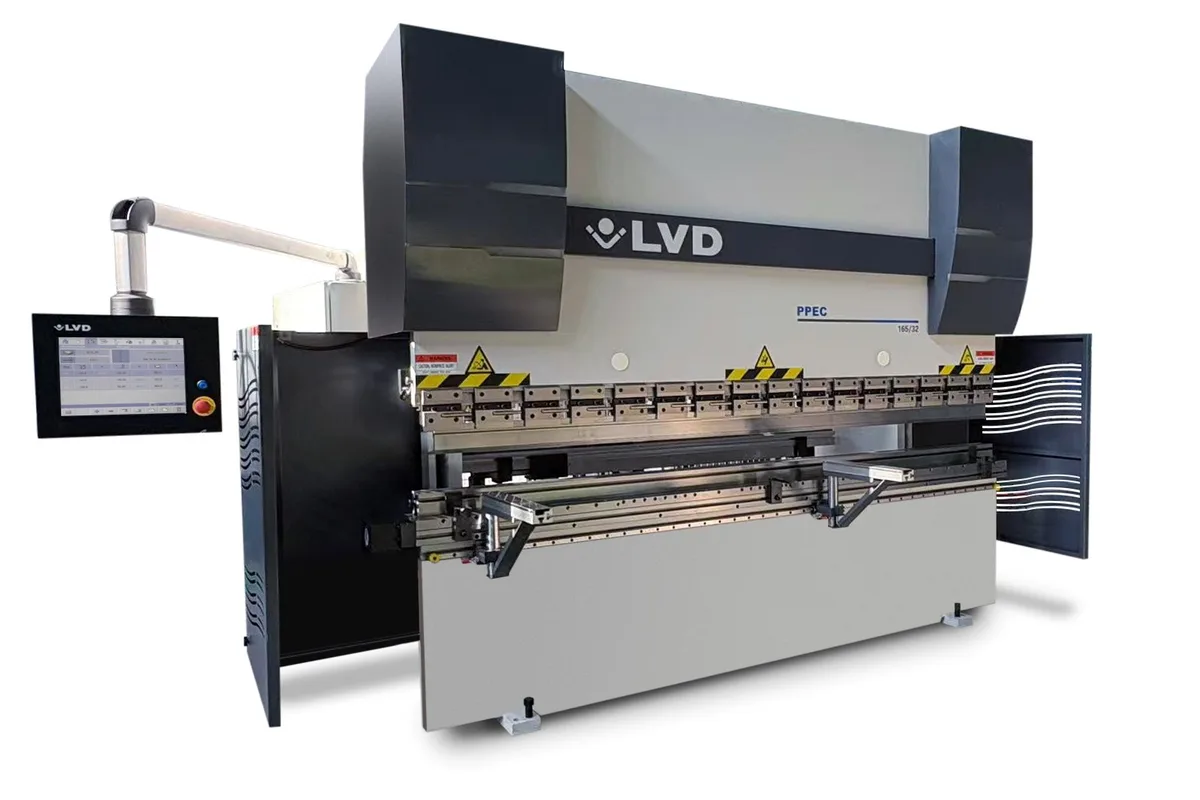

Image: lvdgroup.com, LVD
Key Specifications
pressing force
bending length
width between columns
ram stroke
open height
throat depth
How much does the LVD PPEC 170/40 cost?
Price estimate
We do not have a price for the LVD PPEC 170/40 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The LVD PPEC 170/40 is the first four-metre PPEC, with a 4,000 mm (157.5 in) working length and 1,700 kN. LVD sells the PPEC in non-CE markets only.
It is a lengthened PPEC 170/32, and LVD's table says so row by row. Stroke stays at 220 mm (8.7 in), open height at 460 mm (18.1 in), throat at 410 mm (16.1 in), table width at 100 mm (3.9 in). Speeds are 200 mm/s on approach, 13 mm/s in the bend and 180 mm/s on return. Tank volume is 350 L and the servo motor is listed at 13.2/15 kW.
The frame grows by a metre. There are 3,150 mm (124.0 in) between the uprights, and the machine is 4,500 mm (177.2 in) long. Width and height remain 1,800 mm (70.9 in) and 2,650 mm (104.3 in).
On a bed of this length the series' standard features start to matter. A slim table 100 mm wide over four metres relies on crowning to stay parallel to the ram under load, and LVD says it designs the crowning for every PPEC. The front sheet support arms hold long blanks level, which on a four-metre sheet is the difference between one operator and two.
If long parts are also heavy, programmable sheet followers are on the option list. For more force at this length the series continues with the PPEC 220/40.
Full Specifications
| Parameter | Value |
|---|---|
| Pressing Force | 1,700 kN |
| Bending Length | 4,000 mm (157.5 in) |
| Width Between Columns | 3,150 mm (124.0 in) |
| Ram Stroke | 220 mm (8.7 in) |
| Open Height | 460 mm (18.1 in) |
| Throat Depth | 410 mm (16.1 in) |
| Table Width | 100 mm (3.9 in) |
| Approach Speed | 200 mm/s |
| Bending Speed | 13 mm/s |
| Return Speed | 180 mm/s |
| Servo Motor Power | 13.2/15 kW |
| Oil Tank Capacity | 350 L |
| Machine Length | 4,500 mm (177.2 in) |
| Machine Width | 1,800 mm (70.9 in) |
| Machine Height | 2,650 mm (104.3 in) |
| Series Type | PPEC-5 |
| Controlled Axes | Y1-Y2-X-V-R |
Specifications sourced from lvdgroup.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,000 mm (157.5 in) working length with 200 mm/s approach
- 3,150 mm (124.0 in) between uprights and a 410 mm (16.1 in) throat
- Height of only 2,650 mm (104.3 in)
- Crowning designed for the machine
- Front sheet support arms as standard
Limitations
- Sold outside CE markets only
- 100 mm (3.9 in) table on a four-metre bed
- 1,700 kN is light at full length
- Open height of 460 mm (18.1 in)
Best For
Frequently Asked Questions
01
The PPEC 170/32 has a 3,200 mm bed, 2,600 mm between uprights and a machine length of 3,500 mm. This model has a 4,000 mm bed, 3,150 mm between uprights and a length of 4,500 mm. Everything else in the table is the same.
02
2,650 mm (104.3 in). The PPEC 220/40, the stronger four-metre model, is 3,200 mm high, so this machine fits under a lower roof or crane.
03
LVD describes them as standard arms that keep the sheet level and hold and guide the material as it bends, for better results and greater operator safety.
04
Y1-Y2-X-V-R, the PPEC-5 set in LVD's table. LVD also describes the PPEC backgauge as a multi-axis system for high precision and flexibility.
