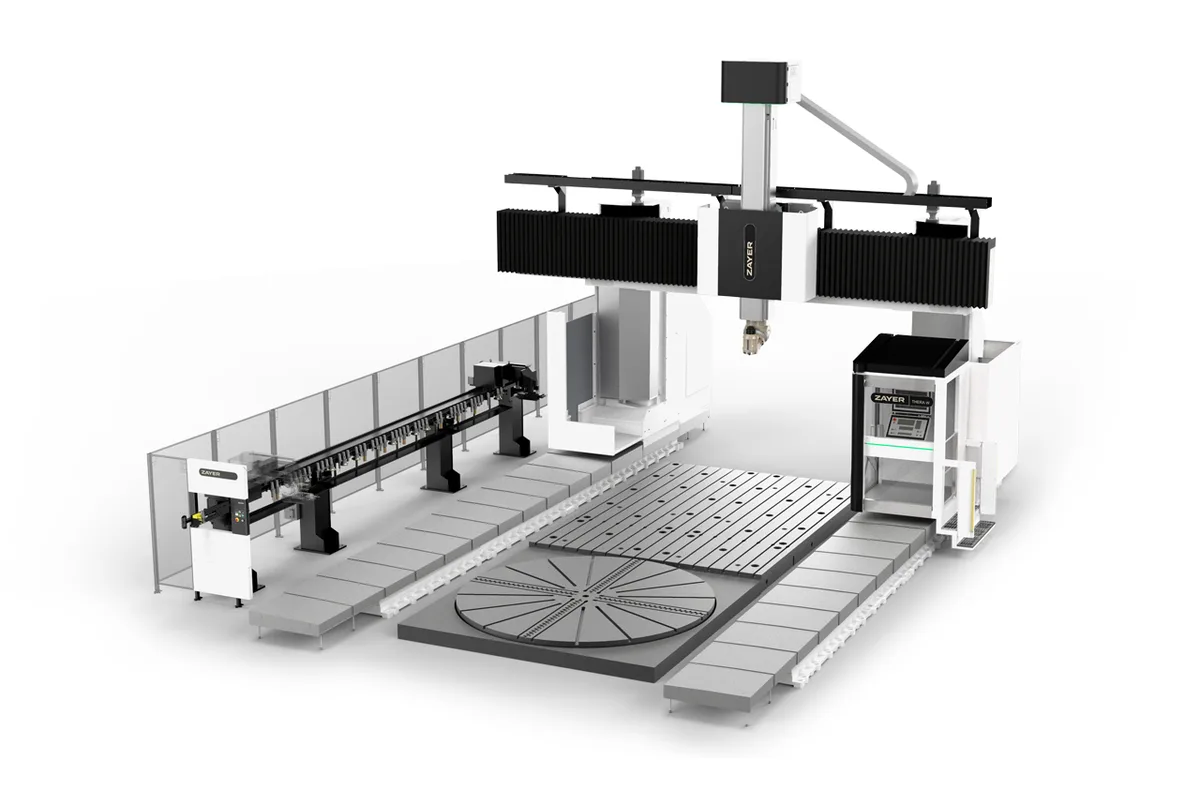

Zayer THERA W
Image: zayer.com, Zayer
Key Specifications
Tool Capacity
Accuracy
Repeatability
table length
table width
distance between columns
How much does the Zayer THERA W cost?
Price estimate
We do not have a price for the Zayer THERA W that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Zayer THERA W adds a moving cross beam to the THERA gantry. The beam travels 1,100 mm (43.3 in), or 1,350 mm (53.1 in) as an option, and Zayer says it can work as a controlled axis or as a locked axis. Its guides are mounted at a 90º angle, which the maker credits with increasing rigidity and distributing loads.
The effect shows in one row. Maximum distance from table to spindle nose is 2,450 mm (96.5 in), or 2,700 mm (106.3 in) optional, where the THERA lists 1,740 mm (68.5 in). Parts that would not fit under the fixed-beam machine fit here, and low parts can still be cut with the beam down and the ram short.
The rest of the envelope is unchanged. X travel runs from 3,000 and 4,000 mm to 20,000 mm (787.4 in) and beyond. Y is 3,750 mm (147.6 in), with options to 5,750 mm (226.4 in). Z is 1,250 mm (49.2 in), with options to 2,000 mm (78.7 in). The fixed table is rated at 15,000 kg/m². Rapid feed is 30,000 mm/min (1,181 ipm) along the bed and 50,000 mm/min (1,969 ipm) on the cross and vertical axes, and positioning accuracy and repeatability are 0.008/4,000 mm and 0.005/4,000 mm.
Power is 43 kW (57.7 hp), 60 kW (80.5 hp) optional, with a 6,000 rpm spindle head. Change of heads is standard. Eight heads are listed, two fewer than on the THERA: the plain direct outlet head and both L shaped heads do not appear in the THERA W accessory table, while a direct outlet head with electrospindle does. The magazine holds 30 tools, with options to 120 and beyond, and pendulum work and an operator's platform are options.
Full Specifications
| Parameter | Value |
|---|---|
| Table Length | 3,500 - 4,500 ... - 20,500 ... mm (137.8 - 177.2 ... - 807.1 ... in) |
| Table Width | 2,000 mm (78.7 in); 3,000 - 4,000 mm (118.1 - 157.5 in) optional |
| Distance Between Columns | 3,000 mm (118.1 in); 3,500 - 4,000 - 4,500 - 5,000 mm (137.8 - 157.5 - 177.2 - 196.9 in) optional |
| X Axis Travel | 3,000 - 4,000 ... - 20,000 ... mm (118.1 - 157.5 ... - 787.4 ... in) |
| Y Axis Travel | 3,750 mm (147.6 in); 4,250 - 4,750 - 5,250 - 5,750 mm (167.3 - 187.0 - 206.7 - 226.4 in) optional |
| Z Axis Travel | 1,250 mm (49.2 in); 1,500 - 1,750 - 2,000 mm (59.1 - 68.9 - 78.7 in) optional |
| Max Distance Table to Spindle Nose | 2,450 mm (96.5 in); 2,700 mm (106.3 in) optional |
| W Axis Travel | 1,100 mm (43.3 in); 1,350 mm (53.1 in) optional |
| Rapid Traverse Longitudinal Axis | 30,000 mm/min (1,181 ipm) |
| Rapid Traverse Cross and Vertical Axis | 50,000 mm/min (1,969 ipm) |
| Cutting Feed Rate Longitudinal Axis | 25,000 mm/min (984 ipm) |
| Cutting Feed Rate Cross and Vertical Axis | 45,000 mm/min (1,772 ipm) |
| Longitudinal Axis Drive | rack and double motor and pinion |
| Cross Axis Drive | rack and double motor and pinion |
| Vertical Axis Drive | 2 ball screw |
| Power | 43 kW (57.7 hp); 60 kW (80.5 hp) optional |
| Spindle Speed | 6,000 rpm |
| Positioning Accuracy | 0.008/4,000 mm |
| Repeatability | 0.005/4,000 mm |
| Max Table Load | 15,000 kg/m² |
| Tool Capacity | 30; 40 - 60 - 80 - 100 - 120 ... optional |
Specifications sourced from zayer.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Moving cross beam with 1,100 mm (43.3 in) of travel, 1,350 mm (53.1 in) optional
- Up to 2,450 mm (96.5 in) from table to spindle nose, 2,700 mm (106.3 in) optional
- The cross beam can work as a controlled axis or be locked
- 50,000 mm/min (1,969 ipm) rapid feed on the cross and vertical axes
- Change of heads is standard
- Cross travel options to 5,750 mm (226.4 in)
Limitations
- L shaped heads and the plain direct outlet head are not in the THERA W accessory table
- Spindle head speed is 6,000 rpm unless an electrospindle head is fitted
- Longitudinal rapid feed is 30,000 mm/min (1,181 ipm)
- No machine weight is published; the THERA without the moving beam is listed at about 30,000 to 150,000 kg (66,138 to 330,688 lb)
Best For
Frequently Asked Questions
01
1,100 mm (43.3 in) as standard and 1,350 mm (53.1 in) as an option. Zayer describes the beam as able to work as a controlled axis or as a locked axis, with guides mounted at a 90º angle to increase rigidity and distribute loads.
02
The maximum distance from table to spindle nose is 2,450 mm (96.5 in), with 2,700 mm (106.3 in) optional. Vertical ram travel is 1,250 mm (49.2 in), with 1,500, 1,750 or 2,000 mm (59.1, 68.9 or 78.7 in) optional.
03
The moving cross beam and the clearance it brings. The THERA has a fixed beam and lists 1,740 mm (68.5 in) from table to spindle nose. Travels in X, Y and Z, the feeds, the 43 kW (57.7 hp) rating and the 15,000 kg/m² table load are the same in both tables. The head lists differ slightly.
04
Eight are listed. The 45º head is standard. Optional are a continuous-rotation 45º head, a 30º head, two 30º heads with 33 kW electrospindles, a 40º head with a 42 kW, 15,000 rpm electrospindle, and direct outlet heads with reduction or with electrospindle.
05
X travel starts at 3,000 and 4,000 mm and continues to 20,000 mm (787.4 in) and beyond. Cross travel is 3,750 mm (147.6 in), with 4,250, 4,750, 5,250 or 5,750 mm (167.3, 187.0, 206.7 or 226.4 in) optional. The table is 2,000 mm (78.7 in) wide, or 3,000 or 4,000 mm (118.1 or 157.5 in).
