Zayer ARION

Q: How much does the Zayer ARION cost?

The price estimate for the Zayer ARION is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/zayer-arion#price; the request is passed to Zayer or an authorised dealer.

Specs verified 2026-10-04 · zayer.com Updated 2026-10-04

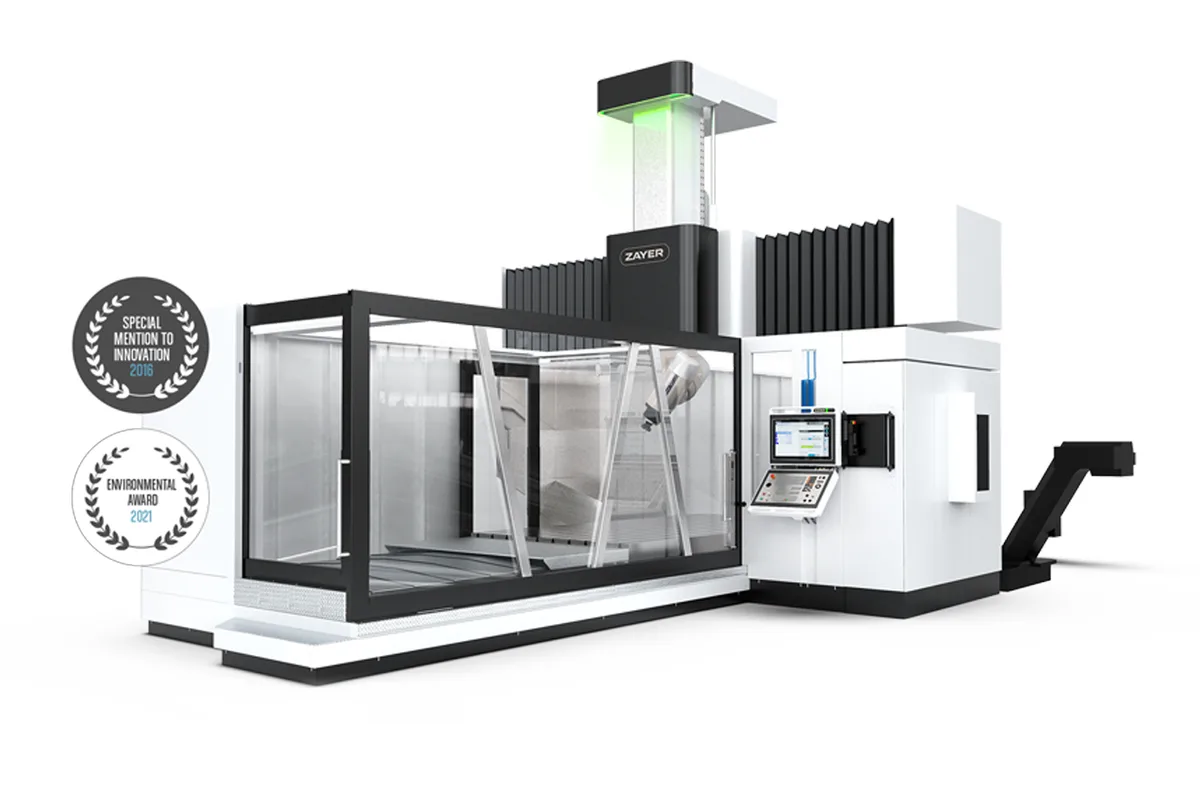

Image: zayer.com, Zayer

Key Specifications

Rapid Traverse

30,000 mm/min (1,181 ipm)

Accuracy

0.008/4,000 mm

Repeatability

0.005/4,000 mm

table length

3,000 - 4,000 mm (118.1 - 157.5 in)

table width

1,600 mm (63.0 in); 2,000 mm (78.7 in) optional

distance between columns

2,000 mm (78.7 in); 2,500 mm (98.4 in) optional

How much does the Zayer ARION cost?

Price estimate

Uncertain

We do not have a price for the Zayer ARION that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Zayer ARION is the smallest of Zayer's bridge type machines: a fixed cross beam over a moving table, with 3,000 or 4,000 mm (118.1 or 157.5 in) of X travel, 2,600 mm (102.4 in) of Y and 1,200 mm (47.2 in) of Z. Zayer positions it for speed, and it is offered with two head families that turn it into two different machines.

With a high torque head the spindle runs at 6,000 rpm, or 8,000 rpm as an option, on 33 kW (44.3 hp), with 43 or 61 kW (57.7 or 81.8 hp) optional. With a high speed head the standard is 18,000 rpm on 33 kW (44.3 hp), and the options reach 30,000 rpm and 123 kW (164.9 hp). The steps between are 15,000 and 24,000 rpm, and 56 and 63 kW (75.1 and 84.5 hp).

All three linear axes are driven by ball screws, which sets the ARION apart from the larger ARES and TEBAS, where the longitudinal axis is a rack and pinion. Rapid feed is 30,000 mm/min (1,181 ipm) and working feed 25,000 mm/min (984 ipm). The bed carries three linear guides; Zayer says the third, central guide is there to support heavy pieces. Table load is 15,000 kg (33,069 lb) on a table 1,600 mm (63.0 in) wide, or 2,000 mm (78.7 in) as an option.

Head family also changes the daylight. Maximum distance from table to spindle nose is 1,440 mm (56.7 in) with a high torque head and 1,240 mm (48.8 in) with a high speed head; the optional figures are 1,740 mm (68.5 in) and 1,540 mm (60.6 in). Change of heads, a rotary table and a complete enclosure with ceiling are options. Machine weight is about 35,000 to 50,000 kg (77,160 to 110,229 lb). The page lists no tool magazine capacity for this model.

Full Specifications

Parameter	Value
Table Length	3,000 - 4,000 mm (118.1 - 157.5 in)
Table Width	1,600 mm (63.0 in); 2,000 mm (78.7 in) optional
Distance Between Columns	2,000 mm (78.7 in); 2,500 mm (98.4 in) optional
X Axis Travel	3,000 - 4,000 mm (118.1 - 157.5 in)
Y Axis Travel	2,600 mm (102.4 in); 3,100 mm (122.0 in) optional
Z Axis Travel	1,200 mm (47.2 in); 1,500 mm (59.1 in) optional
Max Distance Table to Spindle Nose	1,440 mm (56.7 in); 1,740 mm (68.5 in) optional (high torque) / 1,240 mm (48.8 in); 1,540 mm (60.6 in) optional (high speed)
Rapid Traverse Rate	30,000 mm/min (1,181 ipm)
Cutting Feed Rate	25,000 mm/min (984 ipm)
Longitudinal Axis Drive	Ball screw
Cross Axis Drive	ball screw
Vertical Axis Drive	ball screw
Power	33 kW (44.3 hp); 43 - 61 kW (57.7 - 81.8 hp) optional for high torque / 33 kW (44.3 hp); 56 - 63 - 123 kW (75.1 - 84.5 - 164.9 hp) optional for high speed
Spindle Speed	6,000 rpm; 8,000 rpm optional for high torque / 18,000 rpm; 15,000 - 24,000 - 30,000 rpm optional for high speed
Positioning Accuracy	0.008/4,000 mm
Repeatability	0.005/4,000 mm
Max Table Load	15,000 kg (33,069 lb)
Machine Weight	approx. 35,000 - 50,000 kg (77,160 - 110,229 lb)

Specifications sourced from zayer.com — verified 2026-10-04

Strengths & Limitations

Strengths

High speed head family with 18,000 rpm standard and options to 30,000 rpm
Power options up to 123 kW (164.9 hp) on the high speed side
Ball screw drives on the longitudinal, cross and vertical axes
Three linear guides in the bed, the central one added to support heavy pieces
15,000 kg (33,069 lb) table load
TWIST head with electrospindle is a listed option

Limitations

X travel stops at 4,000 mm (157.5 in); the ARES and TEBAS go to 6,000 mm (236.2 in)
No moving cross beam: the ARES adds a 900 mm (35.4 in) W axis
Rapid feed is 30,000 mm/min (1,181 ipm), where the TEBAS lists up to 50,000 mm/min (1,969 ipm)
Tool magazine capacity is not published on Zayer's page for this model
Change of heads, rotary table and enclosure with ceiling are options

Best For

High speed finishing with electrospindle heads up to 30,000 rpm Aeronautic parts, the application Zayer lists for the ARION Workpieces up to 15,000 kg (33,069 lb) within 4,000 mm (157.5 in) of X Shops that want one bridge machine configurable for either torque or speed

Frequently Asked Questions

01 What is the difference between the high torque and high speed ARION?

They are two head families. High torque: 6,000 rpm, optionally 8,000 rpm, with a 45º head as standard. High speed: a 30º head with a 33 kW, 18,000 rpm electrospindle as standard, with options of 15,000, 24,000 or 30,000 rpm. The distance from table to spindle nose also differs, 1,440 mm (56.7 in) against 1,240 mm (48.8 in).

02 What are the travels of the Zayer ARION?

X is 3,000 or 4,000 mm (118.1 or 157.5 in). Y is 2,600 mm (102.4 in), or 3,100 mm (122.0 in) as an option. Z is 1,200 mm (47.2 in), or 1,500 mm (59.1 in) as an option. The distance between columns is 2,000 mm (78.7 in), with 2,500 mm (98.4 in) optional.

03 How much can the ARION table carry?

15,000 kg (33,069 lb). The table is 3,000 or 4,000 mm long and 1,600 mm (63.0 in) wide, with a 2,000 mm (78.7 in) width optional. Zayer adds a third, central linear guide in the bed to support heavy pieces.

04 How does the ARION compare with the ARES?

The ARION has a fixed cross beam and ball screws on every axis, and stops at 4,000 mm (157.5 in) of X. The ARES starts there, runs to 6,000 mm (236.2 in), carries 20,000 kg (44,092 lb) and adds a moving cross beam with 900 mm (35.4 in) of displacement.

05 Which options does Zayer list for the ARION?

Change of heads, a rotary table and a complete enclosure with ceiling are optional. Optional heads are a 45º head with continuous rotation and a 30º head on the high torque side, and a 40º head with a 42 kW, 15,000 rpm electrospindle and a TWIST head on the high speed side. Chip conveyor and coolant tank are standard.
