Zayer AETOS

Q: How much does the Zayer AETOS cost?

The price estimate for the Zayer AETOS is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/zayer-aetos#price; the request is passed to Zayer or an authorised dealer.

Specs verified 2026-10-04 · zayer.com Updated 2026-10-04

Image: zayer.com, Zayer

Key Specifications

Tool Capacity

30; 20 - 40 - 60 optional

Rapid Traverse

up to 50,000 mm/min (1,969 ipm)

Accuracy

0.008/4,000 mm

Repeatability

0.005/4,000 mm

table length

2,500 - 3,500 - 4,500 ... mm (98.4 - 137.8 - 177.2 ... in)

table width

2,000 mm (78.7 in); 2,500 - 3,000 - 3,500 - 4,000 mm (98.4 - 118.1 - 137.8 - 157.5 in) optional

How much does the Zayer AETOS cost?

Price estimate

Uncertain

We do not have a price for the Zayer AETOS that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

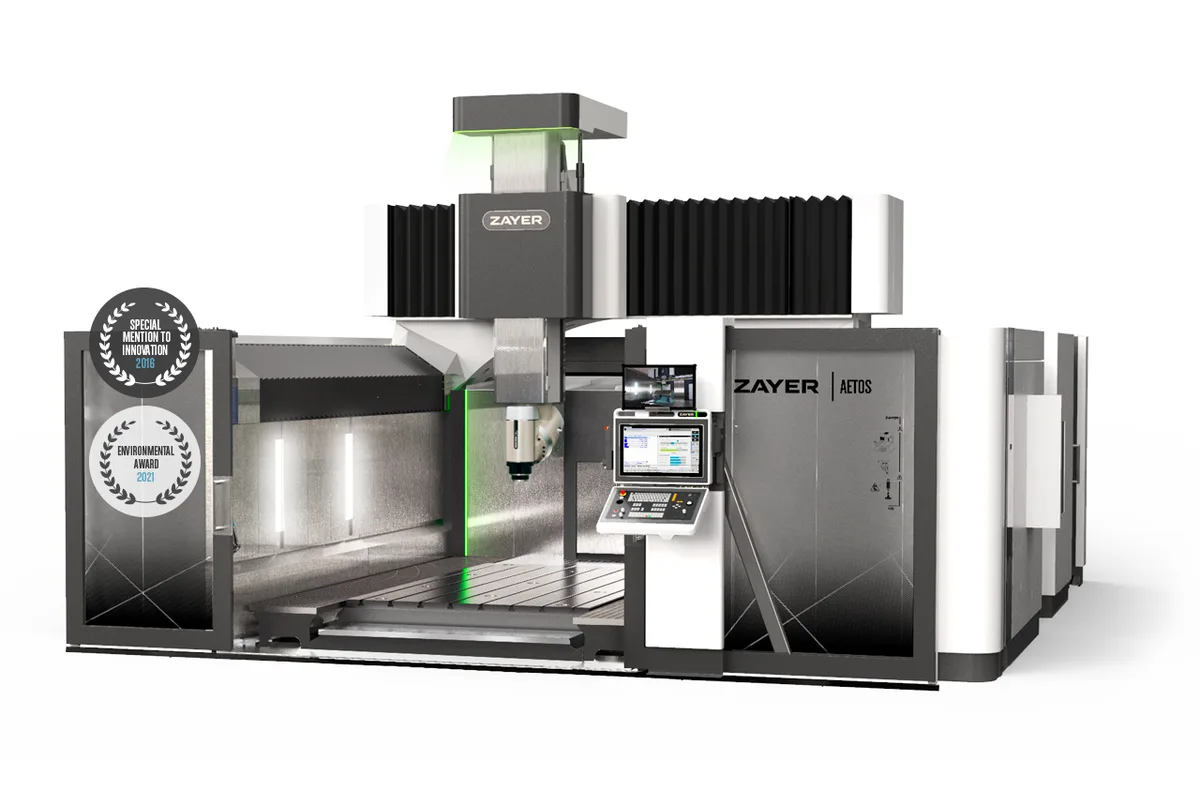

The Zayer AETOS is a gantry milling machine aimed at moulds and dies: a moving bridge over a fixed table, with every structural part in cast iron. Zayer says the structure was calculated using finite elements and is thermally symmetrical, and ties both to the quality of finish.

It is the narrower kind of Zayer gantry. Cross travel starts at 2,000 mm (78.7 in) and is offered at 2,500, 3,000, 3,500 or 4,000 mm (98.4, 118.1, 137.8 or 157.5 in), where the ALTEA starts at 3,350 mm (131.9 in). X travel is listed as 3,000, 4,000 or 5,000 mm (118.1, 157.5 or 196.9 in) and upward, on tables from 2,500 mm (98.4 in), and Z is 1,200 mm (47.2 in), or 1,500 mm (59.1 in) as an option. The table is rated per area, 15,000 kg/m².

Rapid feed is up to 50,000 mm/min (1,969 ipm) and working feed up to 45,000 mm/min (1,772 ipm). Cross and vertical axes are ball screws. The bridge is shaped as an arch, which according to Zayer distributes the forces onto the column guides, placed at 90º.

Two head families are listed. High torque: 6,000 rpm, 30 kW (40.2 hp), 43 kW (57.7 hp) optional, with the 45º head, 360x1º and 360x1º, as standard. High speed: 18,000 rpm and 33 kW (44.3 hp), for which the accessory table names a 40º head with a 42 kW, 15,000 rpm electrospindle as a possible head but marks no standard one. The distance from table to spindle nose is 1,440 mm (56.7 in) with high torque heads and 1,550 mm (61.0 in) with high speed heads. The magazine holds 30 tools, with 20, 40 or 60 listed as alternatives.

Full Specifications

Parameter	Value
Table Length	2,500 - 3,500 - 4,500 ... mm (98.4 - 137.8 - 177.2 ... in)
Table Width	2,000 mm (78.7 in); 2,500 - 3,000 - 3,500 - 4,000 mm (98.4 - 118.1 - 137.8 - 157.5 in) optional
Distance Between Columns	3,200 mm (126.0 in); 3,700 - 4,200 - 4,700 - 5,200 mm (145.7 - 165.4 - 185.0 - 204.7 in) optional
X Axis Travel	3,000 - 4,000 - 5,000 ... mm (118.1 - 157.5 - 196.9 ... in)
Y Axis Travel	2,000 mm (78.7 in); 2,500 - 3,000 - 3,500 - 4,000 mm (98.4 - 118.1 - 137.8 - 157.5 in) optional
Z Axis Travel	1,200 mm (47.2 in); 1,500 mm (59.1 in) optional
Max Distance Table to Spindle Nose	1,440 mm (56.7 in) (high torque) / 1,550 mm (61.0 in) (high speed)
Rapid Traverse Rate	up to 50,000 mm/min (1,969 ipm)
Cutting Feed Rate	up to 45,000 mm/min (1,772 ipm)
Cross Axis Drive	ball screw
Vertical Axis Drive	ball screw
Power	30 kW (40.2 hp); 43 kW (57.7 hp) optional (high torque) / 33 kW (44.3 hp) (high speed)
Spindle Speed	6,000 rpm (high torque) / 18,000 rpm (high speed)
Positioning Accuracy	0.008/4,000 mm
Repeatability	0.005/4,000 mm
Max Table Load	15,000 kg/m²
Tool Capacity	30; 20 - 40 - 60 optional

Specifications sourced from zayer.com — verified 2026-10-04

Strengths & Limitations

Strengths

All structural parts in cast iron, thermally symmetrical and calculated using finite elements
Rapid feed up to 50,000 mm/min (1,969 ipm)
Cross travel from 2,000 mm (78.7 in) to 4,000 mm (157.5 in) in five steps
High speed version at 18,000 rpm and 33 kW (44.3 hp)
Arch-shaped bridge that spreads forces onto column guides placed at 90º

Limitations

Vertical travel is 1,200 mm (47.2 in), or 1,500 mm (59.1 in) as an option, less than the NEOS offers
High torque spindle head speed is 6,000 rpm with no faster option listed
Tool magazine options stop at 60 tools
No machine weight is published, and change of heads is not in the accessory table

Best For

Mould and die finishing, the use Zayer names for the AETOS Parts up to 4,000 mm (157.5 in) wide on a fixed table Surface work that benefits from feeds up to 45,000 mm/min (1,772 ipm) General machining, also listed by Zayer as an application

Frequently Asked Questions

01 What is the Zayer AETOS designed for?

Moulds and dies. Zayer presents it as a machine for the mold and die industry and stresses finish quality: all structural parts are cast iron, calculated using finite elements and thermally symmetrical, for thermal and geometric stability during milling.

02 What are the travels of the AETOS?

X travel is 3,000, 4,000 or 5,000 mm (118.1, 157.5 or 196.9 in), with longer versions indicated. Y is 2,000 mm (78.7 in), with 2,500, 3,000, 3,500 or 4,000 mm (98.4, 118.1, 137.8 or 157.5 in) optional. Z is 1,200 mm (47.2 in), or 1,500 mm (59.1 in) optional.

03 How fast is the AETOS?

Rapid feed is listed as up to 50,000 mm/min (1,969 ipm) and working feed as up to 45,000 mm/min (1,772 ipm). Spindle head speed is 6,000 rpm for high torque heads and 18,000 rpm for high speed heads.

04 How does the AETOS differ from the NEOS?

Both are fixed-table gantries that start at 2,000 mm (78.7 in) of cross travel and reach 50,000 mm/min (1,969 ipm). The NEOS is the higher-power machine at 43 kW (57.7 hp), with Z options to 2,000 mm (78.7 in) and X to 20,000 mm (787.4 in). The AETOS offers the 18,000 rpm high speed head family in its specification table.

05 How many tools does the AETOS hold?

The tool magazine row reads 30, with 20, 40 and 60 as the optional sizes. Chip conveyor and coolant tank are standard equipment.
