Goodway GTZ-2600

Q: How much does the Goodway GTZ-2600 cost?

The price estimate for the Goodway GTZ-2600 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/goodway-gtz-2600#price; the request is passed to Goodway or an authorised dealer.

Specs verified 2026-10-04 · goodwaycnc.com Updated 2026-10-04

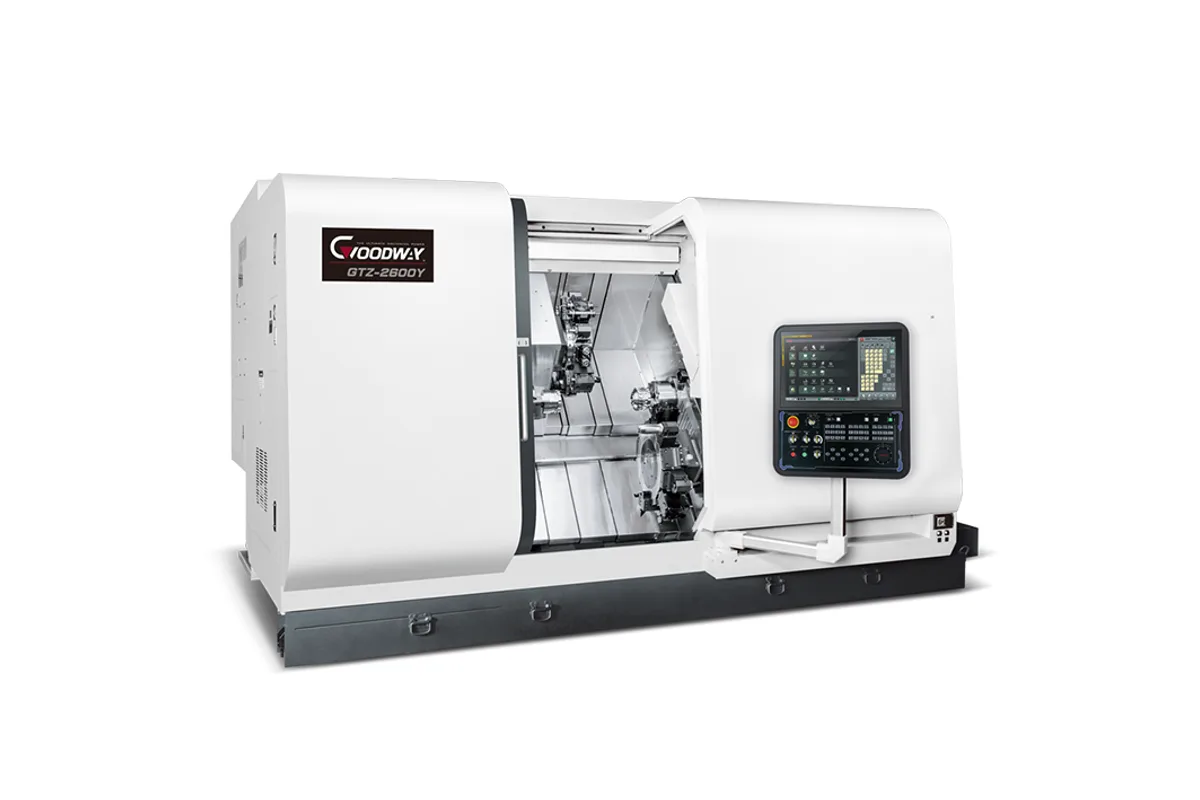

Goodway GTZ-2600 series multi-turret turning centers (GTZ-2600)

Image: goodwaycnc.com, Goodway

Key Specifications

Spindle Power

11 kW (14.8 hp) (cont.)

Max Turn Length

590 mm (23.2 in) / 600 mm (23.6 in) (16 station turret)

max swing diameter

Ø270 mm (10.6 in)

max turning diameter

Ø250 mm (9.8 in)

chuck size

8" (big-bore)

bar capacity

Ø65 mm (2.6 in)

How much does the Goodway GTZ-2600 cost?

Price estimate

Uncertain

We do not have a price for the Goodway GTZ-2600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Larger sibling of the GTZ-1500, the Goodway GTZ-2600 is a twin-spindle lathe with upper and lower turrets, 8 in big-bore chucks and Ø65 mm (2.6 in) bar capacity. Its two spindles are identical, each rated 11 kW (14.8 hp) continuous and 15 kW (20.1 hp) for 30 min. over a 40 ~ 4,000 rpm range.

Goodway's text adds a detail the table leaves out: the spindle motor is a 15 kW wide-range type that produces up to 430 Nm. For a Ø65 mm bar machine that is a lot of torque, and it suits steel parts that need heavy roughing before they are transferred.

Upper and lower turrets cover almost the same ground. X1 travel is 195 mm (7.7 in) and X2 travel 210 mm (8.3 in), while Z1 and Z2 are both 620 mm (24.4 in). Maximum turning diameter is Ø250 mm (9.8 in), swing Ø270 mm (10.6 in). Turning length is 590 mm (23.2 in), or 600 mm (23.6 in) with the 16-station turret.

Turret choice is wide and somewhat confusing in the table, which prints several columns under one model name. Plain turrets come as 12 + 12 or 16 + 16 stations. Live tooling turrets are listed as 12 + 12, 16 + 16 or 24 + 24 stations; the 24-station disks drive 12 of their positions. Live tool speed is 6,000 rpm according to the feature list. One limit to plan around: only the upper turret can have the Y-axis, which travels ±50 mm (±2.0 in). The bed is a one-piece 45° slant casting with linear guideways.

Full Specifications

Parameter	Value
Max Swing Diameter	Ø270 mm (10.6 in)
Max Turning Diameter	Ø250 mm (9.8 in)
Max Turning Length	590 mm (23.2 in) / 600 mm (23.6 in) (16 station turret)
Chuck Size	8" (big-bore)
Bar Capacity	Ø65 mm (2.6 in)
Spindle Motor Power	11 kW (14.8 hp) (cont.)
Spindle Power 30 Min	15 kW (20.1 hp) (30 min.)
Spindle Speed Range	40 ~ 4,000 rpm
X1 Axis Travel	195 mm (7.7 in)
X2 Axis Travel	210 mm (8.3 in)
Z1 Axis Travel	620 mm (24.4 in)
Z2 Axis Travel	620 mm (24.4 in)
Turret Stations	12 + 12; 16 + 16
Live Tooling Stations	12 + 12; 16 + 16; 24 + 24 (opt.)
Y Axis Travel	±50 mm (±2.0 in) (opt.)

Specifications sourced from goodwaycnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Two identical spindles, each 11 kW (14.8 hp) continuous with up to 430 Nm, per Goodway
Upper and lower turrets with 620 mm (24.4 in) of Z travel each
Turret options from 12 + 12 up to 24 + 24 stations
Ø65 mm (2.6 in) bar capacity through 8 in big-bore chucks
Optional Y-axis of ±50 mm (±2.0 in) on the upper turret

Limitations

The Y-axis is available for the upper turret only
Spindle speed is limited to 4,000 rpm
Turning diameter is Ø250 mm (9.8 in)
The table prints several turret configurations under one model without naming them

Best For

Steel bar parts up to Ø65 mm (2.6 in) needing heavy cuts on both ends Simultaneous upper and lower turret cutting on shafts up to 590 mm (23.2 in) Mass production with many tools mounted, using 24 + 24 station turrets

Frequently Asked Questions

01 What are the spindle specifications of the GTZ-2600?

Spindle 1 and spindle 2 are identical: 8 in big-bore chuck, Ø65 mm (2.6 in) bar capacity, 40 ~ 4,000 rpm, 11 kW (14.8 hp) continuous and 15 kW (20.1 hp) for 30 min. Goodway's feature list describes a 15 kW wide-range motor with a maximum torque of 430 Nm.

02 What turret options does the GTZ-2600 have?

Without live tooling, the upper and lower turrets have 12 + 12 or 16 + 16 stations. The optional live tooling turrets are listed with 12 + 12, 16 + 16 or 24 + 24 stations, with 12 + 12, 16 + 16 and 12 + 12 live positions respectively.

03 Does the GTZ-2600 have a Y-axis on both turrets?

No. Goodway states that Y-axis control is available for the upper turret. Its travel is ±50 mm (±2.0 in), which the maker also writes as 100 mm in total. The GTZ-1500 is the model with Y travel on both turrets.

04 How long a part can the GTZ-2600 machine?

Maximum turning length is 590 mm (23.2 in), or 600 mm (23.6 in) with the 16-station turret. Both Z1 and Z2 travel 620 mm (24.4 in). Maximum turning diameter is Ø250 mm (9.8 in).
