DN Solutions CNC Lathes / Turning Centers

DN Solutions LYNX 2100

Est. $55,000 - $85,000 Possible older model Specs verified 2026-03-28 · dn-solutions.com Updated 2026-10-02

This model was not found in DN Solutions's current lineup when we checked on 2026-10-02 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

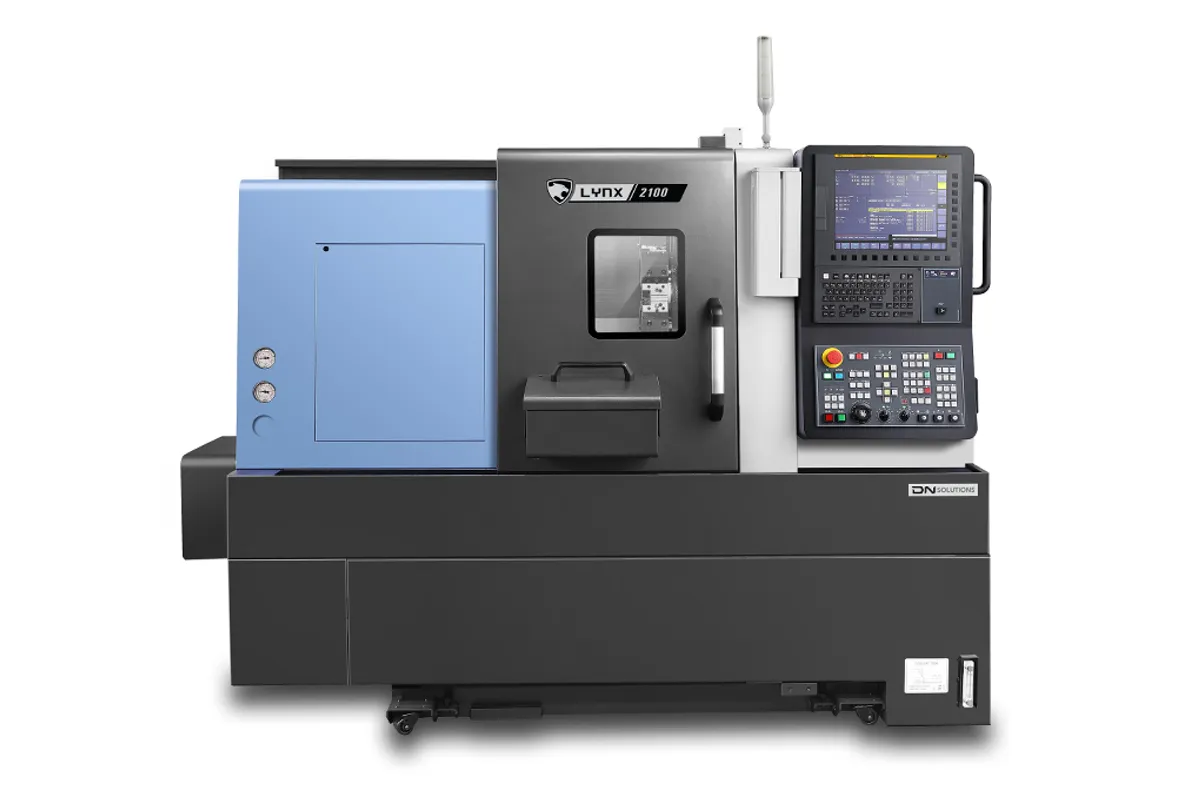

Image: awsimg.dn-solutions.com, DN Solutions

Key Specifications

Max Spindle

6,000 RPM

Tool Capacity

12-station turret

Rapid Traverse

36 m/min (X and Z)

Spindle Power

15 kW (20 hp)

Max Turn Length

330 mm

max turning diameter

350 mm

How much does the DN Solutions LYNX 2100 cost?

Estimated price range

Est.$55,000 - $85,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions LYNX 2100 is listed here as a turning-only lathe with a 6 inch chuck, a 350 mm maximum turning diameter, 330 mm of turning length and a 6,000 rpm spindle of 15 kW (20 hp). DN Solutions' current lineup does not show a model under this plain name. It shows the LYNX 2100 A and the LYNX 2100 B, so this page may describe an older model, and what follows should be read as the listed figures for it.

Those listed figures line up with the current LYNX 2100 A: the same 6 in chuck, 6,000 rpm, 127 N·m (94 ft-lb), 205 mm (8 in) of X travel, 340 mm (13 in) of Z travel, a 12-station turret and 3,100 kg (6,834 lb). The LYNX 2100 B is the 8 in alternative, with 4,500 rpm and 169 N·m (125 ft-lb). Anyone assessing a second-hand LYNX 2100 can treat the A column as the nearest current reference, then check the machine's own nameplate and manual for how it was actually built.

In use, 6,000 rpm with a 6 inch chuck suits small-diameter work, and Z rapid traverse is listed at 36 m/min (1,417 in/min). Torque of 127 Nm (94 ft-lb) from 15 kW (20 hp) is modest, so roughing large steel blanks near the 350 mm limit means light cuts. Bar capacity is given as 45 mm (1.77 in).

The table also names a Fanuc 0i-Plus control with a 15 inch iHMI touchscreen. On an older machine, confirm which control is fitted before relying on that. No rotary tool speed, Y travel or sub-spindle appears in the table, so milled features need a separate operation.

Full Specifications

Parameter	Value
Max Turning Diameter	350 mm
Max Turning Length	330 mm
Max Spindle Speed	6,000 RPM
Spindle Motor Power	15 kW (20 hp)
Spindle Torque	127 Nm (94 ft-lb)
Chuck Size	6 inch
X Axis Travel	205 mm (8 in)
Z Axis Travel	340 mm (13 in)
Rapid Traverse X	30 m/min (1,181 in/min)
Rapid Traverse Z	36 m/min (1,417 in/min)
Tool Capacity	12-station turret
Machine Weight	3,100 kg (6,834 lb)
CNC Control	Fanuc 0i-Plus with 15" iHMI touchscreen
Max Bar Capacity	45 mm (1.77 in)
Main Spindle Speed	Up to 6,000 RPM
Main Spindle Drive	15 kW (20.1 hp)
Turret Positions	12-position servo turret
Rapid Traverse Rate	36 m/min (X and Z)
Floor Space	Approx. 1,800 mm × 1,500 mm

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

6,000 rpm spindle with a 6 inch chuck for small-diameter turning
Turns up to 350 mm in diameter and 330 mm in length at a listed weight of 3,100 kg (6,834 lb)
12-station turret with Z rapid traverse of 36 m/min (1,417 in/min)
Listed bar capacity of 45 mm (1.77 in)
Listed figures match the current LYNX 2100 A, which gives a present-day reference for the same size of machine

Limitations

Not in DN Solutions' current lineup under this name, so the table may describe an older model
127 Nm (94 ft-lb) of torque; the LYNX 2100 B lists 169 N·m (125 ft-lb) for heavier cuts
No rotary tools, Y axis or sub-spindle in the table
Z travel of 340 mm (13 in) limits part length; the LYNX 2600 lists 680 mm (27 in)

Best For

Small chucked parts turned at up to 6,000 rpm Bar work within the listed 45 mm (1.77 in) capacity Short parts up to 330 mm long that need turning only Buyers comparing an older machine with the LYNX 2100 A

Frequently Asked Questions

01 Is the LYNX 2100 still a current DN Solutions model?

DN Solutions' current lineup does not list a model named simply LYNX 2100. It lists the LYNX 2100 A, with a 6 in chuck and 6,000 rpm, and the LYNX 2100 B, with an 8 in chuck and 4,500 rpm. The figures on this page match the A, so it may describe an older listing of that machine.

02 What are the turning capacities listed for the LYNX 2100?

A maximum turning diameter of 350 mm and a maximum turning length of 330 mm, with a 6 inch chuck. X travel is 205 mm (8 in), Z travel is 340 mm (13 in) and the listed bar capacity is 45 mm (1.77 in).

03 How does the LYNX 2100 compare with the LYNX 2100 B?

The LYNX 2100 B has an 8 in chuck, 4,500 rpm and 169 N·m (125 ft-lb). The LYNX 2100 is listed with a 6 inch chuck, 6,000 rpm and 127 Nm (94 ft-lb). Both have 15 kW (20 hp) and weigh 3,100 kg (6,834 lb), so the difference is speed for small parts against torque and grip for larger ones.

04 What control is listed for the LYNX 2100?

The table names a Fanuc 0i-Plus with a 15 inch iHMI touchscreen. Because this model may be an older one, the control on a particular machine could differ; check the machine itself and its documentation.
