Yasda YBM 8T-63TT

Q: How much does the Yasda YBM 8T-63TT cost?

The price estimate for the Yasda YBM 8T-63TT is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/yasda-ybm-8t-63tt#price; the request is passed to Yasda Precision or an authorised dealer.

Specs verified 2026-10-05 · yasda.co.jp Updated 2026-10-05

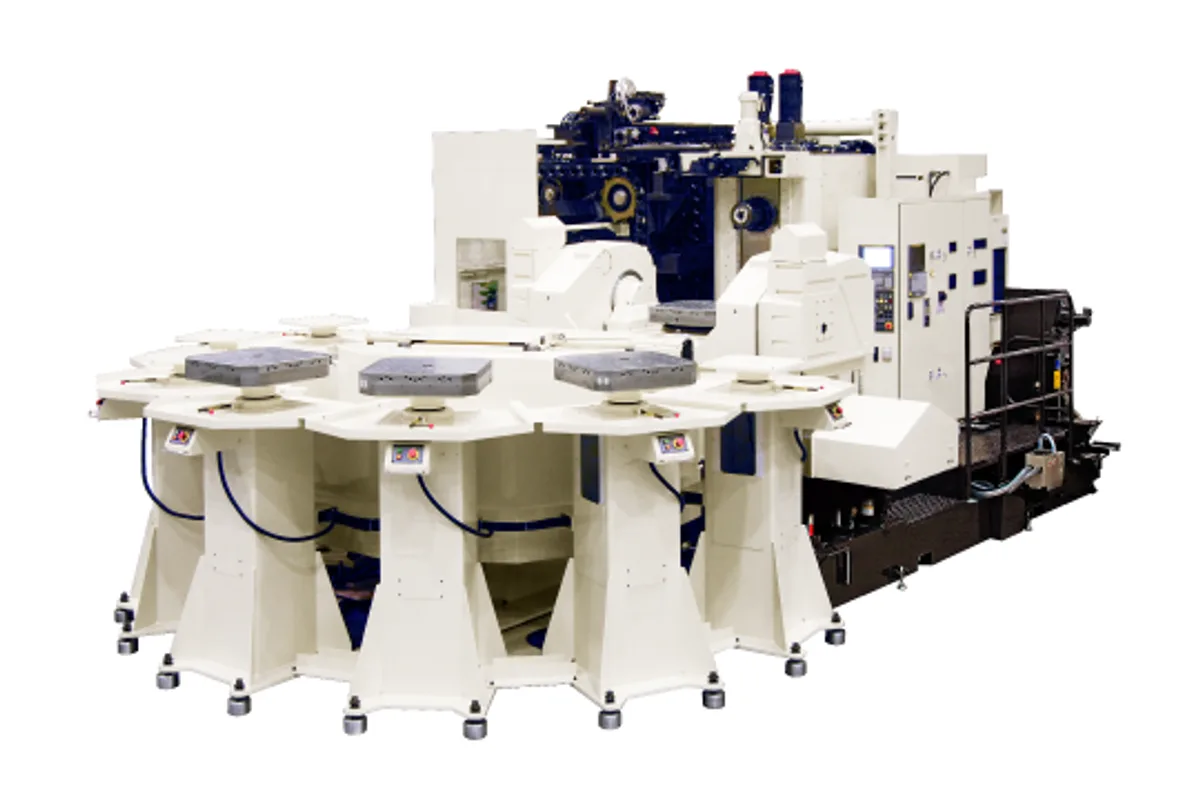

Image: yasda.co.jp, Yasda Precision

Key Specifications

X Travel

1,000 mm (39.4 in)

Y Travel

1,000 mm (39.4 in)

Z Travel

1,100 mm (43.3 in)

Max Spindle

50-10,000 min-1 (60-6,000 min-1 high-torque spindle opt., 60-15,000 min-1 high-speed spindle opt., 200-20,000 min-1 high-speed spindle opt.)

Spindle Taper

MAS BT50 (MAS BT40 with the 200-20,000 min-1 high-speed spindle opt.)

Tool Capacity

60 tools (90 tools/120-450 tools opt.)

How much does the Yasda YBM 8T-63TT cost?

Price estimate

Uncertain

We do not have a price for the Yasda YBM 8T-63TT that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Yasda YBM 8T-63TT is a table trunnion type 5-axis machine built on the mid-size precision center. Travels are 1,000 mm (39.4 in) in X, 1,000 mm (39.4 in) in Y and 1,100 mm (43.3 in) in Z, and the table working size is 630 x 630 mm (24.8 x 24.8 in).

Put those figures together and the design intent is clear. A 630 mm table sits inside a metre of travel in every direction, and the Y and Z strokes match those of the YBM 8T. The room around the table is there so that the trunnion can tilt a part and the spindle can still reach all of it, including the faces that swing away from the column. X is the axis that gives way: 1,000 mm here against 1,300 mm on the YBM 8T.

All four spindles of the precision center are offered. The base unit runs 50-10,000 min-1 on MAS BT50. The high-torque spindle covers 60-6,000 min-1 and one high-speed spindle 60-15,000 min-1, both on BT50, and a second high-speed spindle reaches 200-20,000 min-1 with MAS BT40. A trunnion machine with a BT50 high-torque spindle is a tool for 5-sided work in steel and cast iron; with the BT40 spindle it becomes a machine for lighter alloys.

No pallet changer is part of the base machine. A 6PLS APC is optional, as is tool storage of 90 tools or 120-450 tools beyond the standard 60 tools. Y can be extended to a total of 1,250 mm and Z to 1,400 mm. Height is 3,495 mm (137.6 in) with the 1,000 mm Y stroke and 3,745 mm (147.4 in) with 1,250 mm. The control is a FANUC 31i-B5 Plus.

Full Specifications

Parameter	Value
X-Axis Travel	1,000 mm (39.4 in)
Y-Axis Travel	1,000 mm (39.4 in)
Z-Axis Travel	1,100 mm (43.3 in)
Table Working Size	630 x 630 mm (24.8 x 24.8 in)
Max Spindle Speed	50-10,000 min-1 (60-6,000 min-1 high-torque spindle opt., 60-15,000 min-1 high-speed spindle opt., 200-20,000 min-1 high-speed spindle opt.)
Spindle Taper	MAS BT50 (MAS BT40 with the 200-20,000 min-1 high-speed spindle opt.)
Tool Capacity	60 tools (90 tools/120-450 tools opt.)
APC	6PLS (opt.)
Stroke Extension	Y 1,250 mm / Z 1,400 mm total length (opt.)
CNC Control	FANUC 31i-B5 Plus
Machine Height	3,495 mm (137.6 in) with Y = 1,000 mm stroke; 3,745 mm (147.4 in) with Y = 1,250 mm stroke

Specifications sourced from yasda.co.jp — verified 2026-10-05

Strengths & Limitations

Strengths

Table trunnion type 5-axis machine with a 630 x 630 mm (24.8 x 24.8 in) table working size
1,000 x 1,000 x 1,100 mm of travel around the trunnion
Four spindle choices from 60-6,000 min-1 high-torque to 200-20,000 min-1 high-speed
Optional stroke extension to Y 1,250 mm and Z 1,400 mm total length
6PLS APC and up to 120-450 tools available as options

Limitations

No pallet changer in the base machine; the APC is an option
X travel of 1,000 mm (39.4 in), shorter than the 1,300 mm of the YBM 8T
Tilt and rotation ranges of the trunnion are not published on the product page
Height reaches 3,745 mm (147.4 in) with the longer Y stroke

Best For

5-sided and 5-axis machining of housings and structural parts up to the 630 mm table Precision parts in steel and cast iron, with the high-torque spindle Angled bores and faces finished in one clamping Multi-pallet 5-axis production with the 6PLS option

Frequently Asked Questions

01 What kind of machine is the Yasda YBM 8T-63TT?

Yasda describes it as a table trunnion type 5-axis machine. It has a 630 x 630 mm table working size and travels of 1,000 mm in X, 1,000 mm in Y and 1,100 mm in Z.

02 Which spindles are available on the YBM 8T-63TT?

The base spindle is 50-10,000 min-1 with MAS BT50. Options are a 60-6,000 min-1 high-torque spindle, a 60-15,000 min-1 high-speed spindle, and a 200-20,000 min-1 high-speed spindle that uses MAS BT40.

03 Does the YBM 8T-63TT have a pallet changer?

Not in the base specification, which lists no APC. A 6PLS APC is optional equipment. The YBM 8T, by comparison, has 2 pallets as standard.

04 How does the YBM 8T-63TT compare with the YBM 7Ti?

Both are 5-axis machines with a 50-10,000 min-1 MAS BT50 base spindle and 60 tools. The YBM 7Ti has travels of 1,250 mm, 1,000 mm and 1,100 mm. The YBM 8T-63TT has 1,000 mm in X with the same Y and Z, and is described as a table trunnion type.
