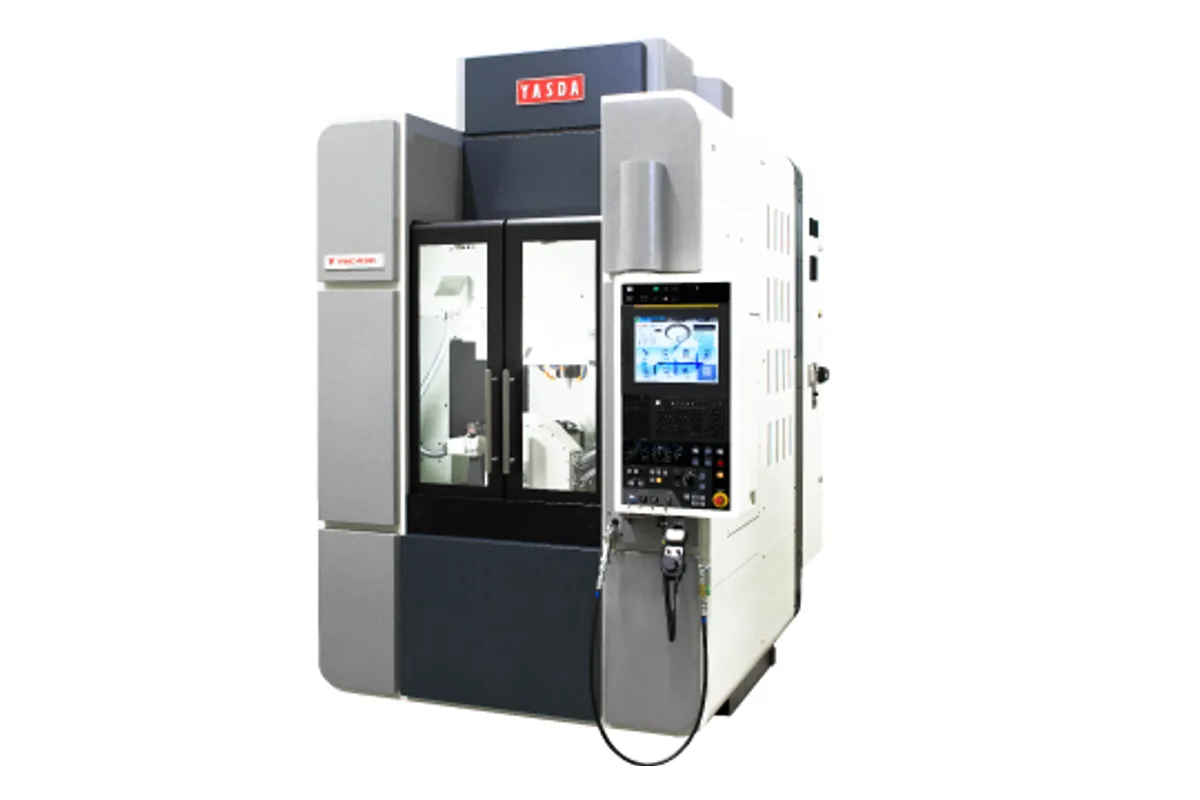

Yasda YMC 430 +RT10
Image: yasda.co.jp, Yasda Precision
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Yasda YMC 430 +RT10 cost?
Price estimate
We do not have a price for the Yasda YMC 430 +RT10 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Yasda YMC 430 +RT10 is the YMC 430 micro center with a rotary table made by Yasda mounted on it, for 5-axis machining of micro workpieces. The linear travels are those of the base machine: 420 mm (16.5 in) in X, 300 mm (11.8 in) in Y and 250 mm (9.8 in) in Z.
The spindle is unchanged as well, at 200-40,000 min-1 with an HSK-E32 taper. That is a spindle for very small tools, and with the rotary table the machine can bring such a tool to a part from many directions in one clamping: small electrodes and micro-moulds, for example. The faster spindle listed as an option on the YMC 430 does not appear on the option list of this version.
Yasda gives no table diameter, load or axis ranges for the rotary table on the product page, and the travel left over once the table is mounted is not stated either. Those figures decide the usable part size. The magazine holds 32 tools, or 90 tools as an option, and an EROWA/System 3R robot interface is available. The control is a FANUC 31i-B5 Plus. Height is 2,840 mm (111.8 in), against 2,670 mm for the YMC 430.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 420 mm (16.5 in) |
| Y-Axis Travel | 300 mm (11.8 in) |
| Z-Axis Travel | 250 mm (9.8 in) |
| Max Spindle Speed | 200-40,000 min-1 |
| Spindle Taper | HSK-E32 |
| Tool Capacity | 32 tools (90 tools opt.) |
| Robot Interface | EROWA/System 3R (opt.) |
| CNC Control | FANUC 31i-B5 Plus |
| Machine Height | 2,840 mm (111.8 in) |
Specifications sourced from yasda.co.jp — verified 2026-10-05
Strengths & Limitations
Strengths
- 5-axis version of the YMC 430 with a Yasda-made rotary table
- 200-40,000 min-1 HSK-E32 spindle for micro tools
- Optional 90 tool storage and EROWA/System 3R robot interface
- Same 420 x 300 x 250 mm linear travels as the base machine
Limitations
- Rotary table size, load and axis ranges are not published on the product page
- HSK-E32 limits the machine to small tools
- Taller than the YMC 430: 2,840 mm (111.8 in)
Best For
Frequently Asked Questions
01
The +RT10 version has a rotary table made by Yasda mounted on the YMC 430, making it a 5-axis machine. Travels, spindle and the 32 tool magazine are the same. Machine height is 2,840 mm, against 2,670 mm for the YMC 430.
02
A 200-40,000 min-1 spindle with an HSK-E32 taper hole. No optional spindle is listed for this version on the product page.
03
A robot interface for EROWA/System 3R is listed as optional equipment. Tool storage can also be raised from 32 tools to 90 tools, which suits unattended running.
