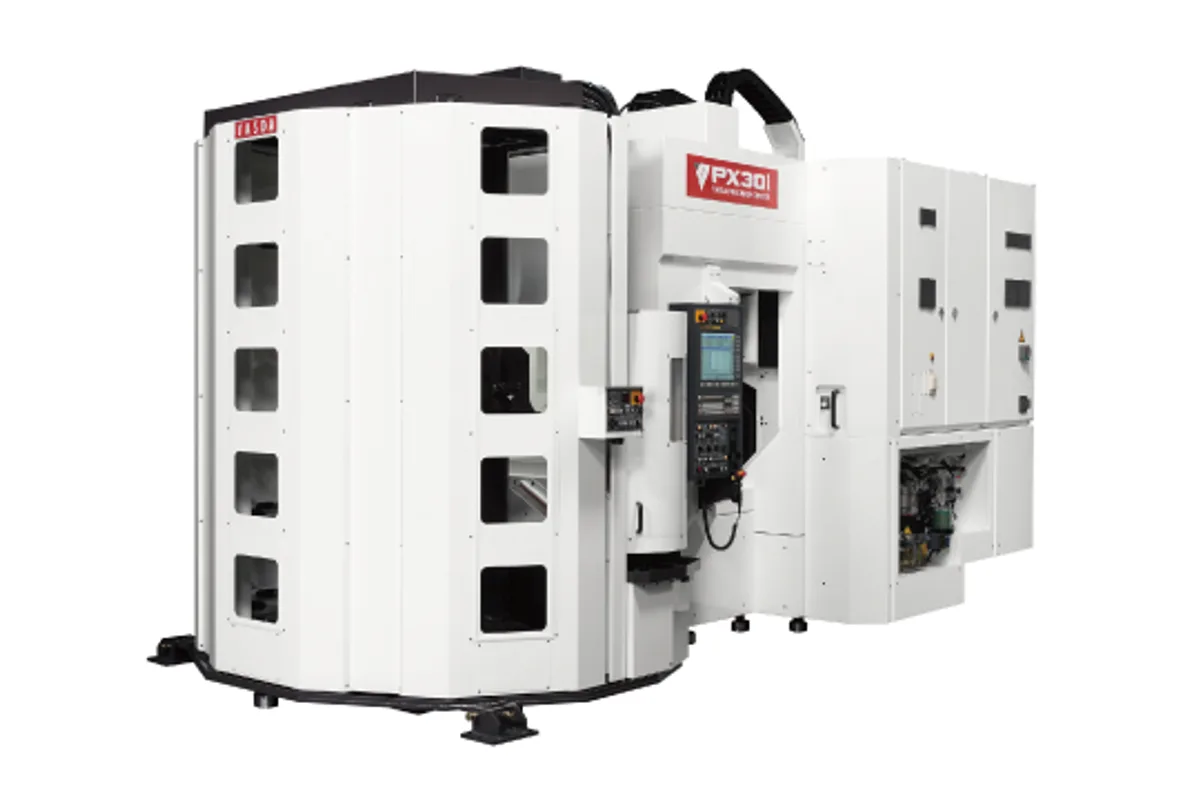

Yasda PX30i

Specs verified 2026-10-05 · yasda.co.jp Updated 2026-10-05

Image: yasda.co.jp, Yasda Precision

Key Specifications

X Travel

680 mm (26.8 in)

Y Travel

400 mm (15.7 in)

Z Travel

500 mm (19.7 in)

Max Spindle

100-20,000 min-1

Spindle Taper

MAS BT40

Tool Capacity

323 tools

How much does the Yasda PX30i cost?

Price estimate

Uncertain

We do not have a price for the Yasda PX30i that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Yasda PX30i is a 5-axis machine sold as a complete production cell: 323 tools and 33 pallets are standard equipment, not options. Travels are 680 mm (26.8 in) in X, 400 mm (15.7 in) in Y and 500 mm (19.7 in) in Z, and the spindle runs 100-20,000 min-1 with a MAS BT40 taper.

The numbers describe how it is meant to be used. With 33 pallets and a magazine of 323 tools, the machine can be loaded with many different small parts and their tools and left to run. Lot size matters little in that arrangement, because changing from one part to the next is a pallet change and not a set-up.

The travels are those of a small machine, so the parts are small too. Yasda publishes no pallet size, pallet load or rotary axis ranges on the product page, and these decide what actually fits; ask for them first. The control is a FANUC 31i-B5 Plus and the machine is 3,335 mm (131.3 in) high.

Full Specifications

Parameter	Value
X-Axis Travel	680 mm (26.8 in)
Y-Axis Travel	400 mm (15.7 in)
Z-Axis Travel	500 mm (19.7 in)
Max Spindle Speed	100-20,000 min-1
Spindle Taper	MAS BT40
Tool Capacity	323 tools
APC	33 pallets
CNC Control	FANUC 31i-B5 Plus
Machine Height	3,335 mm (131.3 in)

Specifications sourced from yasda.co.jp — verified 2026-10-05

Strengths & Limitations

Strengths

323 tools and 33 pallets as standard
5-axis machining with 680 x 400 x 500 mm of travel
100-20,000 min-1 MAS BT40 spindle
FANUC 31i-B5 Plus control

Limitations

Pallet size, pallet load and rotary axis ranges are not published on the product page
Y travel is 400 mm (15.7 in), so the machine is for small parts
No optional equipment is listed, so the cell is offered in one configuration

Best For

High-mix, low-volume 5-axis production of small parts Lights-out running across 33 pallets Part families that need hundreds of tools on hand Small precision components in 40-taper tooling

Frequently Asked Questions

01 How many tools and pallets does the Yasda PX30i have?

The base specification lists an ATC with 323 tools and an APC with 33 pallets. Yasda states that both are standard equipment on this machine.

02 What are the travels of the PX30i?

680 mm (26.8 in) in X, 400 mm (15.7 in) in Y and 500 mm (19.7 in) in Z. Machine height is 3,335 mm (131.3 in).

03 What spindle and control does the PX30i use?

The spindle runs 100-20,000 min-1 with a MAS BT40 taper hole, and the NC unit is a FANUC 31i-B5 Plus. No alternative spindle is listed on the product page.
