Yasda Precision 5-Axis Machining Centers

Yasda H40i

Specs verified 2026-10-05 · yasda.co.jp Updated 2026-10-05

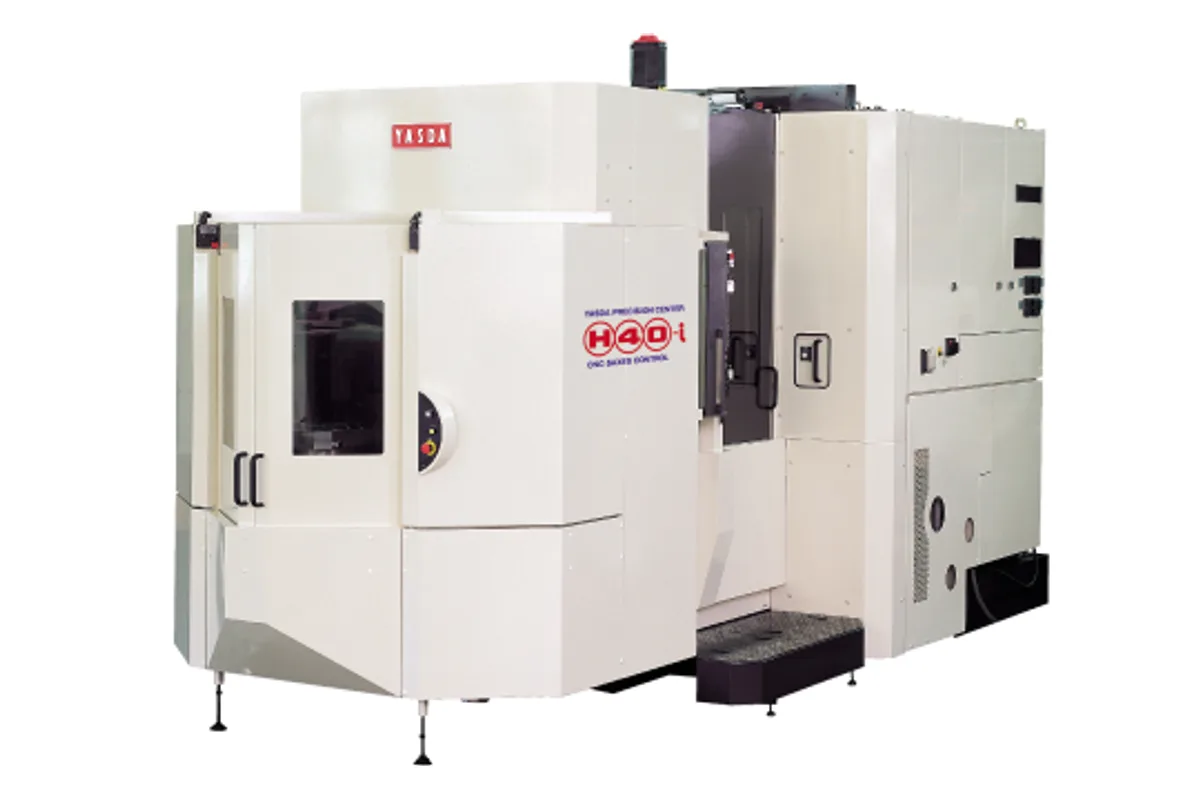

Image: yasda.co.jp, Yasda Precision

Key Specifications

X Travel

875 mm (34.4 in)

Y Travel

740 mm (29.1 in)

Z Travel

685 mm (27.0 in)

Max Spindle

200-20,000 min-1

Spindle Taper

MAS BT40

Tool Capacity

60 tools (120/180/240 tools opt.)

How much does the Yasda H40i cost?

Price estimate

Uncertain

We do not have a price for the Yasda H40i that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

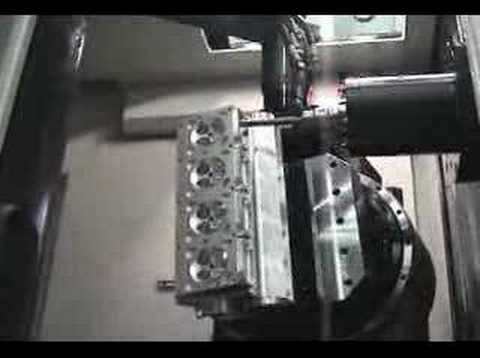

The Yasda H40i is a horizontal 5-axis machining center for work that ranges, in Yasda's words, from 5-faces indexing to complex simultaneous 5-axis applications. The table working size is 400 x 400 mm (15.7 x 15.7 in), and travels are 875 mm (34.4 in) in X, 740 mm (29.1 in) in Y and 685 mm (27.0 in) in Z.

The travels reach well beyond the table size in each direction. On a horizontal 5-axis machine that space is used up by the tilting unit and the swing of the part, and it is what allows a tool to approach from any side without a second clamping.

The base machine is modest in its automation: 60 tools and 2 pallets. The point of the design is how far that can be taken. Tool storage options are 120, 180 or 240 tools, and the APC can be 12 or 24 pallets, so the same machine can run as a two-pallet cell in a toolroom or as a pallet-pool system that works through a weekend. Yasda gives 240 tools and 24 pallets as the ceiling.

The spindle runs 200-20,000 min-1 with a MAS BT40 taper. That is a range for aluminium and for finishing in steel with small and medium tools; heavy roughing is not what a 40-taper, 20,000 min-1 spindle is for. A direct driven motor for the A and B axes is optional equipment, which is worth pricing if the work is simultaneous contouring, since direct drive removes the gear train from the rotary axes. The control is a FANUC 31i-B5 Plus and machine height is 3,117 mm (122.7 in).

Full Specifications

Parameter	Value
X-Axis Travel	875 mm (34.4 in)
Y-Axis Travel	740 mm (29.1 in)
Z-Axis Travel	685 mm (27.0 in)
Table Working Size	400 x 400 mm (15.7 x 15.7 in)
Max Spindle Speed	200-20,000 min-1
Spindle Taper	MAS BT40
Tool Capacity	60 tools (120/180/240 tools opt.)
APC	2 pallets (12/24PLS opt.)
Rotary Axis Drive	Direct Driven motor for A,B-axis (opt.)
CNC Control	FANUC 31i-B5 Plus
Machine Height	3,117 mm (122.7 in)

Specifications sourced from yasda.co.jp — verified 2026-10-05

Strengths & Limitations

Strengths

Horizontal 5-axis layout for 5-face indexing and simultaneous 5-axis work
Expandable from 60 tools and 2 pallets to 240 tools and 24 pallets
875 x 740 x 685 mm of travel around a 400 x 400 mm (15.7 x 15.7 in) table
200-20,000 min-1 MAS BT40 spindle
Optional direct driven motor for the A and B axes

Limitations

The base machine has 60 tools and 2 pallets; the larger systems are options
Only one spindle is listed, at 200-20,000 min-1 on MAS BT40
Direct drive on the A and B axes is optional equipment
No table load or rotary axis ranges are published on the product page

Best For

5-face machining of prismatic parts on a 400 mm pallet Simultaneous 5-axis work in aluminium and steel with 40-taper tools Unattended production with a 12 or 24 pallet APC High-mix work that needs up to 240 tools

Frequently Asked Questions

01 What are the travels and table size of the Yasda H40i?

Travels are 875 mm (34.4 in) in X, 740 mm (29.1 in) in Y and 685 mm (27.0 in) in Z. The table working size is 400 x 400 mm (15.7 x 15.7 in) and machine height is 3,117 mm (122.7 in).

02 How far can the H40i be automated?

The base machine has an ATC with 60 tools and an APC with 2 pallets. Options are 120, 180 or 240 tools and a 12 or 24 pallet APC. Yasda states that it can be expanded to accommodate up to 240 tools and 24 pallets.

03 What spindle does the H40i have?

A 200-20,000 min-1 spindle with a MAS BT40 taper hole. No alternative spindle is listed on the product page. A direct driven motor for the A and B axes is optional.

04 How does the H40i differ from the H40i-80?

Travels, table size and spindle are the same. The H40i-80 comes with 240 tools and 9 pallets as its base specification, and Yasda presents it as the version for workpieces of larger diameter. The H40i starts at 60 tools and 2 pallets.
