Vision Wide VHM-630

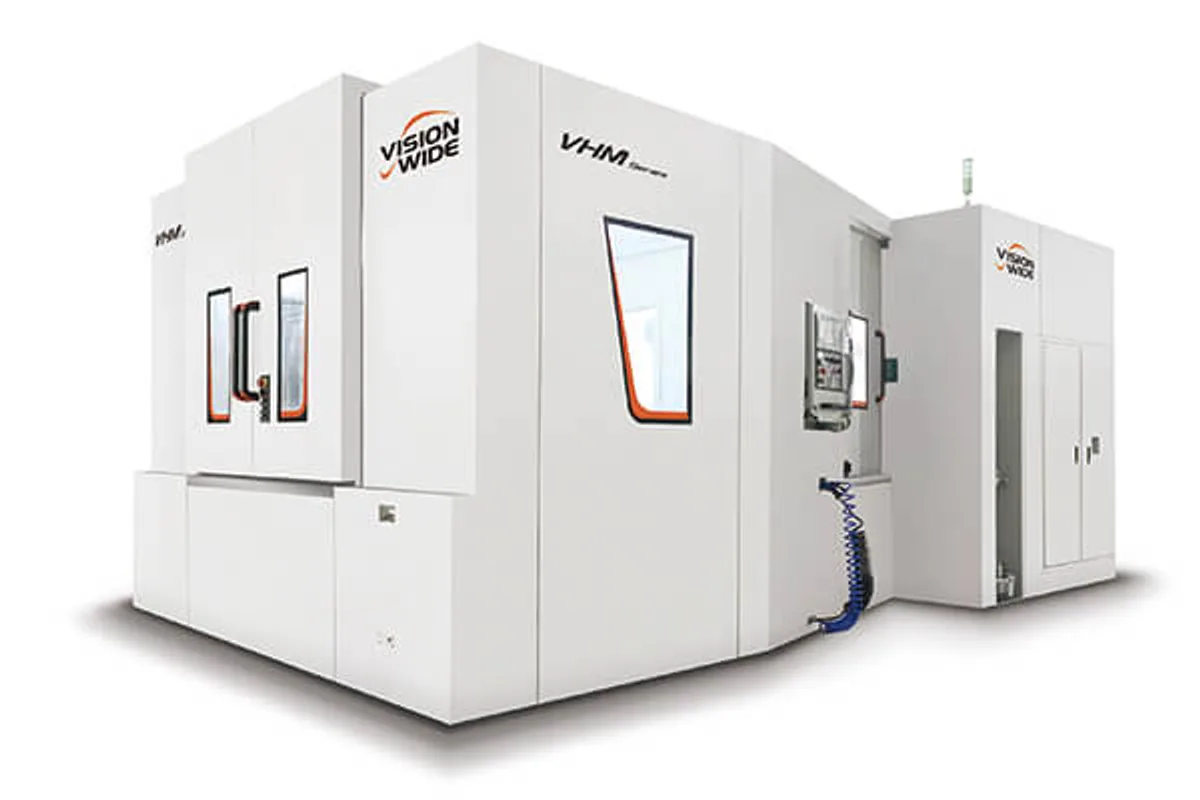

Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide VHM-630 cost?
Price estimate
We do not have a price for the Vision Wide VHM-630 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide VHM-630 is a horizontal machining center with a 630 x 630 mm (24.8 x 24.8 in) table and travels of 1,050 mm (41.3 in) in X and 1,000 mm (39.4 in) in both Y and Z. For a 630 mm pallet class those are long strokes, so the machine can swing a fixture tower well clear of the spindle and still reach its outer faces.
It is the smallest of three VHM sizes and the only one with the lighter spindle motor. Power is 18.5 / 22 kW (24.8 / 29.5 hp), continuous and short-time, where the VHM-800 and VHM-1000 are listed at 22 / 26 kW (29.5 / 34.9 hp). Spindle speed is 6,000 rpm on all three. A 6,000 rpm top speed points this machine at iron and steel housings more than at high-speed aluminium work.
Axis speed is the other defining figure. Rapids are 40 / 40 / 40 m/min and the cutting feed rate is 32 m/min, the same on every VHM model, so the smallest machine with the lightest table has the easiest job reaching those rates.
The table takes 1,200 kg (2,646 lb), measured in the central area as the maker specifies it. The tool magazine holds 40 pcs as listed, with 60, 90, 120, 180 and 240 tool magazines marked as options. Vision Wide's table gives no spindle taper, pallet changer details or index increment for the table, so those need to be requested with the quotation.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,050 mm (41.3 in) |
| Y Axis Travel | 1,000 mm (39.4 in) |
| Z Axis Travel | 1,000 mm (39.4 in) |
| Table Size | 630 x 630 mm (24.8 x 24.8 in) |
| Max Table Load Central Area | 1,200 kg (2,646 lb) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Power Cont 30 Min | 18.5 / 22 kW (24.8 / 29.5 hp) |
| Cutting Feed Rate | 32 m/min |
| Rapid Traverse Xyz | 40 / 40 / 40 m/min |
| Tool Capacity | 40 pcs / (60 / 90 / 120 / 180 / 240 pcs Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Travels of 1,050 mm (41.3 in) in X and 1,000 mm (39.4 in) in Y and Z around a 630 x 630 mm (24.8 x 24.8 in) table
- 40 / 40 / 40 m/min rapids and a 32 m/min cutting feed rate
- Tool magazine of 40 pcs with optional sizes up to 240
- 18.5 / 22 kW (24.8 / 29.5 hp) spindle motor at 6,000 rpm
Limitations
- Table load in the central area is 1,200 kg (2,646 lb), against 2,000 kg (4,409 lb) on the VHM-800
- Spindle speed is limited to 6,000 rpm
- Lower spindle power than the VHM-800 and VHM-1000, which list 22 / 26 kW (29.5 / 34.9 hp)
- The published table has no taper, torque or pallet changer figures
Best For
Frequently Asked Questions
01
X travel is 1,050 mm (41.3 in), Y is 1,000 mm (39.4 in) and Z is 1,000 mm (39.4 in). The table is 630 x 630 mm (24.8 x 24.8 in) and its maximum load in the central area is 1,200 kg (2,646 lb).
02
The VHM-800 has an 800 x 800 mm (31.5 x 31.5 in) table for 2,000 kg (4,409 lb), travels of 1,300 mm (51.2 in) in X and 1,200 mm (47.2 in) in Y and Z, and 22 / 26 kW (29.5 / 34.9 hp). The VHM-630 is listed at 18.5 / 22 kW (24.8 / 29.5 hp). Speed, feed and rapid figures are the same.
03
The specification lists a tool magazine capacity of 40 pcs, followed by 60 / 90 / 120 / 180 / 240 marked Opt. The larger magazines are therefore extras to be named on the order.
04
The table gives a spindle speed of 6,000 rpm and a spindle power of 18.5 / 22 kW (24.8 / 29.5 hp), continuous and short-time. No taper or torque figure is published in the specification table for this series.
More from Vision Wide
Other Horizontal Machining Centers (HMC)
DMG Mori DMU 65 h FD monoBLOCK 2nd Generation

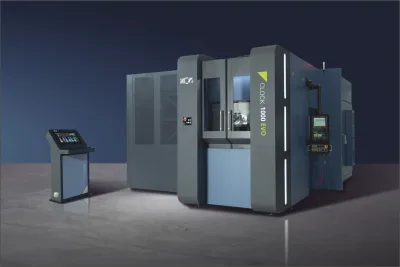

MCM CLOCK 1000 EVO

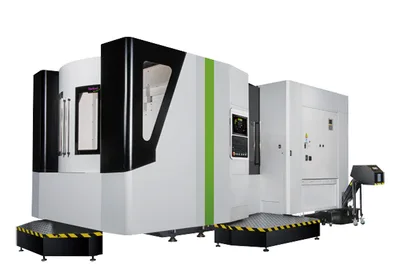

Hartford HMC-8
