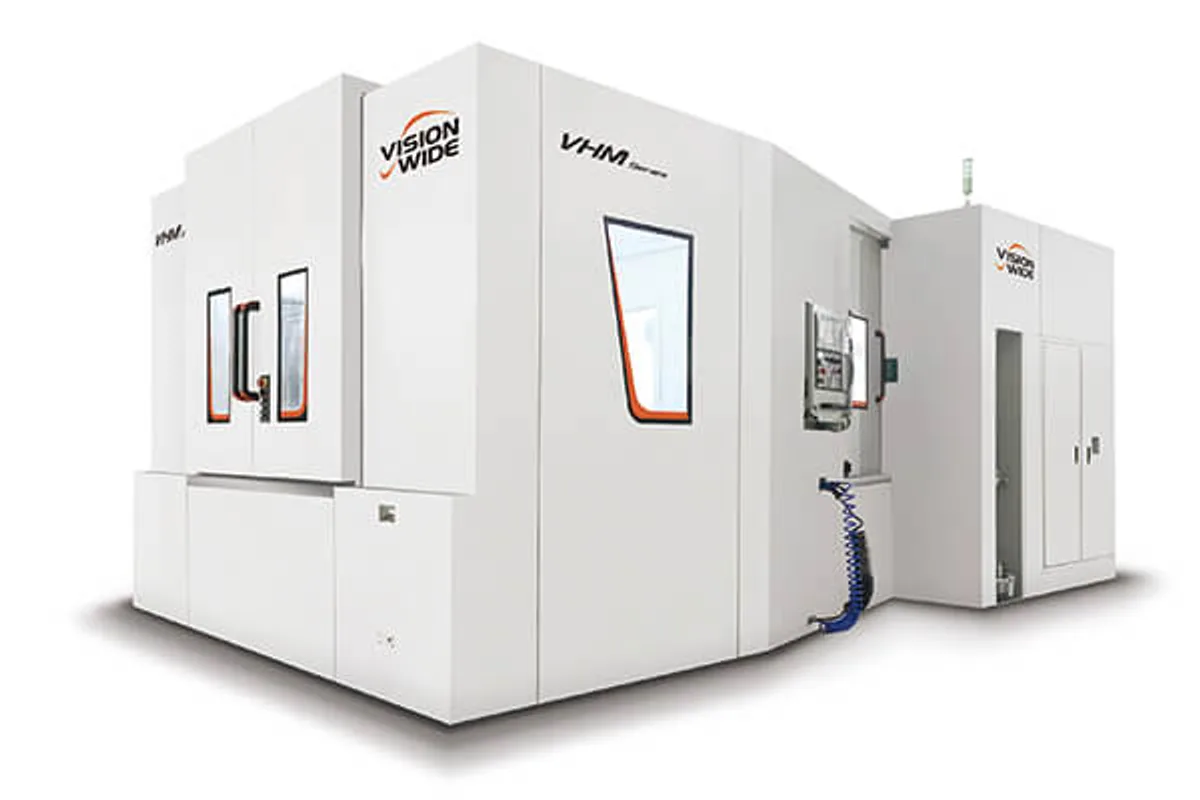

Vision Wide VHM-800
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide VHM-800 cost?
Price estimate
We do not have a price for the Vision Wide VHM-800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With an 800 x 800 mm (31.5 x 31.5 in) table and 2,000 kg (4,409 lb) of capacity in the central area, the Vision Wide VHM-800 is the middle model of the VHM horizontal machining center series. Travels are 1,300 mm (51.2 in) in X and 1,200 mm (47.2 in) in Y and in Z.
The jump from the VHM-630 is larger than the model numbers suggest. Table load goes from 1,200 kg (2,646 lb) on the VHM-630 to 2,000 kg (4,409 lb), and the spindle motor from 18.5 / 22 kW (24.8 / 29.5 hp) on that machine to 22 / 26 kW (29.5 / 34.9 hp). In other words this is the size at which the series becomes a machine for heavy castings.
Going up again brings less. The VHM-1000 has a 1,000 x 1,000 mm (39.4 x 39.4 in) table and 1,600 mm (63.0 in) of X, but its load rating is the same 2,000 kg (4,409 lb) and so is its motor. Unless the part itself is too big, the VHM-800 does the same work on a smaller floor area.
None of that costs axis speed on paper: rapids are 40 / 40 / 40 m/min and the cutting feed rate 32 m/min. Spindle speed is 6,000 rpm. The magazine is listed at 40 pcs, and chain sizes of 60, 90, 120, 180 and 240 tools are marked optional, which matters on a horizontal where one setup often machines several faces with separate tool sets.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,300 mm (51.2 in) |
| Y Axis Travel | 1,200 mm (47.2 in) |
| Z Axis Travel | 1,200 mm (47.2 in) |
| Table Size | 800 x 800 mm (31.5 x 31.5 in) |
| Max Table Load Central Area | 2,000 kg (4,409 lb) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Power Cont 30 Min | 22 / 26 kW (29.5 / 34.9 hp) |
| Cutting Feed Rate | 32 m/min |
| Rapid Traverse Xyz | 40 / 40 / 40 m/min |
| Tool Capacity | 40 pcs / (60 / 90 / 120 / 180 / 240 pcs Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,000 kg (4,409 lb) table load in the central area on an 800 x 800 mm (31.5 x 31.5 in) table
- 22 / 26 kW (29.5 / 34.9 hp) spindle motor, above the 18.5 / 22 kW (24.8 / 29.5 hp) of the VHM-630
- 1,300 mm (51.2 in) of X and 1,200 mm (47.2 in) of Y and Z travel
- 40 / 40 / 40 m/min rapids with a 32 m/min cutting feed rate
- Optional magazines up to 240 tools
Limitations
- 6,000 rpm maximum spindle speed
- Same 2,000 kg (4,409 lb) load limit as the larger VHM-1000, so it is the table size, not the weight, that grows above this model
- The load figure applies to the central area of the table only
- No spindle torque or taper is given in the published table
Best For
Frequently Asked Questions
01
The table is 800 x 800 mm (31.5 x 31.5 in). Maximum table load, which the maker specifies for the central area, is 2,000 kg (4,409 lb).
02
X is 1,300 mm (51.2 in), Y is 1,200 mm (47.2 in) and Z is 1,200 mm (47.2 in). Rapid traverse is 40 / 40 / 40 m/min and the cutting feed rate is 32 m/min.
03
They share the 22 / 26 kW (29.5 / 34.9 hp) spindle motor, 6,000 rpm and the 2,000 kg (4,409 lb) load rating. The VHM-1000 offers a 1,000 x 1,000 mm (39.4 x 39.4 in) table with 1,600 mm (63.0 in) of X and 1,300 mm (51.2 in) of Y and Z. Choose by part size.
04
The listed capacity is 40 pcs. Magazines of 60 / 90 / 120 / 180 / 240 tools are shown as options in the same row of the specification table.
