Vision Wide Horizontal Machining Centers (HMC)

Vision Wide VHT-1250

Q: How much does the Vision Wide VHT-1250 cost?

The price estimate for the Vision Wide VHT-1250 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-vht-1250#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

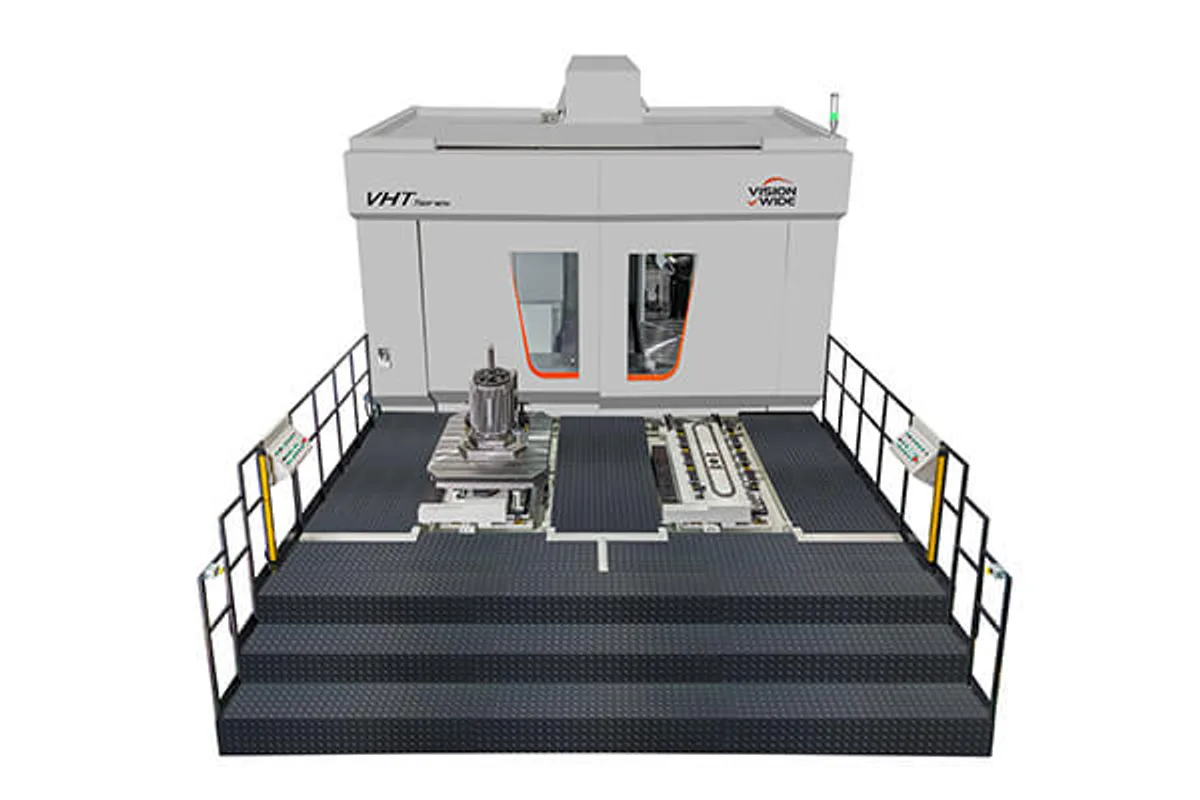

Vision Wide VHT series (series photo on the maker's page for VHT-1250)

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

6,000 rpm

Tool Capacity

40 pcs / (60 / 90 / 120 / 180 / 240 pcs Opt.)

Table Size

1,250 x 1,250 mm (49.2 x 49.2 in)

x axis travel

2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.)

y axis travel

1,300 / 1,600 mm (51.2 / 63.0 in) (Opt.)

z axis travel

1,300 mm (51.2 in)

How much does the Vision Wide VHT-1250 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide VHT-1250 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A 1,250 x 1,250 mm (49.2 x 49.2 in) table that carries 5,000 kg (11,023 lb) in its central area defines the Vision Wide VHT-1250, the middle model of the VHT horizontal machining center series.

Buyers comparing the three VHT sizes should know that only two rows of the table differ between them: table size and table load. X travel is 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.), Y is 1,300 / 1,600 mm (51.2 / 63.0 in) (Opt.) and Z is 1,300 mm (51.2 in) across the series. So the question for this model is simply whether 5,000 kg (11,023 lb) is enough. The VHT-1000 stops at 3,500 kg (7,716 lb); the VHT-1416 goes to 8,000 kg (17,637 lb).

How does a 1,250 mm square table sit inside those strokes? With the standard Y of 1,300 mm the spindle covers slightly more than the table width in height, and Z equals it, so a cube-shaped workpiece filling the table is close to the limit of what the base travels reach. The optional 1,600 mm (63.0 in) Y is worth pricing for tall parts.

The spindle runs to 6,000 rpm on a 22 / 26 kW (29.5 / 34.9 hp) motor. Rapids are 20 / 15 / 20 m/min, Y being the slowest axis, and the cutting feed rate is 10 m/min. Forty tools are listed, with magazines of 60, 90, 120, 180 and 240 as options.

Full Specifications

Parameter	Value
X Axis Travel	2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.)
Y Axis Travel	1,300 / 1,600 mm (51.2 / 63.0 in) (Opt.)
Z Axis Travel	1,300 mm (51.2 in)
Table Size	1,250 x 1,250 mm (49.2 x 49.2 in)
Max Table Load Central Area	5,000 kg (11,023 lb)
Max Spindle Speed	6,000 rpm
Spindle Power Cont 30 Min	22 / 26 kW (29.5 / 34.9 hp)
Cutting Feed Rate	10 m/min
Rapid Traverse Xyz	20 / 15 / 20 m/min
Tool Capacity	40 pcs / (60 / 90 / 120 / 180 / 240 pcs Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

5,000 kg (11,023 lb) table load in the central area
1,250 x 1,250 mm (49.2 x 49.2 in) table
Optional travels of 2,500 mm (98.4 in) in X and 1,600 mm (63.0 in) in Y
22 / 26 kW (29.5 / 34.9 hp) at 6,000 rpm
Tool magazine expandable from 40 pcs to 240

Limitations

Y rapid is 15 m/min, the slowest of the 20 / 15 / 20 m/min set
Cutting feed rate is 10 m/min
Z travel of 1,300 mm (51.2 in) has no optional extension in the table
The VHT-1416 is needed for loads above 5,000 kg (11,023 lb)

Best For

Machine bases, large valve bodies and gear cases up to 5,000 kg (11,023 lb) Cube-shaped parts filling a 1,250 mm square table Heavy horizontal milling at up to 6,000 rpm

Frequently Asked Questions

01 What is the load capacity of the Vision Wide VHT-1250?

The maximum table load is 5,000 kg (11,023 lb) in the central area. The table measures 1,250 x 1,250 mm (49.2 x 49.2 in).

02 Which travels does the VHT-1250 offer?

X is listed as 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) and Y as 1,300 / 1,600 mm (51.2 / 63.0 in) (Opt.). Z travel is 1,300 mm (51.2 in). The longer X and Y figures are options.

03 How does the VHT-1250 compare with the VHT-1416?

The VHT-1416 has a 1,400 x 1,600 mm (55.1 x 63.0 in) table rated for 8,000 kg (17,637 lb). The VHT-1250 has a 1,250 x 1,250 mm (49.2 x 49.2 in) table rated for 5,000 kg (11,023 lb). All other rows of the specification table match.

04 What spindle and tool magazine does the VHT-1250 have?

Spindle speed is 6,000 rpm and spindle power is 22 / 26 kW (29.5 / 34.9 hp). The tool magazine is listed as 40 pcs, with 60 / 90 / 120 / 180 / 240 as optional sizes.
