Vision Wide VHT-1000

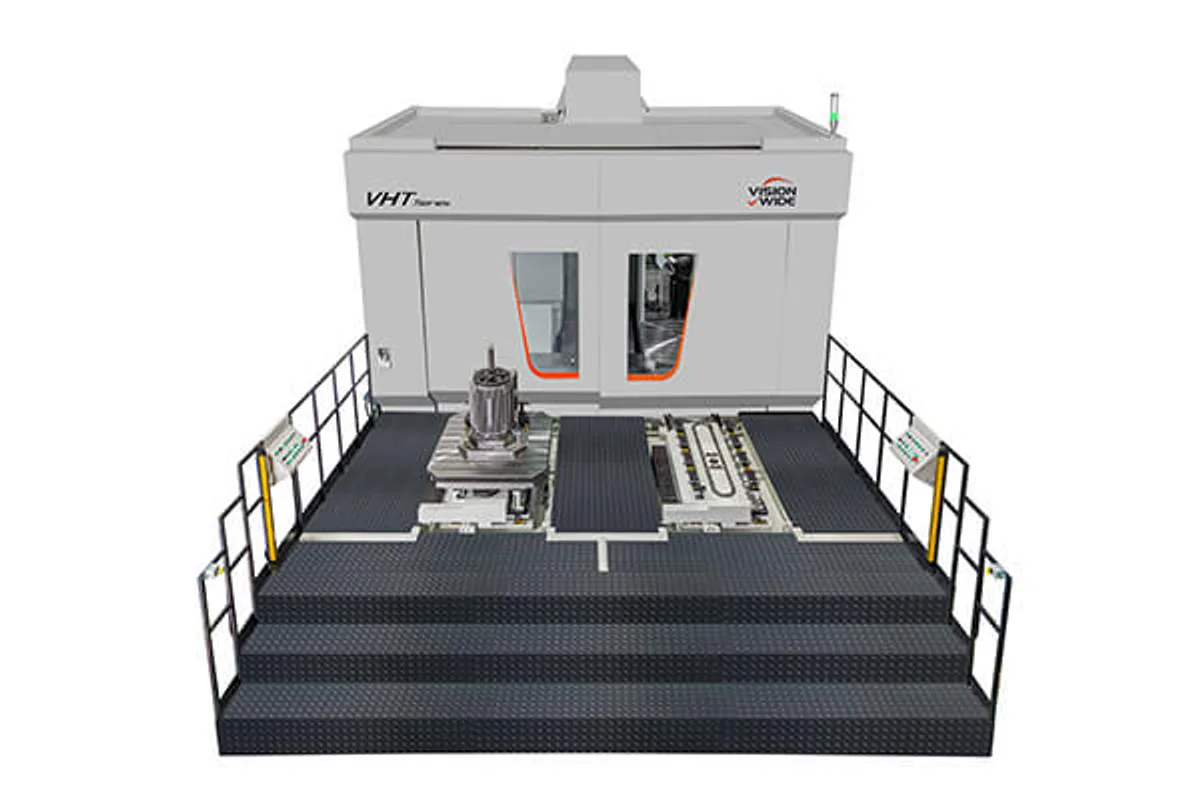

Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide VHT-1000 cost?
Price estimate
We do not have a price for the Vision Wide VHT-1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide VHT-1000 is the heavy-load counterpart to the VHM line: a horizontal machining center with a 1,000 x 1,000 mm (39.4 x 39.4 in) table rated for 3,500 kg (7,716 lb) in the central area. It is the smallest of the three VHT models.
Unusually, the travels do not change with the model. Every VHT lists X as 2,000 / 2,500 mm (78.7 / 98.4 in) and Y as 1,300 / 1,600 mm (51.2 / 63.0 in), with the second figure in each pair marked Opt., and Z as 1,300 mm (51.2 in). On the VHT-1000 that means a one-metre table under a stroke at least twice its width, so long workpieces can overhang the table and still be machined end to end.
Spindle data are 6,000 rpm and 22 / 26 kW (29.5 / 34.9 hp). The axes are geared for load, not pace: rapids are 20 / 15 / 20 m/min and the cutting feed rate is 10 m/min. The VHM-1000, on the same table size, lists 40 / 40 / 40 m/min but only 2,000 kg (4,409 lb).
Within the VHT series the next step is the VHT-1250, with a 1,250 x 1,250 mm (49.2 x 49.2 in) table and 5,000 kg (11,023 lb). Since the travels and spindle are common, the VHT-1000 is the choice when the parts are heavy for their footprint and a compact table keeps the spindle close to the work. The magazine is 40 pcs, with 60 to 240 tools optional.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| Y Axis Travel | 1,300 / 1,600 mm (51.2 / 63.0 in) (Opt.) |
| Z Axis Travel | 1,300 mm (51.2 in) |
| Table Size | 1,000 x 1,000 mm (39.4 x 39.4 in) |
| Max Table Load Central Area | 3,500 kg (7,716 lb) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Power Cont 30 Min | 22 / 26 kW (29.5 / 34.9 hp) |
| Cutting Feed Rate | 10 m/min |
| Rapid Traverse Xyz | 20 / 15 / 20 m/min |
| Tool Capacity | 40 pcs / (60 / 90 / 120 / 180 / 240 pcs Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,500 kg (7,716 lb) central-area table load on a 1,000 x 1,000 mm (39.4 x 39.4 in) table
- X travel listed as 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.), far longer than the table
- 22 / 26 kW (29.5 / 34.9 hp) spindle motor at 6,000 rpm
- Magazine options from 40 pcs up to 240
Limitations
- Rapids of 20 / 15 / 20 m/min and a 10 m/min cutting feed rate are well below the VHM-1000
- The longer X and Y strokes are options, not the base travel
- Lowest table load in the VHT series; the VHT-1250 takes 5,000 kg (11,023 lb)
- Z travel is fixed at 1,300 mm (51.2 in)
Best For
Frequently Asked Questions
01
3,500 kg (7,716 lb), specified for the central area of the 1,000 x 1,000 mm (39.4 x 39.4 in) table. That compares with 2,000 kg (4,409 lb) for the VHM-1000 on the same table size.
02
The table lists X as 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.), Y as 1,300 / 1,600 mm (51.2 / 63.0 in) (Opt.) and Z as 1,300 mm (51.2 in). The same travel rows apply to all three VHT models.
03
Rapid traverse is 20 / 15 / 20 m/min on X, Y and Z, and the cutting feed rate is 10 m/min. These are modest figures, in keeping with the heavy table loads the series is rated for.
04
Table size and load only. The VHT-1250 has a 1,250 x 1,250 mm (49.2 x 49.2 in) table for 5,000 kg (11,023 lb); the VHT-1000 has 1,000 x 1,000 mm (39.4 x 39.4 in) for 3,500 kg (7,716 lb). Travels, spindle, rapids and magazine are listed identically.
