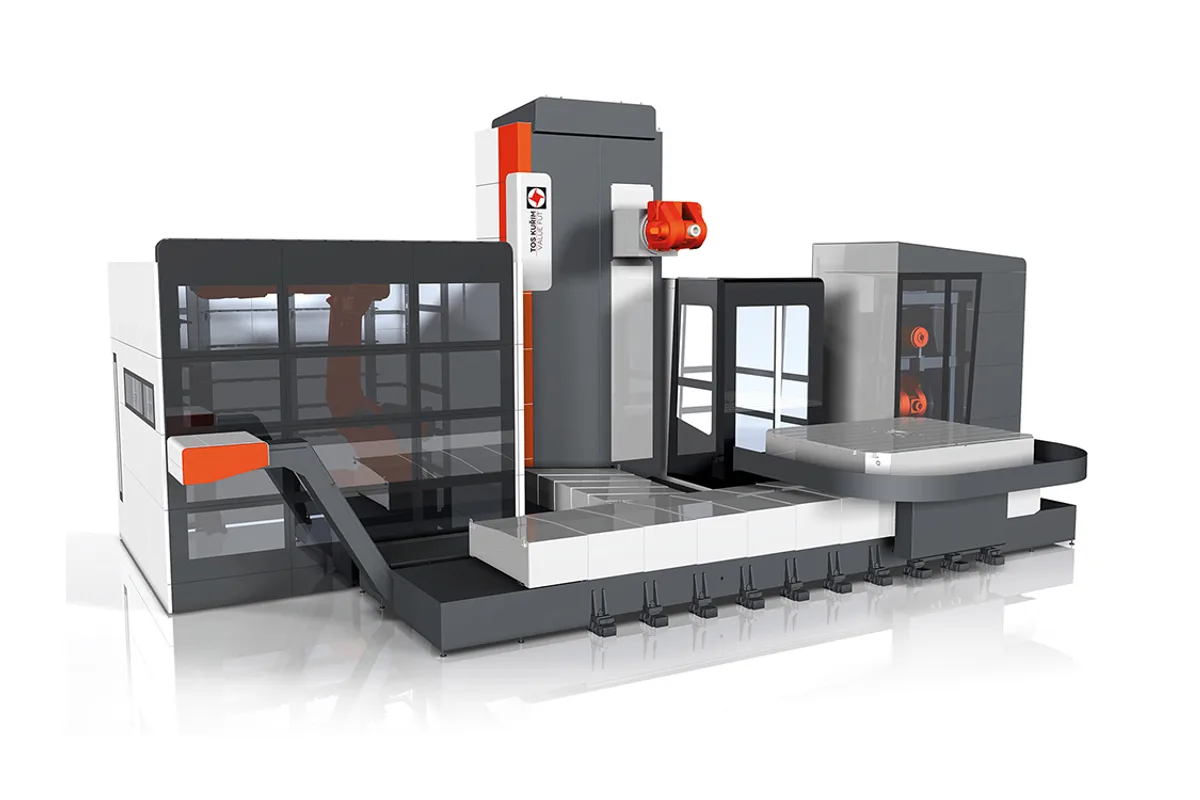

TOS Kuřim FUT 150-125
Image: tos-kurim.cz, TOS Kuřim
Key Specifications
Max Spindle
x axis travel
y axis travel
z axis travel
w axis travel headstock extension
feed range x
How much does the TOS Kuřim FUT 150-125 cost?
Price estimate
We do not have a price for the TOS Kuřim FUT 150-125 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Add an extending headstock to the base FUT and you have the TOS Kuřim FUT 150-125. The W axis, which the catalogue calls headstock extension, is 1,250/1,500 mm (49.2/59.1 in). It comes on top of a column travel in Z of 1,500 mm (59.1 in).
That one axis changes the machine's character from a fast horizontal machining centre into something much closer to a table-type boring mill. Z moves the whole column toward the part; W then pushes the headstock into it. Bores deep inside a gearbox housing, or faces set back behind a flange, come within reach without long tool extensions. W is no slow auxiliary axis, either. Its feed row matches the main axes at 1 - 20,000 mm/min, with 1 - 30,000 mm/min in brackets.
The part sits on a rotary table that also provides the X travel of 3,000/4,000/5,000 mm (118.1/157.5/196.9 in). Table sizes are 1,600 x 1,800 / 1,800 x 2,200 / 2,000 x 2,400 mm (63.0 x 70.9 / 70.9 x 86.6 / 78.7 x 94.5 in). Vertical travel is 2,000/2,500/3,000 mm (78.7/98.4/118.1 in).
The spindle is listed at 4,000/6,000 rpm and the drive at 30/37/45 kW (40/50/60 hp), the same as on the FUT 150. Linear roller guideways, thermal stabilization of the headstock and heads, and axial tool cooling are listed for the series.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000/4,000/5,000 mm (118.1/157.5/196.9 in) |
| Y Axis Travel | 2,000/2,500/3,000 mm (78.7/98.4/118.1 in) |
| Z Axis Travel | 1,500 mm (59.1 in) |
| W Axis Travel Headstock Extension | 1,250/1,500 mm (49.2/59.1 in) |
| Feed Range X | 1 - 20,000 mm/min (1 - 30,000 mm/min) |
| Feed Range Y | 1 - 20,000 mm/min (1 - 30,000 mm/min) |
| Feed Range Z | 1 - 20,000 mm/min (1 - 30,000 mm/min) |
| Feed Range W | 1 - 20,000 mm/min (1 - 30,000 mm/min) |
| Max Spindle Speed | 4,000/6,000 rpm |
| Rotary Table Size | 1,600 x 1,800 / 1,800 x 2,200 / 2,000 x 2,400 mm (63.0 x 70.9 / 70.9 x 86.6 / 78.7 x 94.5 in) |
| Drive Power | 30/37/45 kW (40/50/60 hp) |
Specifications sourced from tos-kurim.cz — verified 2026-10-04
Strengths & Limitations
Strengths
- W axis (headstock extension) of 1,250/1,500 mm (49.2/59.1 in)
- W feeds as fast as the main axes: 1 - 20,000 mm/min, with 1 - 30,000 mm/min in brackets
- Rotary table up to 2,000 x 2,400 mm for multi-sided work
- Thermal stabilization of the headstock and exchangeable spindle heads
Limitations
- Column travel in Z is 1,500 mm (59.1 in); the FUT 200-125 has 2,000 mm (78.7 in)
- Drive power is the single 30/37/45 kW row for the whole series
- The catalogue does not say how the headstock is supported at full extension or how much load it carries there
- X is limited to 3,000/4,000/5,000 mm
Best For
Frequently Asked Questions
01
The catalogue does not define it. The two models with that suffix are the ones with a W axis, and the shorter of the two W strokes listed is 1,250 mm, so the number appears to refer to the headstock extension. The W row for this model reads 1,250/1,500 mm (49.2/59.1 in).
02
The column travels 1,500 mm (59.1 in) in Z and the headstock extends 1,250/1,500 mm (49.2/59.1 in) in W. How much of the combined travel is usable depends on the table size and where the part sits, so check a layout drawing for deep work.
03
Yes, going by its feed row. W is listed at 1 - 20,000 mm/min, with 1 - 30,000 mm/min in brackets, which is the same range as X, Y and Z. That differs from the cross-rail W axes of the gantry series, which top out at 1 - 4,000 mm/min in brackets on the FRUF-A 250-500.
04
Three rotary tables: 1,600 x 1,800 / 1,800 x 2,200 / 2,000 x 2,400 mm (63.0 x 70.9 / 70.9 x 86.6 / 78.7 x 94.5 in). The rotary table moves along X, with travel of 3,000/4,000/5,000 mm (118.1/157.5/196.9 in).
