Waldrich Coburg PowerTec
Key Specifications
X Travel
Y Travel
Z Travel
Spindle Taper
Spindle Power
Accuracy
How much does the Waldrich Coburg PowerTec cost?
Estimated price range
Our best estimate for a cnc boring machine in this class — not a quote from Waldrich Coburg. Configuration moves it a long way.
Overview

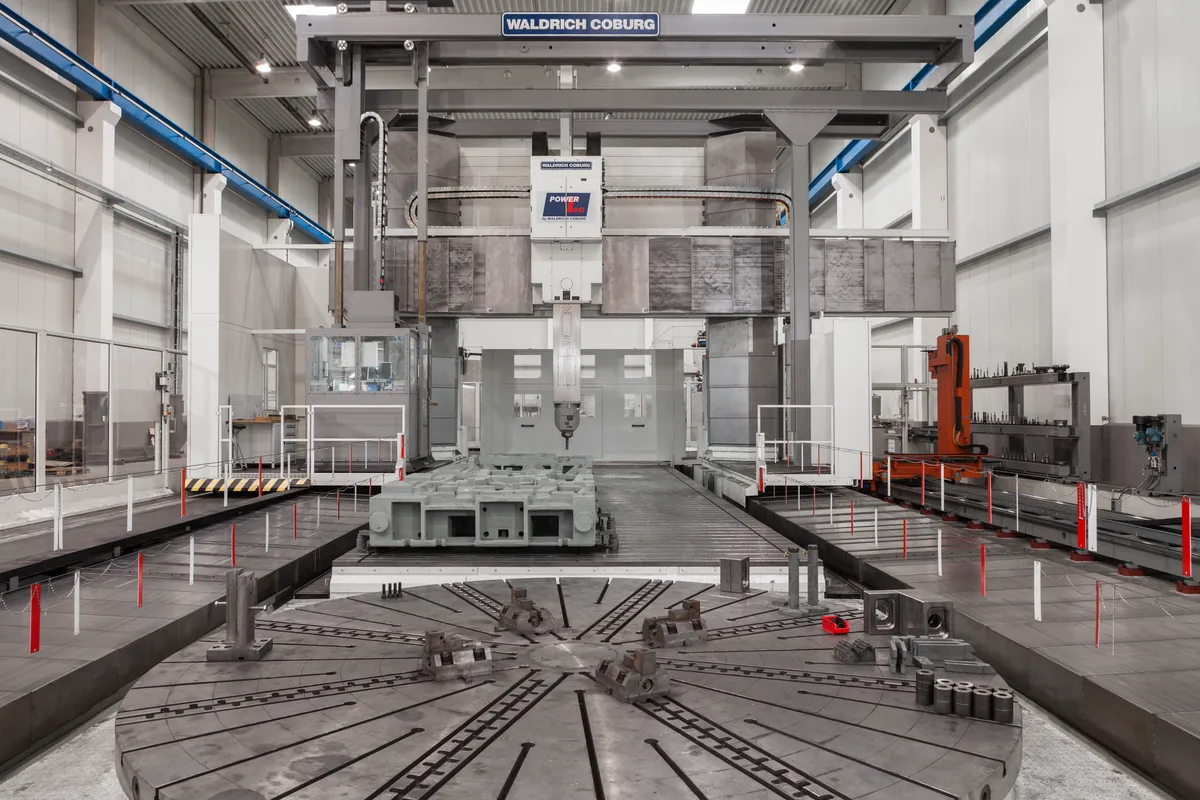

The Waldrich Coburg PowerTec is a large boring and milling machine built around a 150 or 200 mm (5.9 or 7.9 in) spindle, with X travel listed from 3,000 - 20,000+ mm (118.1 - 787.4+ in) depending on configuration. The table on this page has not been checked against a maker page, so what follows describes the listed figures and should be confirmed in a quotation.
Y travel runs 3,000 - 5,000 mm (118.1 - 196.9 in) and Z travel 2,000 - 3,000 mm (78.7 - 118.1 in). The spindle W axis extends up to 1,500 mm (59.1 in), which is the reach available for deep bores. X and Y run on hydrostatic guideways. Workholding is listed as a floor plate, a CNC rotary table or a T-slot table, so the part envelope follows from how the installation is laid out and not from one fixed table size.
Spindle power is listed at 60 - 100 kW (80 - 134 hp) with speeds of 2,000 - 3,000 rpm depending on configuration, and the taper is ISO 50 or Capto C8. Speeds in that band point to large-diameter cutters and boring tools, not small end mills. The magazine holds 80 - 120 tools and the control row lists a Siemens 840D SL.
Listed positioning accuracy is 0.006 mm (0.00024 in) with repeatability of 0.004 mm (0.00016 in). The table does not say over what length these apply, which matters on axes this long. Machine weight is 80,000 - 200,000 kg (176,370 - 440,925 lb) depending on configuration.
Full Specifications
| Parameter | Value |
|---|---|
| Spindle Diameter | 150 or 200 mm (5.9 or 7.9 in) |
| X-Axis Travel | 3,000 - 20,000+ mm (118.1 - 787.4+ in) configurable |
| Y-Axis Travel | 3,000 - 5,000 mm (118.1 - 196.9 in) |
| Z-Axis Travel | 2,000 - 3,000 mm (78.7 - 118.1 in) |
| Travel W Spindle | Up to 1,500 mm (59.1 in) |
| Spindle Speed | 2,000 - 3,000 rpm depending on configuration |
| Spindle Motor Power | 60 - 100 kW (80 - 134 hp) |
| Spindle Taper | ISO 50 / Capto C8 |
| Guideway Type | Hydrostatic on X and Y axes |
| Table Type | Floor plate, CNC rotary table, or T-slot table |
| Positioning Accuracy | 0.006 mm (0.00024 in) |
| Repeatability | 0.004 mm (0.00016 in) |
| Tool Magazine Capacity | 80 - 120 tools |
| CNC Control | Siemens 840D SL |
| Machine Weight | 80,000 - 200,000 kg (176,370 - 440,925 lb) depending on configuration |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Spindle diameter of 150 or 200 mm (5.9 or 7.9 in) with up to 1,500 mm (59.1 in) of W-axis travel
- Hydrostatic guideways are listed on the X and Y axes
- X travel listed as configurable from 3,000 - 20,000+ mm (118.1 - 787.4+ in)
- Spindle power of 60 - 100 kW (80 - 134 hp) and a magazine of 80 - 120 tools
- Floor plate, CNC rotary table or T-slot table can be chosen as the workholding base
Limitations
- The listed figures have not been checked against a Waldrich Coburg page, and nearly every row is a range that depends on configuration
- Spindle speed of 2,000 - 3,000 rpm rules out high-speed work with small tools
- Machine weight of 80,000 - 200,000 kg (176,370 - 440,925 lb) requires a purpose-built foundation
- Hydrostatic guideways are listed for X and Y only; the table does not state the guideway type on Z or W
Best For
Frequently Asked Questions
01
The listed figures are 3,000 - 20,000+ mm (118.1 - 787.4+ in) in X, 3,000 - 5,000 mm (118.1 - 196.9 in) in Y and 2,000 - 3,000 mm (78.7 - 118.1 in) in Z, with up to 1,500 mm (59.1 in) on the spindle W axis. X is described as configurable, so the travel of a given machine is fixed at order.
02
The spindle diameter is 150 or 200 mm (5.9 or 7.9 in), with 60 - 100 kW (80 - 134 hp) and 2,000 - 3,000 rpm depending on configuration. The taper is ISO 50 or Capto C8. The table does not tie a power or speed figure to either spindle diameter, and it gives no torque.
03
Positioning accuracy is listed as 0.006 mm (0.00024 in) and repeatability as 0.004 mm (0.00016 in). No measuring length or standard is given with them, so ask for the acceptance values that apply to the travels being quoted, particularly on a long X axis.
04
Machine weight is listed as 80,000 - 200,000 kg (176,370 - 440,925 lb) depending on configuration. At that scale the foundation, the crane capacity and the route into the building have to be planned together with the machine layout.
