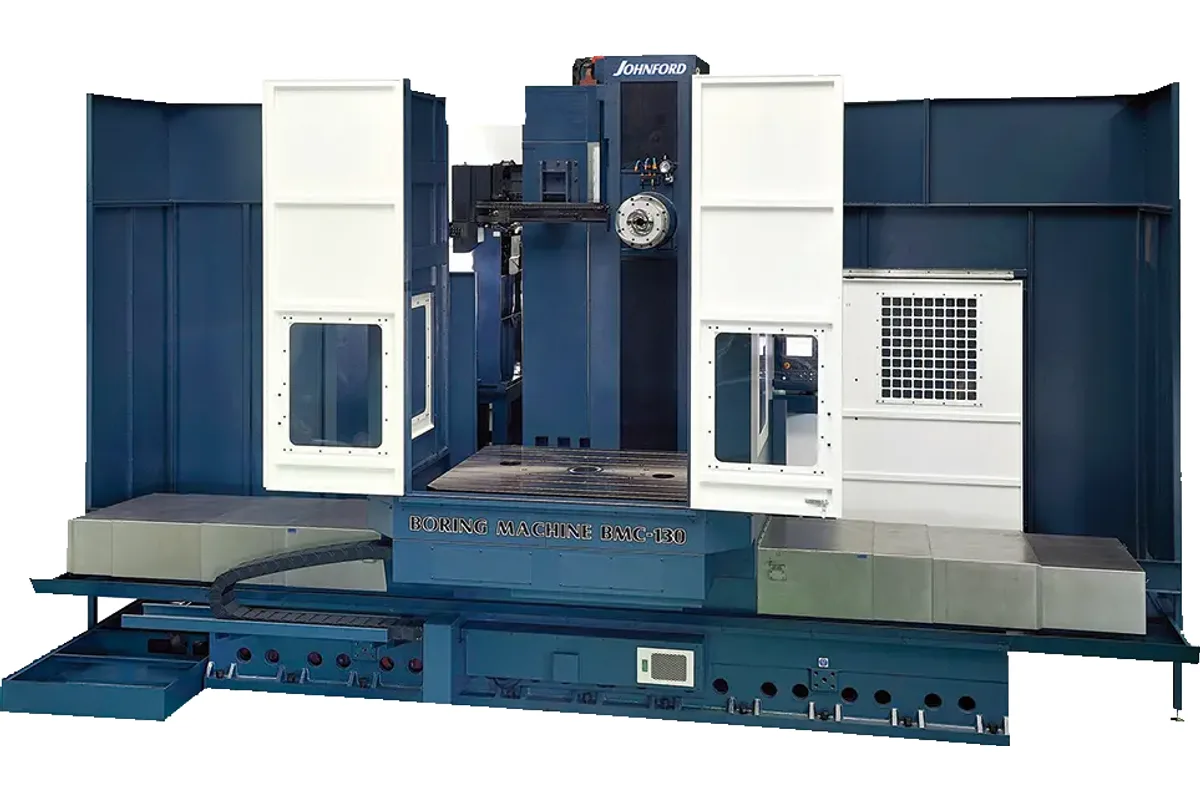

Johnford BMC-130
Image: johnford.com.tw, Johnford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Johnford BMC-130 cost?
Price estimate
We do not have a price for the Johnford BMC-130 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Middle of three table-type boring machining centers, the Johnford BMC-130 pairs a Ø130 mm (Ø5.1 in) spindle with a 30 / 37 kW (40.2 / 49.6 hp) motor. Its travels are 3,000 mm (118 in) in X, 2,300 mm (90.5 in) in Y, 1,600 mm (63 in) in Z and 700 mm (27.5 in) in W.
The interesting row in the table is the gearbox. Spindle speed is 0-2,500 rpm, and the number of speed steps is 2 as standard or 4 as an option. More steps keep the motor in its power band over a wider span of spindle speeds, which is what a shop wants if the same machine must swing a large facing head slowly in the morning and drill at the top of the range in the afternoon. The BMC-110 has 2 steps only; the BMC-160 has 4.
Work size goes up a class from the BMC-110. The table is 1,800 x 1,600 mm (70.9 x 63 in) with a 15,000 kg (33,000 lb) rating, and the spindle centre rises as far as 2,300 mm (90.5 in) above it. Large gearbox housings, diesel engine blocks, compressor casings and injection machine platens fit that envelope.
Allow for the space. The machine is 7,370 mm (290.2 in) long, 7,600 mm (299.2 in) wide and 4,675 mm (184.1 in) high, and weighs 33,000 kg (72,600 lb). A standard enclosure with table and operator covers comes with it, along with a chain type chip conveyor and trolley.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,800 x 1,600 mm (70.9 x 63 in) |
| Max Table Load | 15,000 kg (33,000 lb) |
| X Axis Travel | 3,000 mm (118 in) |
| Y Axis Travel | 2,300 mm (90.5 in) |
| Z Axis Travel | 1,600 mm (63 in) |
| W Axis Travel | 700 mm (27.5 in) |
| Distance Spindle Nose to Table Center | 700-2,300 mm (27.5-90.5 in) |
| Distance Spindle Center to Table Top | 0-2,300 mm (0-90.5 in) |
| Boring Spindle Diameter | Ø130 mm (Ø5.1 in) |
| Spindle Taper | No. 50 |
| Spindle Speed | 0-2,500 rpm |
| Spindle Speed Steps | 2 / 4 (opt.) |
| Spindle Motor Power | 30 / 37 kW (40.2 / 49.6 hp) (cont./30 min) |
| Rapid Traverse Xyzw | 12 / 12 / 12 / 6 m/min (472 / 472 / 472 / 236 ipm) |
| Cutting Feed Rate | 1~6,000 mm/min (0.04~236 ipm) |
| Table Speed B Axis | 4 rpm |
| Tool Capacity | 60 |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 25 kg (55 lb) |
| Tool Selection | Bi-direction Random Type Shortest Path |
| Machine Length | 7,370 mm (290.2 in) |
| Machine Width | 7,600 mm (299.2 in) |
| Machine Height | 4,675 mm (184.1 in) |
| Machine Weight | 33,000 kg (72,600 lb) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 30 / 37 kW (40.2 / 49.6 hp) spindle motor with 2 speed steps, or 4 as an option
- Ø130 mm (Ø5.1 in) boring spindle with 700 mm (27.5 in) of W travel
- 3,000 x 2,300 mm of X and Y travel
- Table rated 15,000 kg (33,000 lb) with a standard 0.001° B axis
- Standard enclosure with table and operator covers
Limitations
- The 4-step gearbox is an option on this size
- Top spindle speed of 2,500 rpm, below the 3,000 rpm of the BMC-110
- The table shares its 1,600 mm (63 in) dimension and Z travel with the BMC-110
- 7,600 mm (299.2 in) of width to accommodate
Best For
Frequently Asked Questions
01
A Ø130 mm (Ø5.1 in) boring spindle with a No. 50 taper, 0-2,500 rpm, driven by a 30 / 37 kW (40.2 / 49.6 hp) motor (continuous / 30 minute rating). Speed steps are 2, or 4 as an option.
02
The W axis moves the boring spindle 700 mm (27.5 in). The distance from spindle nose to table centre is 700-2,300 mm (27.5-90.5 in), and the spindle centre is 0-2,300 mm (0-90.5 in) above the table top.
03
The BMC-160, with a Ø160 mm (Ø6.29 in) spindle, 4,000 mm (157.4 in) of X, 3,000 mm (118.1 in) of Y, a 2,000 x 2,500 mm (78.7 x 98.4 in) table rated 25,000 kg (55,000 lb) and a weight of 50,000 kg (110,000 lb).
04
Fanuc 0i-MF PLUS with a 10.4 in LCD and Manual Guide i. Fanuc 31i-MB PLUS with a 15 in LCD, Siemens SINUMERIK 828D with a 10.4 in LCD and Siemens SINUMERIK ONE with a 15 in LCD are optional.
