AWEA BL-3024S

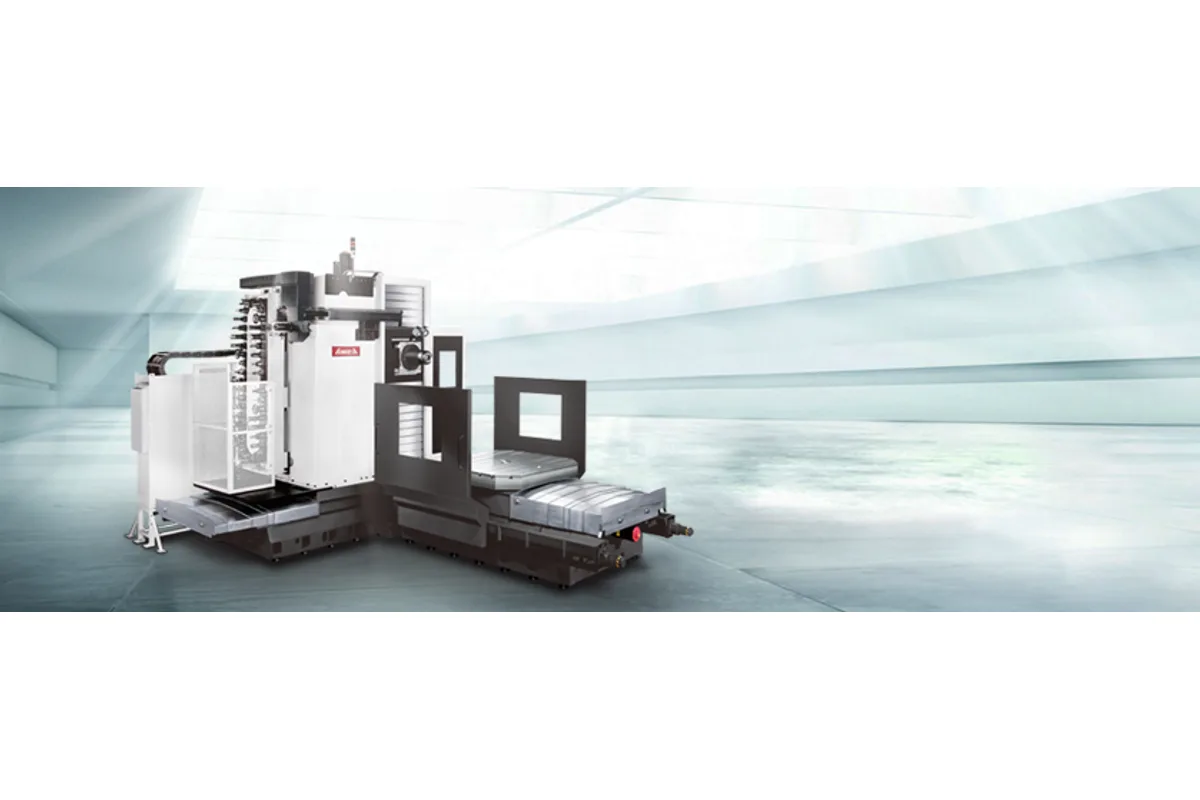

Image: awea.com, AWEA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the AWEA BL-3024S cost?
Price estimate
We do not have a price for the AWEA BL-3024S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Six of AWEA's BL boring mills use the quill head, and the AWEA BL-3024S is the one with 3,000 mm (118.1 in) of X under the tall column. Y travel is 2,400 mm (94.5 in), Z is 1,300 mm (51.2 in) and the quill adds 600 mm (23.6 in) on W.
Start with the tooling, because on a boring mill it sets the limits. The taper is BT50. A tool can be 400 mm (15.7 in) long and weigh 25 kg (55 lb); its diameter can be Ø125 mm (Ø4.9 in) in a full magazine or Ø250 mm (Ø9.8 in) with empty neighbours. Anything bigger is outside what the changer is listed for. Forty tools is the standard count.
Behind those tools is a geared spindle: 2,400 rpm at the top, 1,308 Nm (965 lb-ft) of torque, and according to AWEA the maximum is reached under 189 rpm. A Ø250 mm cutter runs slowly in steel, so this is where the gear box pays off.
Structure and drives are common to the series. AWEA cites FEM analysis for the castings and linear guide ways on the feed axes. Ball screws are driven directly by FANUC αi series motors.
This size weighs 35,500 kg (78,263 lb). The coolant tank is 480 liter, machine height is 5,115 mm (201.4 in), and the VDI rows are P= 0.020 mm and Ps= 0.015 mm. A shop that does not need the height can take the BL-3018S at 34,000 kg (74,956 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 2,400 mm (94.5 in) |
| Z Axis Travel | 1,300 mm (51.2 in) |
| W Axis Travel | 600 mm (23.6 in) |
| Table Size | 1,600 x 1,800 mm (63.0 x 70.9 in) |
| Max Table Load | 15,000 kg (33,069 lb) |
| Distance Spindle Nose to Table | 885 mm (34.8 in) |
| Boring Spindle Size | Quill with Ø120 mm |
| Spindle Motor Power | 22 / 26 kW (30 / 35 HP) |
| Max Spindle Speed | 2,400 rpm |
| Spindle Torque | 1,308 Nm (965 lb-ft) |
| Spindle Taper | BT50 |
| Rapid Traverse Xyz | 12,000 mm/min (472 ipm) |
| Rapid Traverse W | 5,000 mm/min (197 ipm) |
| Cutting Feed Rate | 1 ~ 5,000 mm/min (0.04 ~ 197 ipm) |
| Tool Capacity | 40T |
| Max Tool Diameter (full magazine) | Ø125 / Ø250 mm (Ø4.9 / Ø9.8 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 25 kg (55 lb) |
| Positioning Accuracy Jis B 6338 | ± 0.01 mm / Full Travel |
| Positioning Accuracy VDI 3441 | P= 0.020 mm / Full Travel |
| Repeatability Jis B 6338 | ± 0.003 mm |
| Repeatability VDI 3441 | Ps= 0.015 mm |
| Power Requirement | 70 kVA, 220±10%, 3 phase, 50 / 60 Hz |
| Air Pressure Requirement | 5 ~ 8 (5) kg/cm² |
| Lubrication Tank Capacity | 4.6 liter |
| Coolant Tank Capacity | 480 liter |
| Machine Weight | 35,500 kg (78,263 lb) |
| Machine Height | 5,115 mm (201.4 in) |
Specifications sourced from awea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,000 x 2,400 mm (118.1 x 94.5 in) of X and Y with a torque spindle
- Maximum torque of 1,308 Nm (965 lb-ft) reached under 189 rpm
- BT50 tools up to Ø250 mm (Ø9.8 in), 400 mm (15.7 in) and 25 kg (55 lb) change automatically
- Ball screws driven directly by FANUC αi series motors
- 480 liter coolant tank with two augers and a chip conveyor as standard
Limitations
- Tools wider than Ø250 mm (Ø9.8 in) are outside the magazine limits
- 35,500 kg (78,263 lb), heavier than the BL-3018S at 34,000 kg (74,956 lb)
- Spindle limited to 2,400 rpm
- W rapid is 5,000 mm/min (197 ipm), under half the 12,000 mm/min (472 ipm) of X, Y and Z
Best For
Frequently Asked Questions
01
Up to Ø125 mm (Ø4.9 in) with all pockets filled, Ø250 mm (Ø9.8 in) with adjacent pockets empty, 400 mm (15.7 in) in length from the gauge line and 25 kg (55 lb) in weight. The standard magazine is 40T and a 60 tools magazine is optional.
02
At the bottom. AWEA states maximum torque output of 1,308 N-m under 189 rpm through the 2-step gear box. Top speed is 2,400 rpm, so the spindle is laid out for large cutters and boring bars, not small end mills.
03
Head and spindle. The BL-3024S has a Ø120 mm quill and a 2,400 rpm gear spindle with 1,308 Nm (965 lb-ft). The BL-3024FM has a ram of 480 x 470 mm section and a 6,000 rpm spindle with 600 Nm (443 lb-ft), and weighs 36,500 kg (80,467 lb).
04
W-axis rapid is 5,000 mm/min (197 ipm) over 600 mm (23.6 in) of travel. X, Y and Z rapid at 12,000 mm/min (472 ipm). The W feed system combines a ball screw with linear guide ways.
