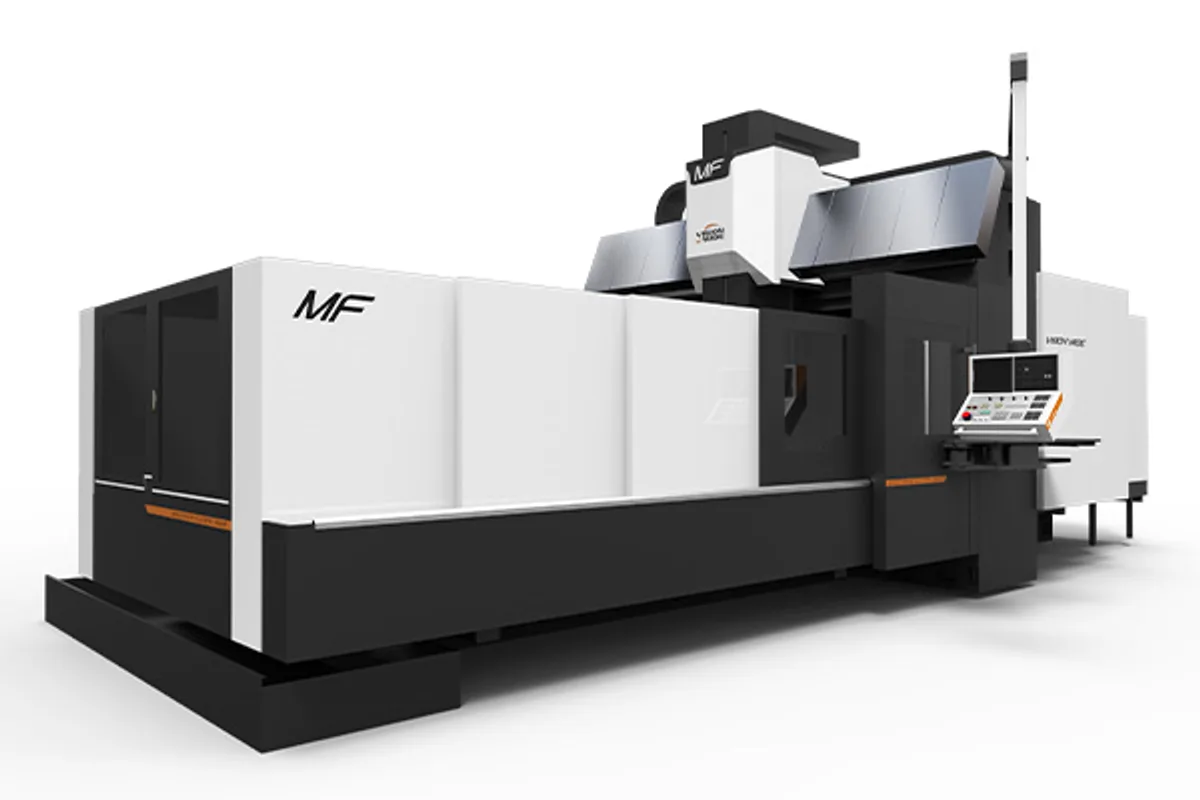

Vision Wide MF-4000
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide MF-4000 cost?
Price estimate
We do not have a price for the Vision Wide MF-4000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The table of the Vision Wide MF-4000 is driven through a gear reducer. Vision Wide says the X-axis power transmission with gear reducer device gives the servo motor high precision control and raises the driving torque; the page prints the gain as a range of 2-4.
The reason is the load. This table is 4,200x2,050 mm (165.4x80.7 in), rated for 13,000 kg (28,660 lb), and it slides on box ways, which resist motion far more than rolling guides do. Starting it, stopping it and holding a steady feed under a heavy cut all take thrust. A reducer between motor and screw multiplies the motor's torque and lets a servo of sensible size keep control of the table at low feed, where a direct-coupled motor would be working near stall.
The cost is speed, and the table shows it. The X rapid is 10 m/min, against 12 m/min for Y and Z. For Y and Z the maker takes the opposite approach, a direct-driven transmission with large servo motors.
X travel is 4,200 mm (165.4 in) and Y travel 2,300 mm (90.6 in). The X screw is supported and all three screws are cooled. Spindle power is 18.5/22 kW (24.8/29.5 hp) through a 4,000 rpm gear spindle.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,200 mm (165.4 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel | 920/1,020 mm (36.2/40.2 in)(Opt.) |
| Table Size | 4,200x2,050 mm (165.4x80.7 in) |
| Max Table Load | 13,000 kg (28,660 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp)(22/26 kW (29.5/34.9 hp) Opt.) (30/37 kW (40.2/49.6 hp) Opt.) |
| Max Spindle Speed | 4,000/6,000 rpm(Opt.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X:10 m/min Y/Z:12 m/min |
| Tool Capacity | 40/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- X-axis gear reducer drive for higher table thrust
- 4,200x2,050 mm (165.4x80.7 in) table for 13,000 kg (28,660 lb)
- Direct-driven Y and Z axes with large servo motors
- X-axis ball screw supporter and ball screw cooling are standard
Limitations
- X rapid of 10 m/min, below the 12 m/min of Y and Z
- The torque gain is given only as a range
- Cutting feed of 1-7,000 mm/min
Best For
Frequently Asked Questions
01
Through a gear reducer. Vision Wide says the X-axis power transmission with gear reducer device offers the servo motor high precision control and enhances the driving torque, giving a range of 2-4 for the gain.
02
X is 10 m/min and Y and Z are 12 m/min. The shorter MF-3000 lists 12 m/min on all three axes. Cutting feed is 1-7,000 mm/min.
03
13,000 kg (28,660 lb) on a 4,200x2,050 mm (165.4x80.7 in) table. X travel is 4,200 mm (165.4 in) and Y travel 2,300 mm (90.6 in).
04
By a direct-driven device on the Y-Z axis transmission with big servo motors, which the maker says ensures the best accuracy and acceleration.
