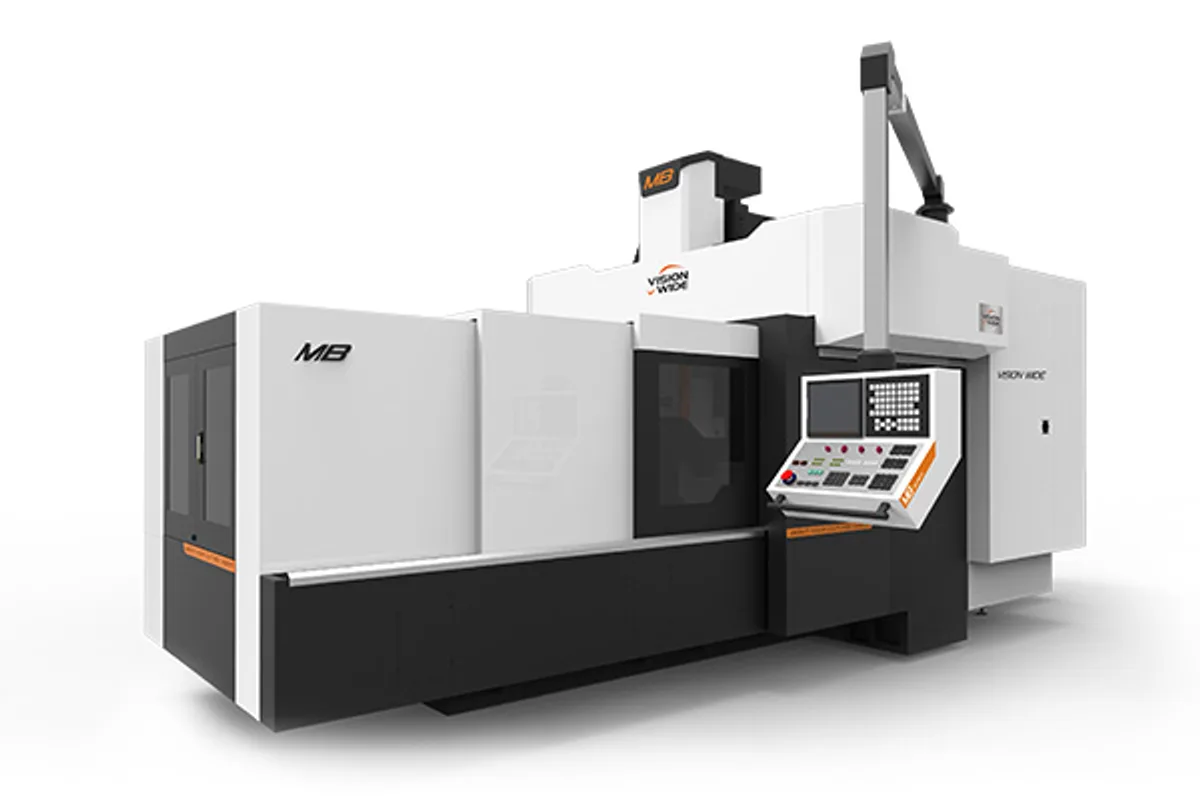

Vision Wide MB-2520
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide MB-2520 cost?
Price estimate
We do not have a price for the Vision Wide MB-2520 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Unlike some of the maker's milling machines, the Vision Wide MB-2520 is described with a tool changer. Vision Wide says the tool magazine is side-mounted on the column for a compact design, and that a cam-type ATC changes tool to tool in 3 sec, with random setting and large tool management.
A cam-type changer drives its arm through a mechanical cam, so the grip, pull, swing and insert happen as one fixed motion; that is how it reaches 3 sec without hydraulic sequencing. Random setting means a returned tool goes into the nearest empty pocket and the control tracks where it is. Large tool management reserves the pockets beside an oversize cutter, which on a heavy mill is used often, since big face mills are its staple.
The table's tool capacity row reads 32/40 pcs(OPT.). The accessory lists name a 60 tools magazine as an option; the standard entry on the page is garbled and cannot be read as a figure, so the capacity should be confirmed.
The machine has 2,500 mm (98.4 in) of X, 2,000 mm (78.7 in) of Y and a 2,500×1,700 mm (98.4×66.9 in) table for 10,000 kg (22,046 lb). The spindle is a 4,000 rpm two-step gear type on 18.5/22 kW (24.8/29.5 hp). Rapids are 15 m/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,500 mm (98.4 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel | 800/1,020 mm (31.5/40.2 in)(OPT..) |
| Table Size | 2,500×1,700 mm (98.4×66.9 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) OPT.)(30/37 kW (40.2/49.6 hp) OPT.) |
| Spindle Speed 2 Step Gear | 4,000/6,000 rpm(OPT.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X/Y/Z：15 m/min |
| Tool Capacity | 32/40 pcs(OPT.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Cam-type ATC with a tool-to-tool change in 3 sec
- Random pocket setting and large tool management
- Side-mounted magazine keeps the machine compact
- 2,500×1,700 mm (98.4×66.9 in) table for 10,000 kg (22,046 lb)
Limitations
- The standard magazine entry on the maker's page is garbled
- Tool capacity differs between the table and the accessory lists
- Cutting feed of 1-7,000 mm/min
Best For
Frequently Asked Questions
01
Yes. Vision Wide describes a tool magazine side-mounted on the column and a cam-type ATC with tool-to-tool changing in 3 sec, with random setting and large tool management.
02
The specification table lists 32/40 pcs(OPT.). The accessory lists offer a 60 tools magazine with arm type ATC as an option, and the standard magazine entry is not printed cleanly. Confirm the size with Vision Wide.
03
X 2,500 mm (98.4 in), Y 2,000 mm (78.7 in), Z 800 mm or optionally 1,020 mm. The table is 2,500×1,700 mm (98.4×66.9 in) for 10,000 kg (22,046 lb).
04
15 m/min on X, Y and Z, with a cutting feed range of 1-7,000 mm/min. All three axes run on hand-scraped box ways.
