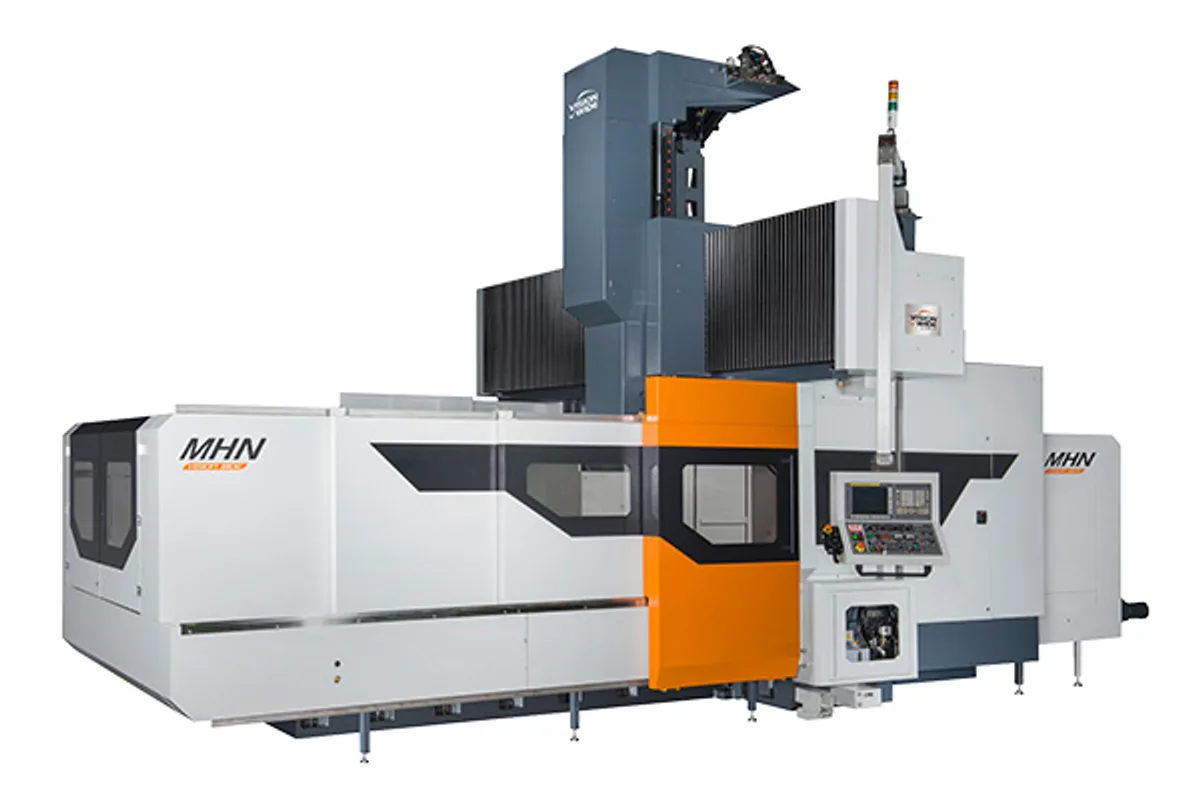

Vision Wide MHN-5040 / MHN-5047
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way single ballscrew
z axis travel linear way enclosed box ram dual ballscrews
max table load
How much does the Vision Wide MHN-5040 / MHN-5047 cost?
Price estimate
We do not have a price for the Vision Wide MHN-5040 / MHN-5047 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Both screws of the Vision Wide MHN-5040 / MHN-5047 are held along their length. Vision Wide describes an XY-axis precision supporter mechanism that prevents ball screw sag, enhances positioning accuracy and ensures ball screw lifetime, applied where X-axis travel exceeds 4m and Y-axis travel exceeds 3m.
Every MHN meets both conditions, and this pair does so by a wide margin: 5,100 mm (200.8 in) of X and 4,000 mm (157.5 in) or 4,700 mm (185.0 in) of Y. A Y screw nearly five metres long, slung across a beam, would droop visibly without support. The droop is not just a wear problem. The nut rides up and down the sag as it travels, and that shows as a small periodic error in position.
The maker's mention of lifetime is fair as well. A sagging screw bends once per revolution, and that fatigue loading is what eventually ends its life.
The table is 5,000×3,500 mm (196.9×137.8 in) for 24,000 kg (52,910 lb). X/Y rapid is 10 m/min and cutting feed 1-7,000 mm/min. Z rapid is 15 m/min on the standard box way head. The spindle is geared, 4,000 rpm, on 22/26 kW (29.5/34.9 hp). XYZ-axis linear scale feedback is an option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,100 mm (200.8 in) |
| Y Axis Travel | 4,000/ 4,700 mm (157.5/ 185.0 in) |
| Z Axis Travel Box Way Single Ballscrew | 920 / 1,020 mm (36.2 / 40.2 in)(Opt.) |
| Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews | 1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.) |
| Table Size | 5,000×3,500 mm (196.9×137.8 in) |
| Max Table Load | 24,000 kg (52,910 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp)(30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 4,000 / 6,000 rpm(Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear | 4,000 / 6,000 rpm(Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram Direct Driven | 10,000 rpm(Opt.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xy | 10 m/min |
| Rapid Traverse Z Box Way or Linear Way | 15 m/min |
| Rapid Traverse Z Enclosed Box Ram | 12 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- XY-axis precision supporter mechanism against ball screw sag
- 5,000×3,500 mm (196.9×137.8 in) table for 24,000 kg (52,910 lb)
- Y travel of 4,000 mm (157.5 in) or 4,700 mm (185.0 in)
- Optional XYZ-axis linear scale feedback
Limitations
- Linear scales are optional on axes this long
- Cutting feed of 1-7,000 mm/min
- No positioning accuracy figure is published
Best For
Frequently Asked Questions
01
By an XY-axis precision supporter mechanism, which the maker says prevents ball screw sag, enhances positioning accuracy and ensures ball screw lifetime. It applies where X travel exceeds 4m and Y travel exceeds 3m.
02
Table 5,000×3,500 mm (196.9×137.8 in), load 24,000 kg (52,910 lb). X travel 5,100 mm (200.8 in); Y travel 4,000/ 4,700 mm (157.5/ 185.0 in).
03
XYZ-axis linear scale feedback is on the optional accessory list. It is not part of the standard machine, so order it if positioning over the full travel matters.
04
X/Y rapid is 10 m/min. Z rapid is 15 m/min with the box way or linear way head and 12 m/min with the enclosed box ram. Cutting feed is 1-7,000 mm/min.
