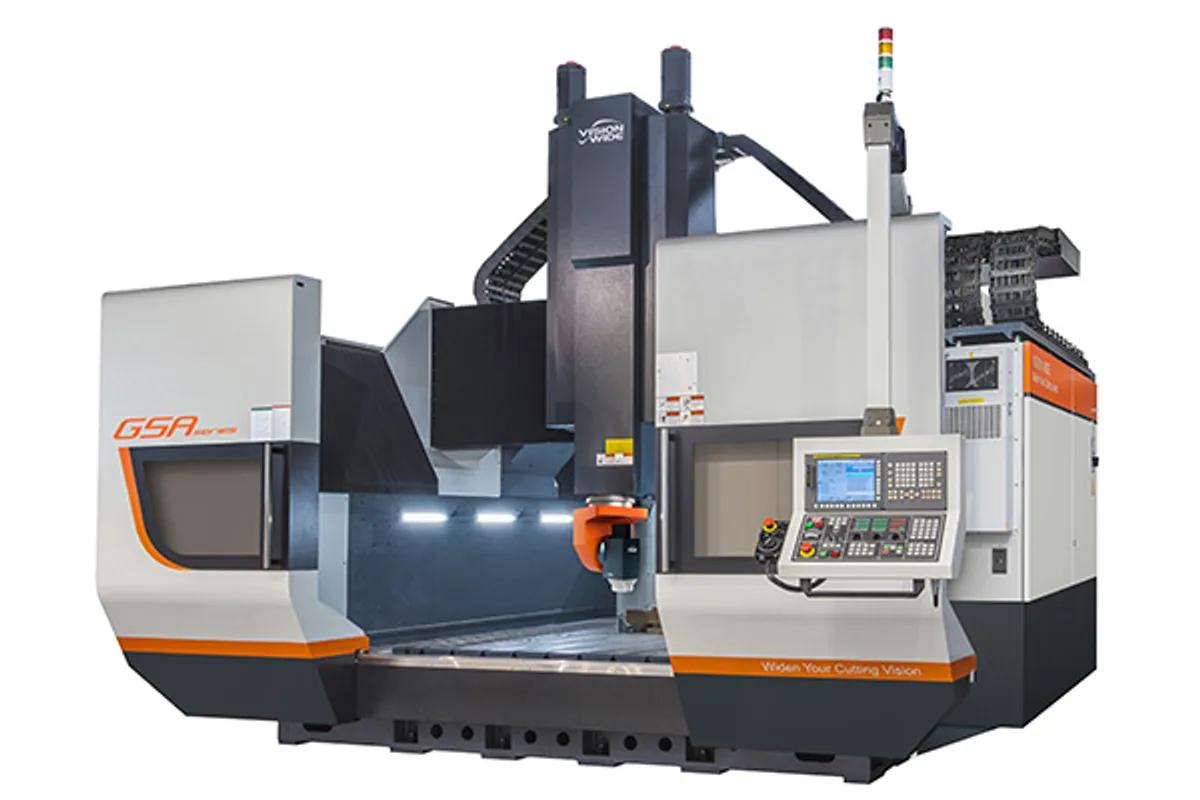

Vision Wide GSA-2227
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
spindle power cont 30 min
How much does the Vision Wide GSA-2227 cost?
Price estimate
We do not have a price for the Vision Wide GSA-2227 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Power is the surprise in the Vision Wide GSA-2227. A gantry with an indexing two-axis head and a 15,000 rpm spindle would usually be a finishing machine, yet the table lists 50/65 kW (67.1/87.2 hp), and the feature list speaks of above 40kW spindle driving capacity.
That changes what the head can do at an angle. With the spindle tilted toward a mold wall the tool can be short, and a short tool on an HSK-A100 interface with a 20kN clamping force can take a real roughing cut. So the same setup that finishes a cavity can also remove most of its stock, which is the claim behind the maker's phrase about shortening the cutting process.
The working area is 2,200 mm (86.6 in) in X by 2,700 mm (106.3 in) in Y over a 2,200×2,700 mm (86.6×106.3 in) table, with 1,000 mm of Z and 1,200 mm optional.
High power in a compact head makes heat, and Vision Wide lists an IAC head protection system as standard: spindle and motor temperature monitoring, rotation axis motor temperature monitoring and spindle cutting load software protection. A spindle cooling system is standard too. Rapids are 32/32/20 m/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,200 mm (86.6 in) |
| Y Axis Travel | 2,700 mm (106.3 in) |
| Z Axis Travel | 1,000/1,200 mm (39.4/47.2 in)(Opt.) |
| Table Size | 2,200×2,700 mm (86.6×106.3 in) |
| Spindle Power Cont 30 Min | 50/65 kW (67.1/87.2 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1~20,000 mm/min |
| Rapid Traverse Xyz | 32/32/20 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 50/65 kW (67.1/87.2 hp) spindle power in an indexing head
- High tool clamping force of 20kN on HSK-A100
- IAC head protection system with temperature monitoring is standard
- 2,200×2,700 mm (86.6×106.3 in) fixed table
Limitations
- No spindle torque figure is published
- Z travel of 1,200 mm is an option over the 1,000 mm standard
- Cutting feed tops out at 20,000 mm/min
Best For
Frequently Asked Questions
01
The table lists 50/65 kW (67.1/87.2 hp), continuous and short-time, at 15,000 rpm. The feature list describes above 40kW spindle driving capacity and a tool clamping force of 20kN.
02
The standard IAC head protection system covers spindle and motor temperature monitoring, rotation axis motor temperature monitoring and spindle cutting load software protection. IAC head rotation error mechanism chain correction is also standard.
03
2,200 mm (86.6 in) in X, 2,700 mm (106.3 in) in Y and 1,000 mm in Z, or 1,200 mm with the option. The table is 2,200×2,700 mm (86.6×106.3 in).
04
Rapid traverse is 32/32/20 m/min for X/Y/Z and the cutting feed range is 1~20,000 mm/min. X and Z are driven by dual ballscrews and Y by a single ballscrew.
