Vision Wide SF-3133
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way
z axis travel linear way
max table load
How much does the Vision Wide SF-3133 cost?
Price estimate
We do not have a price for the Vision Wide SF-3133 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide SF-3133 lists 3,100 mm (122.0 in) of X travel and 2,600 mm (102.4 in) of Y over a 3,300×2,100 mm (129.9×82.7 in) table, with floor-standing tool changers. It is the shortest of the three widest SF machines of that kind.
Its closest relative is the SF-3126. The two tables agree on travels, table size, the 14,000 kg (30,864 lb) load, spindle and rapids. They part on the tool changer: a vertical type tool change on the SF-3126, floor-standing types here. As with the other models numbered this way, the printed Y travel is lower than the model number suggests, and the maker should confirm it.
For five-sided work this is the most complete build in the 3 m length. The Y stroke is longer than the table is wide. The Z axis can be ordered with 1,020 mm of travel for an AC head attachment. And the optional vertical-horizontal changer, with 32, 40 or 60 pcs, is the listed way to change tools in both spindle orientations.
The spindle motor is 18.5/22 kW (24.8/29.5 hp). A 6,000 rpm 2-step gear spindle is standard, and the linear way head with 10,000 rpm or 12,000 rpm spindles remains available as an option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | 2,600 mm (102.4 in) |
| Z Axis Travel Box Way | 800 / 1,020 mm (31.5 / 40.2 in) (Opt.) |
| Z Axis Travel Linear Way | 800 / 1,000 mm (31.5 / 39.4 in) (Opt.) |
| Table Size | 3,300×2,100 mm (129.9×82.7 in) |
| Max Table Load | 14,000 kg (30,864 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 6,000/4,000 rpm(Opt.) |
| Spindle Speed Linear Way Direct Driven | 10,000 rpm(Opt.)/ 12,000 rpm(Opt.) |
| Spindle Speed Linear Way Built in | 10,000 rpm(Opt.) |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | XY：20 m/min / Z：15 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 32/40 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Tool Change | 32 pcs(Opt.)/40 pcs(Opt.)/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,600 mm (102.4 in) of Y travel with floor-standing tool changers
- 14,000 kg (30,864 lb) table load
- Optional vertical-horizontal tool change with 32, 40 or 60 pcs
- Both box way and linear way heads are listed
Limitations
- Printed Y travel does not match the model number; confirm before ordering
- The 3,300×2,100 mm (129.9×82.7 in) table is longer than the X travel
- Standard changer capacity is 32 tools
Best For
Frequently Asked Questions
01
The SF-3126 has a vertical type tool change with 32/40 pcs(Opt.). The SF-3133 has a floor-standing type vertical tool change and an optional vertical-horizontal type. Travels, table and the 14,000 kg (30,864 lb) load match in the tables.
02
X is 3,100 mm (122.0 in) and Y is printed as 2,600 mm (102.4 in). Z is 800 mm as standard, with 1,020 mm on the box way head and 1,000 mm on the linear way head as options.
03
No. Vision Wide describes the SF series as a 3-axis linear way design. The option list refers to an AC head attachment, and the page gives no detail on how such a head is controlled.
04
Rapid traverse is 20 m/min in X and Y and 15 m/min in Z. The cutting feed range is 1-10,000 mm/min, as on the other heavy-frame SF models.
More from Vision Wide
Other Vertical Machining Centers (VMC)

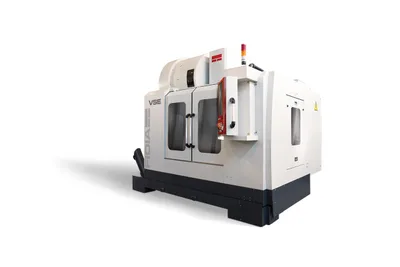

Fidia VSE 1066
Pinnacle LV179
Okuma MILLAC 761V II

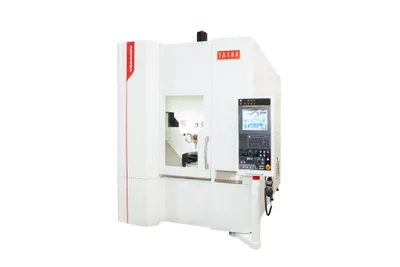

Yasda YBM 640V
