Yasda YBM 640V

Q: How much does the Yasda YBM 640V cost?

The price estimate for the Yasda YBM 640V is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/yasda-ybm-640v#price; the request is passed to Yasda Precision or an authorised dealer.

Specs verified 2026-10-05 · yasda.co.jp Updated 2026-10-05

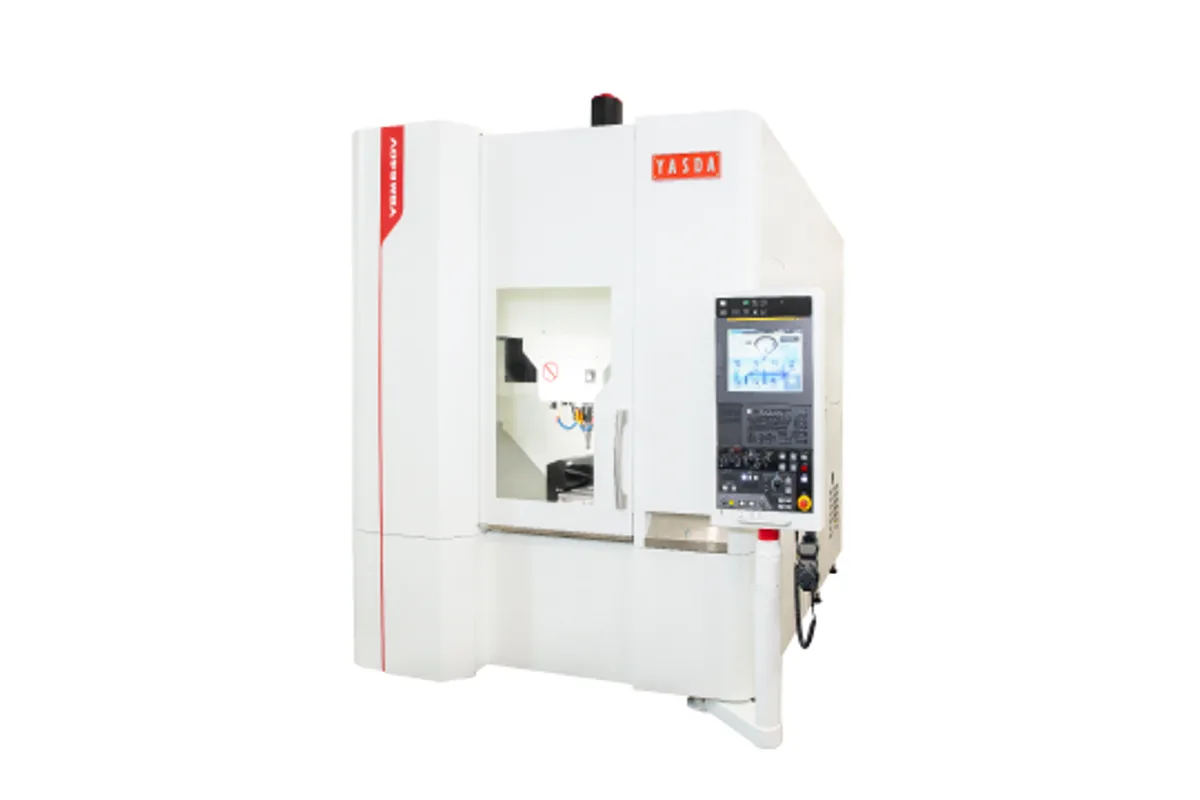

Image: yasda.co.jp, Yasda Precision

Key Specifications

X Travel

600 mm (23.6 in)

Y Travel

400 mm (15.7 in)

Z Travel

350 mm (13.8 in)

Max Spindle

100-24,000 min-1 (150-30,000 min-1 spindle opt.)

Spindle Taper

MAS BT40 (HSK-A63 opt.; MAS BT30 with the 150-30,000 min-1 spindle opt.)

Tool Capacity

30 tools (40/60/90/100 tools opt.)

How much does the Yasda YBM 640V cost?

Price estimate

Uncertain

We do not have a price for the Yasda YBM 640V that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Yasda YBM 640V is the smallest of the maker's CNC jig borers, a vertical machine with travels of 600 mm (23.6 in) in X, 400 mm (15.7 in) in Y and 350 mm (13.8 in) in Z. The table working size is 700 x 450 mm (27.6 x 17.7 in), a little larger than the travel in both directions, so a plate can overhang the cutting area while its features stay in reach.

Yasda presents the current version with a new design that it says improves operation and maintenance, and it ties the machine's quality over long hours of operation to its base structure, thermal stabilization and spindle technology. For the buyer that translates into a simple question: is the job long-cycle, tight-tolerance work on small plates and inserts? If so, this is the size to look at.

The base spindle covers 100-24,000 min-1 with a MAS BT40 taper, and HSK-A63 can be ordered instead. A second spindle is optional: 150-30,000 min-1 on MAS BT30. The smaller taper is for small tools at speed, and it takes the machine out of general 40-taper work, so decide which kind of shop the machine is for before ordering.

Automation is where the options run deep. The magazine holds 30 tools and can be extended to 40, 60, 90 or 100 tools. An APC is listed as 2・5PLS, and there is a robot interface for EROWA/System 3R. A 1 axis rotary table with a Φ200 mm table and 40 kg loading capacity is also offered. The control is a FANUC 31i-B5 Plus, and the machine stands 3,100 mm (122.0 in) high.

Full Specifications

Parameter	Value
X-Axis Travel	600 mm (23.6 in)
Y-Axis Travel	400 mm (15.7 in)
Z-Axis Travel	350 mm (13.8 in)
Table Working Size	700 x 450 mm (27.6 x 17.7 in)
Max Spindle Speed	100-24,000 min-1 (150-30,000 min-1 spindle opt.)
Spindle Taper	MAS BT40 (HSK-A63 opt.; MAS BT30 with the 150-30,000 min-1 spindle opt.)
Tool Capacity	30 tools (40/60/90/100 tools opt.)
APC	2・5PLS (opt.)
Rotary Table Diameter	Φ200 mm (7.9 in), 1 axis rotary table opt.
Rotary Table Loading Capacity	40 kg (88 lb), 1 axis rotary table opt.
Robot Interface	EROWA/System 3R (opt.)
CNC Control	FANUC 31i-B5 Plus
Machine Height	3,100 mm (122.0 in)

Specifications sourced from yasda.co.jp — verified 2026-10-05

Strengths & Limitations

Strengths

100-24,000 min-1 MAS BT40 spindle as standard, with HSK-A63 or a 150-30,000 min-1 MAS BT30 spindle as options
Table working size of 700 x 450 mm (27.6 x 17.7 in), larger than the 600 mm and 400 mm X and Y travels
Magazine expandable from 30 tools to 40, 60, 90 or 100 tools
APC (2・5PLS) and an EROWA/System 3R robot interface are both listed as options
Optional 1 axis rotary table, Φ200 mm with 40 kg loading capacity

Limitations

350 mm (13.8 in) of Z travel has to cover the fixture, the part and the tool
The standard magazine holds 30 tools; larger ones are options
The 150-30,000 min-1 spindle comes with a MAS BT30 taper, which limits tool size
The optional rotary table carries 40 kg, so it is for small indexed parts only

Best For

Jig boring and precision milling of small plates within 600 x 400 mm of travel Small die and mould inserts run over long cycles Palletised small-part work with the optional APC or robot interface Small-tool finishing with the optional 150-30,000 min-1 spindle

Frequently Asked Questions

01 What are the travels of the Yasda YBM 640V?

600 mm (23.6 in) in X, 400 mm (15.7 in) in Y and 350 mm (13.8 in) in Z. The table working size is 700 x 450 mm (27.6 x 17.7 in), and machine height is 3,100 mm (122.0 in).

02 Which spindles are offered on the YBM 640V?

The base spindle runs 100-24,000 min-1 with a MAS BT40 taper hole, and HSK-A63 is an optional taper. An optional spindle runs 150-30,000 min-1 and has a MAS BT30 taper.

03 How does the YBM 640V differ from the YBM 950V?

Size. The YBM 640V has 600 mm of X and 400 mm of Y travel. The YBM 950V has 900 mm and 500 mm, with the same 350 mm of Z and the same 30 tools in the standard magazine. Both use the FANUC 31i-B5 Plus control.

04 Can the YBM 640V be automated?

Yes, with options. Yasda lists an APC as 2・5PLS, a robot interface for EROWA/System 3R, and tool storage of 40, 60, 90 or 100 tools in place of the standard 30 tools.
