Fidia VSE 1066

Q: How much does the Fidia VSE 1066 cost?

The price estimate for the Fidia VSE 1066 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/fidia-vse-1066#price; the request is passed to Fidia or an authorised dealer.

Specs verified 2026-10-05 · fidia.it Updated 2026-10-05

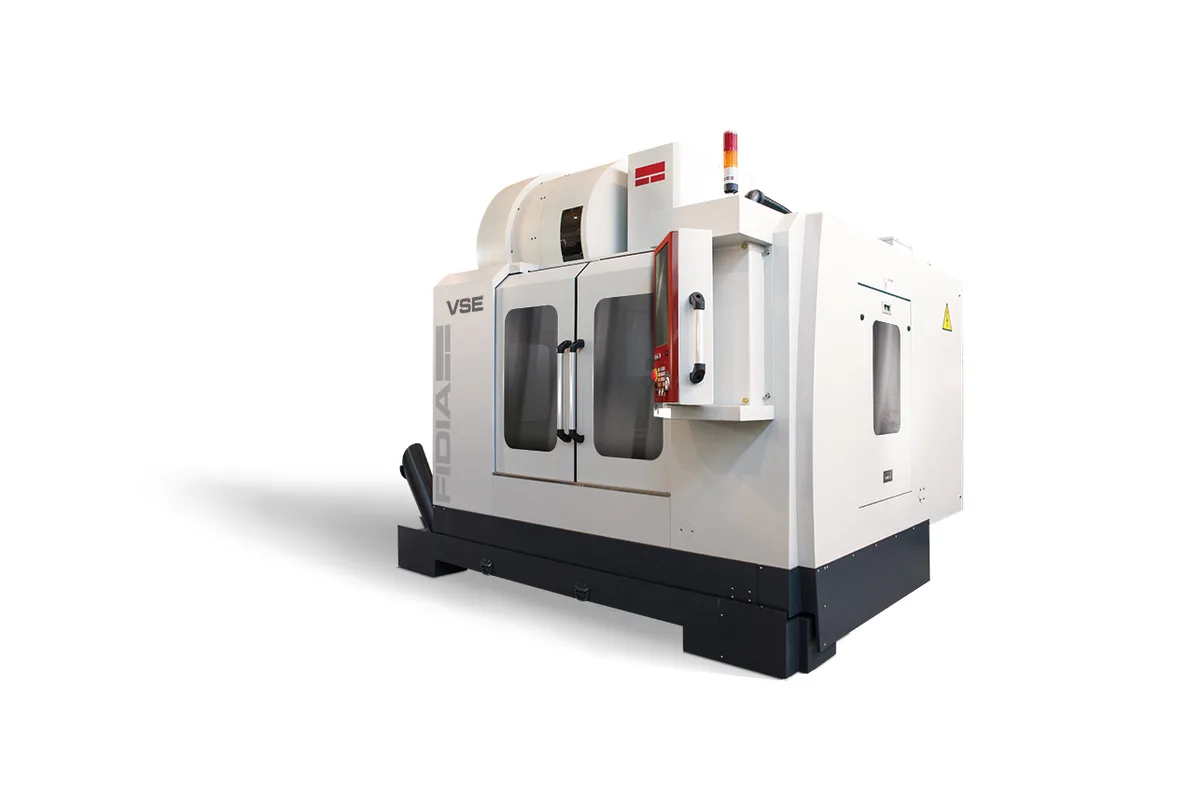

Fidia VSE series high-speed vertical machining centre

Image: fidia.it, Fidia

Key Specifications

Max Spindle

15,000 rpm (18,000/24,000/30,000 optional)

Spindle Taper

ISO 40 (or BT#40)

Tool Capacity

24 positions (swing arm automatic tool changer)

Table Size

1,200 x 610 mm (47.2 x 24 in)

Accuracy

VDI 3441: P 0.012 mm

Repeatability

VDI 3441: PS 0.008 mm

How much does the Fidia VSE 1066 cost?

Price estimate

Uncertain

We do not have a price for the Fidia VSE 1066 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Fidia VSE 1066 is a 3-axis C-frame vertical machining centre for high-speed die and mould work, with travels of 1,020 mm (40.1 in) in X, 610 mm (24 in) in Y and 610 mm (24 in) in Z. The table measures 1,200 x 610 mm (47.2 x 24 in) and takes 850 kg (1,873.9 lbs).

The standard spindle is unusual for a machine of this size: a direct-coupled ISO 40 unit at 15,000 rpm with 20/53 kW and 96/250 Nm (S1/S6 40%). The intent is one spindle that can rough and finish. Three built-in electrospindles are options, at 18,000, 24,000 and 30,000 rpm, the fastest being the one Fidia offers for graphite and resin milling.

The axes feed at 30/30/30 m/min on roller guideways, driven by C3 class ballscrews directly coupled to the servo motors. Accuracy is stated to VDI 3441 as P 0.012 mm positioning and PS 0.008 mm repeatability, with values measured in an air conditioned room. A 24-position swing arm changer is standard, at 3/10 sec tool to tool/chip to chip.

Z can be ordered with 810 mm (31.8 in) of travel instead of 610 mm (24 in), useful with long tools in deep cavities. The machine weighs 7,000 kg (15,432.3 lbs) and occupies about 4,200 x 2,500 x 3,000 mm (165.3 x 98.4 x 118.1 in). The VSE 1468 is the larger model, with 1,350 mm (53.1 in) of X and a 1,200 kg (2,645.5 lbs) table load.

Full Specifications

Parameter	Value
Table Size	1,200 x 610 mm (47.2 x 24 in)
Max Table Load	850 kg (1,873.9 lbs)
X Axis Travel	1,020 mm (40.1 in)
Y Axis Travel	610 mm (24 in)
Z Axis Travel	610 mm (24 in); optional 810 mm (31.8 in)
Axis Feed Rate Xyz	30/30/30 m/min
Distance Spindle to Column	645 mm (25.3 in)
Distance Spindle Nose to Table	80 mm ~ 890 mm (3.1 ~ 35 in)
Floor to Table Top	820 mm (32.2 in)
Spindle Motor	Direct coupling, 20/53 kW, 96/250 Nm (S1/S6 40%)
Spindle Taper	ISO 40 (or BT#40)
Max Spindle Speed	15,000 rpm (18,000/24,000/30,000 optional)
Tool Capacity	24 positions (swing arm automatic tool changer)
Tool Change Time	3/10 sec (tool to tool/chip to chip)
Max Tool Size	125/300 mm - 15 kg (diameter/length - weight)
Ballscrews	40 mm x 12 mm / 40 mm x 12 mm / 50 mm x 12 mm (diameter x pitch, X/Y/Z)
Ballscrew Precision Class	C3 - mm/300 mm : 0.008
Linear Roller Guide Width	35 mm / 35 mm / 45 mm (X/Y/Z)
Positioning Accuracy	VDI 3441: P 0.012 mm
Repeatability	VDI 3441: PS 0.008 mm
Coolant Tank Capacity	200 liters / 20 liters/min
Power Requirement	20 kVA
Machine Dimensions	4,200 x 2,500 x 3,000 mm (165.3 x 98.4 x 118.1 in), L x W x H approx.
Machine Weight	7,000 kg (15,432.3 lbs)

Specifications sourced from fidia.it — verified 2026-10-05

Strengths & Limitations

Strengths

Direct-coupled 15,000 rpm ISO 40 spindle with 20/53 kW and 96/250 Nm (S1/S6 40%)
Optional electrospindles at 18,000, 24,000 and 30,000 rpm
Positioning P 0.012 mm and repeatability PS 0.008 mm to VDI 3441
30/30/30 m/min axis feed rate on roller guideways
24-position swing arm tool changer as standard, at 3/10 sec tool to tool/chip to chip

Limitations

Table load is 850 kg (1,873.9 lbs); the VSE 1468 takes 1,200 kg (2,645.5 lbs)
Y travel of 610 mm (24 in) limits mould width
Linear scales and coolant through the spindle are listed among the main options, not in the basic machine
3-axis as standard; a rotary table with tailstock for 4-axis milling is optional

Best For

Small and mid-size mould and die work up to 850 kg (1,873.9 lbs) Roughing and finishing on one direct-coupled spindle Graphite and resin milling with the optional kits and 30,000 rpm spindle

Frequently Asked Questions

01 What are the travels and table size of the Fidia VSE 1066?

Travels are 1,020 mm (40.1 in) in X, 610 mm (24 in) in Y and 610 mm (24 in) in Z, with 810 mm (31.8 in) of Z as an option. The table is 1,200 x 610 mm (47.2 x 24 in) and the maximum loading is 850 kg (1,873.9 lbs).

02 What spindle does the VSE 1066 come with?

The standard spindle is direct coupled, with an ISO 40 (or BT#40) toolholder, 15,000 rpm, 20/53 kW and 96/250 Nm (S1/S6 40%). The options are built-in electrospindles: 18,000 rpm with 26/32 kW and 124/154 Nm, 24,000 rpm with 21/27 kW and 85/116 Nm, and a 30,000 rpm unit.

03 How accurate is the VSE 1066?

Fidia states positioning of P 0.012 mm and repeatability of PS 0.008 mm to VDI 3441, with values measured in an air conditioned room. The ballscrews are precision class C3. Linear scales appear in the list of main options.

04 How much space and power does the VSE 1066 need?

Machine floor space is about 4,200 x 2,500 x 3,000 mm (165.3 x 98.4 x 118.1 in), L x W x H, and net weight is 7,000 kg (15,432.3 lbs). Power required is 20 kVA. The coolant tank holds 200 liters.
