DMG Mori Vertical Machining Centers (VMC)

DMG Mori CMX 800 V

Est. $95,000 - $130,000 Specs verified 2026-10-02 · dmgmori.com Updated 2026-10-02

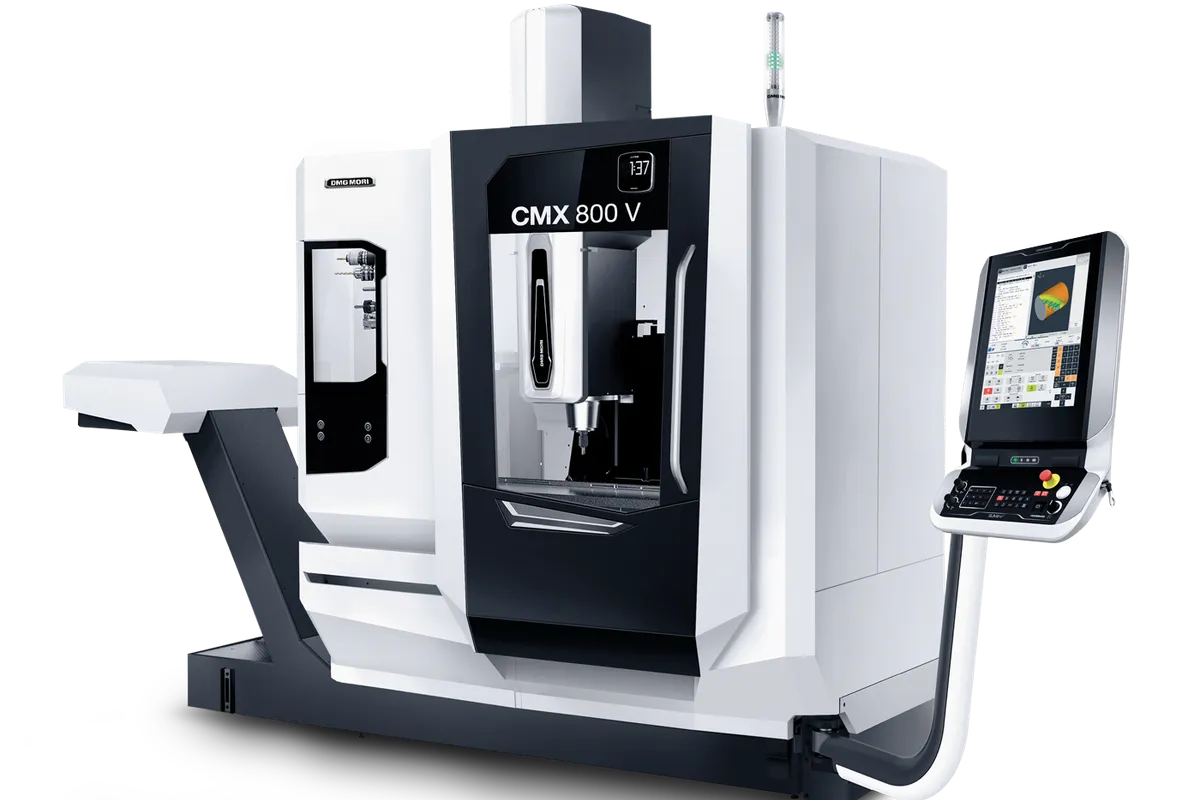

Image: dmgmori.com, DMG Mori

Key Specifications

X Travel

800 mm (31.5 in)

Y Travel

560 mm (22 in)

Z Travel

510 mm (20.1 in)

Table Size

43.3 x 22.0 in

Accuracy

6 µm in all axes without linear scales (ISO 230-2)

max workpiece length

1,100 mm (43.3 in)

How much does the DMG Mori CMX 800 V cost?

Estimated price range

Est.$95,000 - $130,000

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from DMG Mori. Configuration moves it a long way.

Overview

With 800 mm (31.5 in) of X travel, the DMG MORI CMX 800 V is the middle size of three CMX V machines built on one cross-section: 560 mm (22 in) of Y and 510 mm (20.1 in) of Z. The CMX 600 stops at 600 mm (23.6 in) of X and the CMX 1100 runs to 1,100 mm (43.3 in). Picking among them comes down to how long and how heavy the parts are.

On this size the workpiece limits are 1,100 × 560 × 630 mm (43.3 × 22 × 24.8 in) and 800 kg (1,763.7 lb), and DMG MORI quotes the table at 43.3 x 22.0 in. Two things follow from those numbers. Front to back, the table matches the Y travel, so no part of its depth is out of reach. Left to right it is longer than the X travel, so some of its length is clamping room and not cutting range.

X is the table. In this C-frame layout the workpiece and its fixture sit on the moving axis, which makes the 800 kg limit a statement about what the X drive has to accelerate as much as about what the table can bear. A heavy fixture plate eats into it directly.

DMG MORI states 6 µm positioning accuracy in all axes to ISO 230-2. No linear scales are involved in that figure; it comes from ball-screws in tolerance class IT 1 together with thermal compensation. For work that holds position tolerances near that value across a long shift, ask what the compensation measures and how the machine behaves from a cold start.

Among other DMG MORI verticals of this length, the NVX 5080 has the same 800 mm (31.5 in) of X and 510 mm (20.1 in) of Z with 530 mm (20.9 in) of Y, while the DMP 70 is smaller on every axis at 700 mm (27.6 in), 420 mm (16.5 in) and 380 mm (15 in). The CMX 800 V occupies 75.3 ft² and is offered with SIEMENS, HEIDENHAIN or FANUC control.

Full Specifications

Parameter	Value
Max Workpiece Length	1,100 mm (43.3 in)
Max Workpiece Width	560 mm (22 in)
Max Workpiece Height	630 mm (24.8 in)
Max Workpiece Weight	800 kg (1,763.7 lb)
X-Axis Travel	800 mm (31.5 in)
Y-Axis Travel	560 mm (22 in)
Z-Axis Travel	510 mm (20.1 in)
CNC Control	SIEMENS, HEIDENHAIN or FANUC
Floor Space Required	75.3 ft²
Table Size	43.3 x 22.0 in
Positioning Accuracy	6 µm in all axes without linear scales (ISO 230-2)

Specifications sourced from dmgmori.com — verified 2026-10-02

Strengths & Limitations

Strengths

800 kg (1,763.7 lb) workpiece weight on a 43.3 x 22.0 in table
Table depth equals the 560 mm (22 in) Y travel, so the whole depth of the table is within reach
6 µm positioning accuracy in all axes (ISO 230-2) with thermal compensation and IT 1 ball-screws
75.3 ft² footprint for an 800 mm (31.5 in) X machine
SIEMENS and HEIDENHAIN versions come with a 19 in SLIMline multi-touch control panel

Limitations

Maximum workpiece length of 1,100 mm (43.3 in) exceeds the 800 mm (31.5 in) of X travel
Accuracy is stated without linear scales
With FANUC the panel is the 15 in SLIMline with MAPPS, not the 19 in multi-touch panel
No spindle, rapid traverse or tool magazine figures appear in DMG MORI's Highlights for this model

Best For

General 3-axis milling of parts up to 800 mm (31.5 in) long in one clamping Two or three vises in a row along a 43.3 in table Fixtured workpieces up to 800 kg (1,763.7 lb) including the fixture Parts too long for the CMX 600 that do not need the CMX 1100

Frequently Asked Questions

01 What is the difference between the CMX 800 V and the CMX 600 V?

X travel. The CMX 800 V has 800 mm (31.5 in) and the CMX 600 has 600 mm (23.6 in). Y and Z are 560 mm (22 in) and 510 mm (20.1 in) on both. The longer machine takes workpieces up to 1,100 mm (43.3 in) long and 800 kg (1,763.7 lb).

02 How much weight can the CMX 800 V table carry?

800 kg (1,763.7 lb). The table is the X axis of the machine, so that figure has to cover the part, the vises or fixture and any rotary table together. DMG MORI gives the table as 43.3 x 22.0 in.

03 Does the CMX 800 V have linear scales?

The accuracy DMG MORI states, 6 µm of positioning in all axes according to ISO 230-2, is given without linear scales. The Highlights list thermal compensation and ball-screws made in the first class of tolerances (IT 1), and do not mention scales as an option.

04 Which control panels does the CMX 800 V come with?

Three combinations are listed. A 19 in DMG MORI SLIMline multi-touch control panel with SIEMENS, the same 19 in panel with HEIDENHAIN, and a 15 in SLIMline control panel with MAPPS on FANUC, which adds 3D simulation with contour verification.

05 How does the CMX 800 V compare with the NVX 5080?

Both have 800 mm (31.5 in) of X travel and 510 mm (20.1 in) of Z. The CMX 800 V has 560 mm (22 in) of Y where the NVX 5080 has 530 mm (20.9 in). Beyond travel, compare the spindle and magazine data on the quotations, since the CMX 800 V Highlights do not state them.
