Vision Wide Vertical Machining Centers (VMC)

Vision Wide HF-8040 / HF-8047

Q: How much does the Vision Wide HF-8040 / HF-8047 cost?

The price estimate for the Vision Wide HF-8040 / HF-8047 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-hf-8040-hf-8047#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

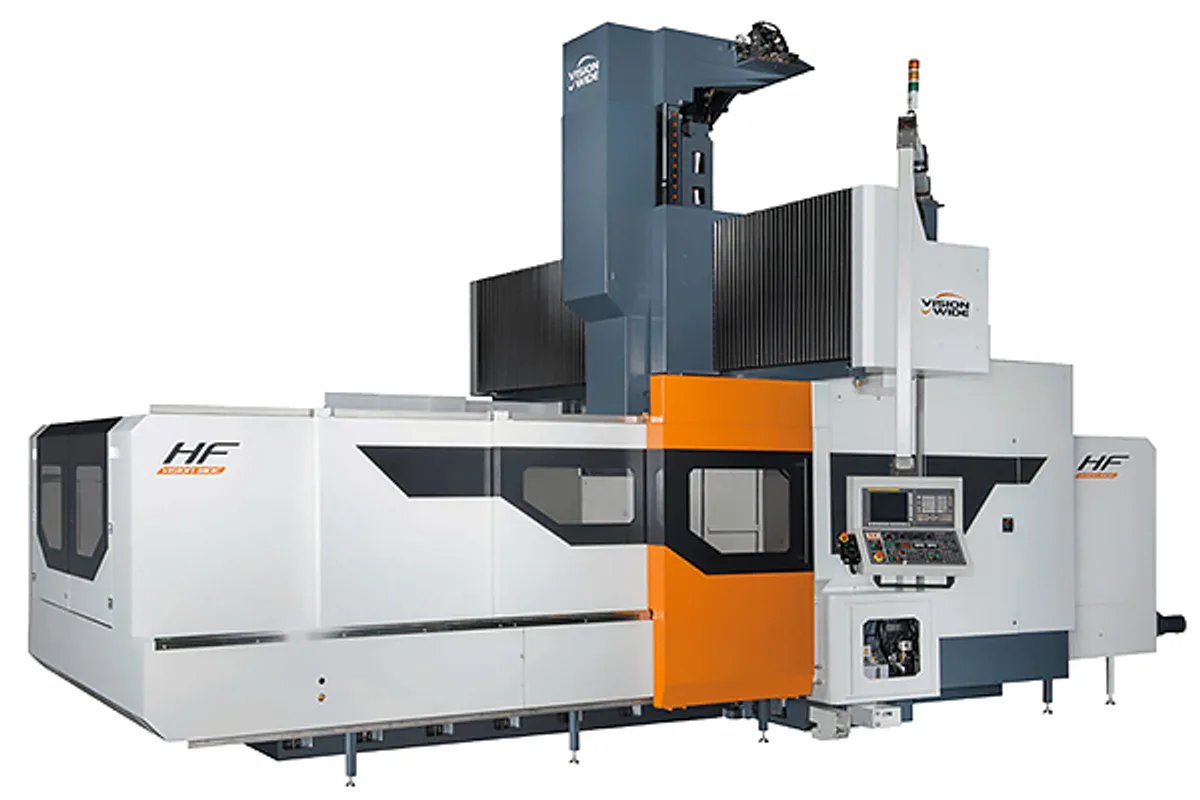

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

8,000×3,500 mm (315.0×137.8 in)

x axis travel

8,100 mm (318.9 in)

y axis travel

4,000/ 4,700 mm (157.5/ 185.0 in)

z axis travel box way single ballscrew

920 / 1,020 mm (36.2 / 40.2 in)(Opt.)

z axis travel linear way enclosed box ram dual ballscrews

1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)

max table load

32,000 kg (70,547 lb)

How much does the Vision Wide HF-8040 / HF-8047 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide HF-8040 / HF-8047 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

With an 8,000×3,500 mm (315.0×137.8 in) table and a 32,000 kg (70,547 lb) rating, the Vision Wide HF-8040 / HF-8047 is the second largest machine in the HF table. X travel is 8,100 mm (318.9 in), and Y is 4,000 mm (157.5 in) on the HF-8040 or 4,700 mm (185.0 in) on the HF-8047.

Position feedback is worth settling early on a machine with these strokes. The accessory list offers XYZ-axis linear scale feedback as an option; without it, position is taken from the drive side of the ballscrews. Over eight metres a screw changes length with temperature by more than the tolerance of most precision work, and Vision Wide's description of the HF stresses high positioning accuracy. For parts with tight location tolerances between features far apart, scales are the way that claim is realised.

The structure is described in terms of rigidity: a box base, wide-span worktable guideways, a wider load dimension and a square beam.

Feeds are 1-7,000 mm/min in the cut and 8 m/min in X/Y rapid. The motor is 22/26 kW (29.5/34.9 hp) with a 30/37 kW (40.2/49.6 hp) option. A FANUC 0iMF PLUS controller is standard.

Full Specifications

Parameter	Value
X Axis Travel	8,100 mm (318.9 in)
Y Axis Travel	4,000/ 4,700 mm (157.5/ 185.0 in)
Z Axis Travel Box Way Single Ballscrew	920 / 1,020 mm (36.2 / 40.2 in)(Opt.)
Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews	1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)
Table Size	8,000×3,500 mm (315.0×137.8 in)
Max Table Load	32,000 kg (70,547 lb)
Spindle Power Cont 30 Min	22/26 kW (29.5/34.9 hp)(30/37 kW (40.2/49.6 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram Direct Driven	10,000 rpm(Opt.)
Cutting Feed Rate	1-7,000 mm/min
Rapid Traverse Xy	8 m/min
Rapid Traverse Z Box Way or Linear Way	15 m/min
Rapid Traverse Z Enclosed Box Ram	12 m/min
Tool Capacity Vertical Tool Change	32 / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Horizontal Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

8,000×3,500 mm (315.0×137.8 in) table
32,000 kg (70,547 lb) table load
Optional XYZ-axis linear scale feedback
Box base with wide-span worktable guideways, per the maker

Limitations

Linear scales are an option on axes of 8,100 mm (318.9 in) and 4,000 mm (157.5 in) or more
X/Y rapid of 8 m/min across the whole table
The maker's page gives no positioning accuracy figure for the HF

Best For

Large parts with tight feature-to-feature location tolerances Loads up to 32,000 kg (70,547 lb) Wide machine bases and die sets

Frequently Asked Questions

01 Does the Vision Wide HF-8040 have linear scales?

XYZ-axis linear scale feedback is on the optional accessory list for the HF series. It is not part of the standard machine, so it has to be specified on the order.

02 What accuracy does Vision Wide state for the HF-8040 / HF-8047?

The HF text speaks of high positioning accuracy and the best level of dynamic accuracy but prints no figure. Ask the maker for the positioning and repeatability values, with and without linear scales.

03 What are the table size and load of the HF-8040?

8,000×3,500 mm (315.0×137.8 in) and 32,000 kg (70,547 lb). X travel is 8,100 mm (318.9 in). Y travel is 4,000 mm (157.5 in), or 4,700 mm (185.0 in) on the HF-8047.

04 What controller comes with the HF-8040 / HF-8047?

The FANUC 0iMF PLUS controller is listed as standard. The maker also names an AC 3-axis mechanical coordinates system among the HF features.
