Haas Automation Vertical Machining Centers (VMC)

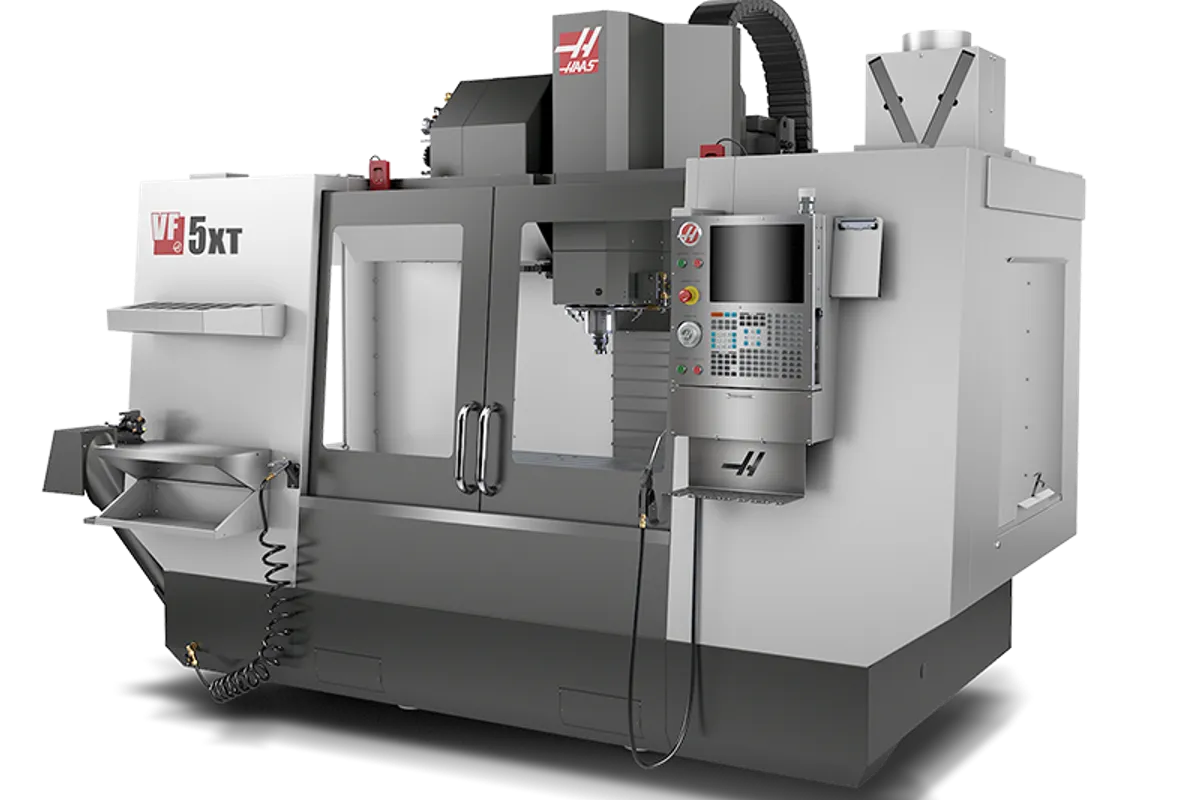

Haas VF-5/40XT

List US$141,995 Specs verified 2026-10-02 · haascnc.com Updated 2026-10-02

Key Specifications

X Travel

60 in (1,524 mm)

Y Travel

26 in (660 mm)

Z Travel

25 in (635 mm)

Max Spindle

8,100 rpm

Spindle Taper

CT40 / BT40 / HSK-A63

Tool Capacity

How much does the Haas VF-5/40XT cost?

Manufacturer list price

US$141,995

As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.

Overview

The Haas VF-5/40XT stretches the VF-5/40 along X. Travel is 60 × 26 × 25 in (1,524 × 660 × 635 mm), the table is 62 × 23 in (1,575 × 584 mm), and the spindle is the 40-taper, 30 hp (22.4 kW), 8,100 rpm inline direct-drive unit.

Against the VF-5/40 the gain is X travel, 60 in (1,524 mm) in place of 50 in (1,270 mm), a 20% increase, with Y and Z unchanged. The table is longer but slightly narrower: 62 × 23 in here, 54 × 24 in (1,372 × 610 mm) on the VF-5/40. Table load is 4,000 lb (1,814 kg) on both. The longer machine is also heavier to ship, 15,600 lb (7,100 kg) against 12,700 lb (5,761 kg) for the VF-5/40.

The next size up is a different class of machine. The VF-6/40 has 64 in (1,626 mm) of X, barely more than the XT, but adds Y and Z to 32 in (813 mm) and 30 in (762 mm), ships at 22,300 lb (10,116 kg) and rapids at 600 ipm (15.2 m/min). For long parts that are not also wide or tall, the VF-5/40XT covers nearly the same length on a lighter, faster-moving frame.

X thrust is 3,400 lbf (15,124 N), with 4,100 lbf (18,238 N) on Y and Z. Torque is 90 ft-lbf (122 N·m) at 2,000 rpm, or 250 ft-lbf (339 N·m) at 450 rpm with the optional gearbox. Rapids are 710 ipm (18 m/min) and feed tops out at 500 ipm (12.7 m/min), so long repositioning moves add up over a batch. The 20-tool carousel handles tools up to 3.5 in (89 mm) in diameter and changes in 4.5 s chip-to-chip; a 50+1 side-mount tool changer appears in Haas's shipping table as an alternative build at 16,110 lb (7,308 kg). The starting price is US$141,995.

Full Specifications

Parameter	Value
X-Axis Travel	60 in (1,524 mm)
Y-Axis Travel	26 in (660 mm)
Z-Axis Travel	25 in (635 mm)
Spindle Nose to Table (max)	29.2 in (742 mm)
Spindle Nose to Table (min)	4.2 in (107 mm)
Spindle Motor Power	30 hp (22.4 kW)
Max Spindle Speed	8,100 rpm
Spindle Torque	90 ft-lbf @ 2,000 rpm (122 N·m @ 2,000 rpm)
Spindle Torque (optional gearbox)	250 ft-lbf @ 450 rpm (339 N·m @ 450 rpm)
Spindle Drive	Inline Direct-Drive
Spindle Taper	CT40 / BT40 / HSK-A63
Spindle Bearing Lubrication	Air / Oil Injection
Spindle Cooling	Liquid Cooled
Table Size	62 × 23 in (1,575 × 584 mm)
T-Slot Width	0.626 in to 0.63 in (15.9 mm to 16 mm)
T-Slot Center Distance	3.15 in (80 mm)
T-Slots	7
Max Table Load	4,000 lb (1,814 kg)
Max Cutting Feedrate	500 ipm (12.7 m/min)
Rapid Traverse Rate	710 ipm (18 m/min)
Max Thrust X	3,400 lbf (15,124 N)
Max Thrust Y	4,100 lbf (18,238 N)
Max Thrust Z	4,100 lbf (18,238 N)
Tool Changer Type	Carousel
Tool Capacity	20
Max Tool Diameter (full magazine)	3.5 in (89 mm)
Max Tool Weight	12 lb (5.4 kg)
Tool Change (tool-to-tool)	4.2 s
Tool Change (chip-to-chip)	4.5 s
Coolant Capacity	95 gal (360 L)
Air Required	4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose	3/8 in
Air Coupler	3/8 in
Air Pressure Min	80 psi (5.5 bar)
Electrical Service (low voltage)	220 VAC 3-phase, 70 A
Electrical Service (high voltage)	440 VAC 3-phase, 35 A
Shipping Domestic Pallet	168 × 102 × 113 in (427 × 259 × 287 cm)
Shipping Export Crate	168 × 102 × 125 in (427 × 259 × 318 cm)
Machine Weight	15,600 lb (7,100 kg)
Shipping Domestic Pallet with 50 plus 1 SMTC	168 × 102 × 127 in (427 × 260 × 323 cm)
Shipping Export Pallet with 50 plus 1 SMTC	164 × 92 × 101 in (417 × 233 × 257 cm)
Machine Weight with 50 plus 1 SMTC	16,110 lb (7,308 kg)

Specifications sourced from haascnc.com — verified 2026-10-02

Strengths & Limitations

Strengths

60 in (1,524 mm) of X travel, 20% more than the VF-5/40, with the same 26 in (660 mm) of Y
62 × 23 in (1,575 × 584 mm) table rated for 4,000 lb (1,814 kg)
X-axis thrust of 3,400 lbf (15,124 N), and 4,100 lbf (18,238 N) on Y and Z
Optional gearbox listed at 250 ft-lbf (339 N·m) at 450 rpm
Ships at 15,600 lb (7,100 kg), where the 64 in (1,626 mm) VF-6/40 is 22,300 lb (10,116 kg)
95 gal (360 L) of coolant capacity

Limitations

Table is 23 in (584 mm) wide, narrower than the 24 in (610 mm) table of the VF-5/40
Rapids of 710 ipm (18 m/min) are slow for a 60 in (1,524 mm) axis
20-tool carousel with a 4.5 s chip-to-chip time; the VF-6/40 has 30+1 tools
Direct-drive torque is 90 ft-lbf (122 N·m); the VF-5/50XT delivers 340 ft-lbf (460 N·m) at 700 rpm on the same travels

Best For

Long parts up to 60 in (1,524 mm): rails, beams, extrusions, mould plates Several fixtures or vises in line on a 62 in (1,575 mm) table Long steel plates within the 4,000 lb (1,814 kg) table rating 40-taper work at up to 8,100 rpm on parts longer than the 50 in (1,270 mm) X travel of the VF-5/40

Frequently Asked Questions

01 What does XT add to the VF-5/40?

X travel. The VF-5/40XT has 60 in (1,524 mm) of X where the VF-5/40 has 50 in (1,270 mm). Y and Z stay at 26 in (660 mm) and 25 in (635 mm), and the spindle, 20-tool carousel and 4,000 lb (1,814 kg) table load are the same. The table changes from 54 × 24 in (1,372 × 610 mm) on the VF-5/40 to 62 × 23 in (1,575 × 584 mm).

02 Should I buy the VF-5/40XT or the VF-6/40?

Look at Y and Z. The VF-5/40XT has 60 × 26 × 25 in (1,524 × 660 × 635 mm) of travel. The VF-6/40 has 64 × 32 × 30 in (1,626 × 813 × 762 mm), a 64 × 28 in (1,626 × 711 mm) table and 30+1 tools, with rapids of 600 ipm (15.2 m/min) and a shipping weight of 22,300 lb (10,116 kg). If the parts are long but fit within 26 in of Y, the XT does the job at 15,600 lb (7,100 kg) and 710 ipm (18 m/min).

03 How much torque does the VF-5/40XT have for heavy cuts?

As built, 90 ft-lbf (122 N·m) at 2,000 rpm from a 30 hp (22.4 kW) direct-drive spindle. The optional gearbox is listed at 250 ft-lbf (339 N·m) at 450 rpm. If that is still not enough, the VF-5/50XT has the same travels with a 50-taper spindle rated 340 ft-lbf (460 N·m) at 700 rpm.

04 What are the tool changer limits on the VF-5/40XT?

The base machine has a 20-tool carousel: tools up to 3.5 in (89 mm) in diameter and 12 lb (5.4 kg), 4.2 s tool-to-tool, 4.5 s chip-to-chip. Haas's shipping table also lists the machine with a 50+1 side-mount tool changer at 16,110 lb (7,308 kg), which is a separate configuration.

05 How is the VF-5/40XT table laid out?

It is 62 × 23 in (1,575 × 584 mm), carrying seven T-slots that are 0.626 to 0.63 in (15.9 to 16 mm) wide and 3.15 in (80 mm) apart. The load limit is 4,000 lb (1,814 kg). At the bottom of Z the spindle nose is 4.2 in (107 mm) above the surface; at the top it is 29.2 in (742 mm).
