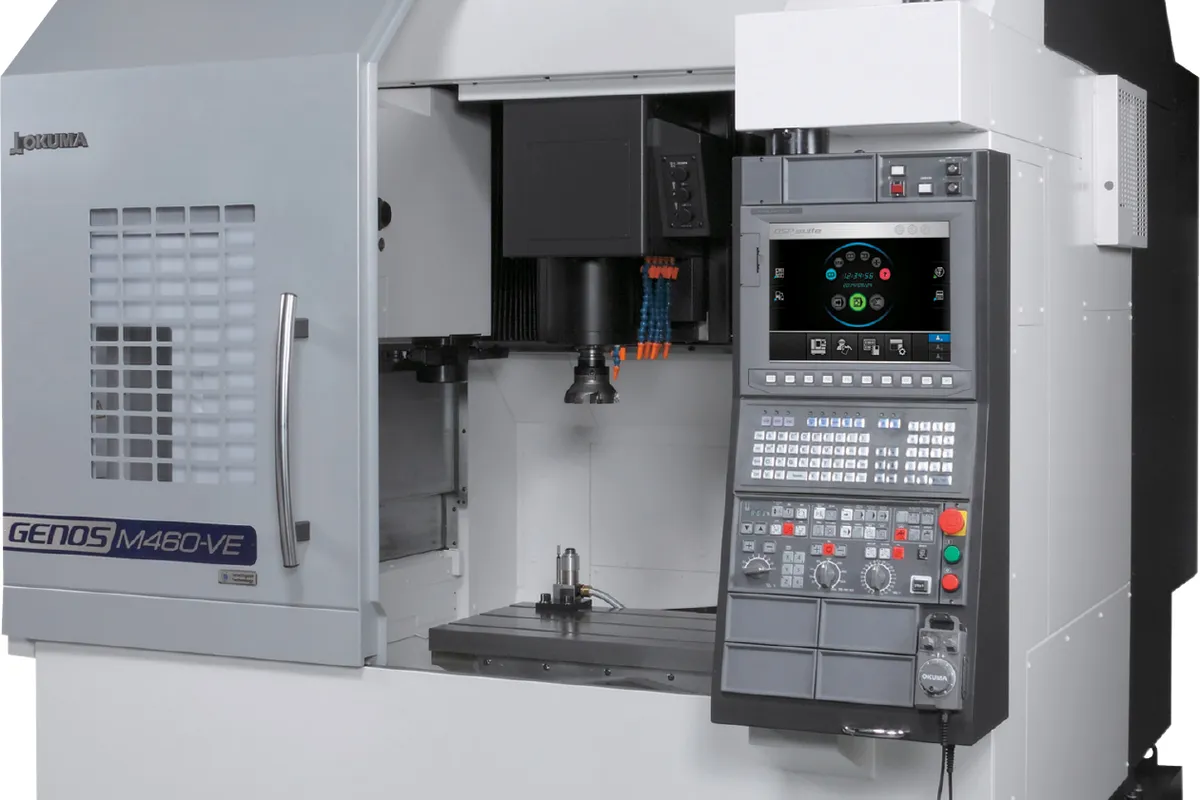

Okuma GENOS M460-VE

Est. $85,000 – $110,000 Specs verified 2026-10-03 · okuma.com Updated 2026-10-03

Image: d30jruhmdicmo0.cloudfront.net, Okuma

Key Specifications

Spindle Taper

BT40

Tool Capacity

Table Size

1,000 × 460 mm (39.37 × 18.11 in)

Rapid Traverse

X-Y 40, Z: 32 m/min (X-Y: 1,575, Z: 1,262 ipm)

Spindle Power

22/18.5 kW (30/25 hp)

x y z travel

762 x 460 x 460 mm (30.0 x 18.1 x 18.1 in)

How much does the Okuma GENOS M460-VE cost?

Estimated price range

Est.$85,000 – $110,000

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from Okuma. Configuration moves it a long way.

Overview

The Okuma GENOS M460-VE is a 40-taper vertical machining center with 762 x 460 x 460 mm (30.0 x 18.1 x 18.1 in) of travel, a 15,000 rpm BT40 spindle rated 22/18.5 kW (30/25 hp) and a 32-tool arm-type ATC.

The table measures 1,000 × 460 mm (39.37 × 18.11 in). Its length exceeds the 762 mm X travel, so the ends of the table are room for clamps and fixture overhang, not cutting area. In Y the table and the travel are both 460 mm, which puts the full depth of the table under the spindle. Z is 460 mm (18.1 in) as well, and that has to cover fixture height, part height and tool length together.

Rapid traverse is 40 m/min (1,575 ipm) in X and Y and 32 m/min (1,262 ipm) in Z. Okuma lists the same rates, the same 22/18.5 kW (30/25 hp) spindle power and the same 32 tools for the GENOS M560-V and the GENOS M660-V, so choosing among the three is a matter of envelope. The GENOS M560-V has a 1300 × 560 mm (51.18 × 22.05 in) table and the GENOS M660-V a 1,500 × 660 mm (60.24 × 25.98 in) one; the M460-VE is the compact end of that range.

Full Specifications

Parameter	Value
X Y Z Travel	762 x 460 x 460 mm (30.0 x 18.1 x 18.1 in)
Table Size	1,000 × 460 mm (39.37 × 18.11 in)
Spindle Taper	BT40
Rapid Traverse Rate	X-Y 40, Z: 32 m/min (X-Y: 1,575, Z: 1,262 ipm)
Tool Changer Capacity	32-tool arm-type ATC
Max Machining Volume	762 × 460 × 460 mm (30.00 × 18.11 × 18.11 in)
Spindle Speed	15,000 rpm
Spindle Motor Power	22/18.5 kW (30/25 hp)
Tool Capacity	32

Specifications sourced from okuma.com — verified 2026-10-03

Strengths & Limitations

Strengths

15,000 rpm BT40 spindle rated 22/18.5 kW (30/25 hp), the same power Okuma lists for the larger GENOS M560-V
32-tool arm-type ATC as the listed tool changer
Y travel of 460 mm equals the table depth, so the whole table can be reached
Rapid traverse of 40 m/min (1,575 ipm) in X and Y and 32 m/min (1,262 ipm) in Z

Limitations

X travel is 762 mm (30.0 in), shorter than the 1,000 mm table, so the table ends cannot be machined
Z travel of 460 mm (18.1 in) must cover fixture, part and tool length combined
BT40 is the only spindle taper Okuma's page lists for this model
No table load figure appears among Okuma's headline rows

Best For

Aluminium and small-tool work at up to 15,000 rpm Parts within 762 x 460 x 460 mm (30.0 x 18.1 x 18.1 in) Jobs with many tools, drawing on the 32-tool ATC Vise and fixture-plate work across the 460 mm table depth

Frequently Asked Questions

01 What are the travels and table size of the GENOS M460-VE?

Travels are 762 x 460 x 460 mm (30.0 x 18.1 x 18.1 in) and the table is 1,000 × 460 mm (39.37 × 18.11 in). The table is longer than the X travel, so plan fixtures around the 762 mm of X travel, not the table length.

02 What spindle and tool changer does the GENOS M460-VE have?

A BT40 spindle that runs to 15,000 rpm with 22/18.5 kW (30/25 hp), and a 32-tool arm-type ATC. Okuma's page lists no alternative taper, speed or magazine size for this model.

03 How does the GENOS M460-VE differ from the GENOS M560-V?

In size. The GENOS M460-VE has a 1,000 × 460 mm (39.37 × 18.11 in) table and the GENOS M560-V a 1300 × 560 mm (51.18 × 22.05 in) table. Spindle power of 22/18.5 kW (30/25 hp), 32 tools and rapid traverse of 40 m/min in X and Y and 32 m/min in Z are common to both.
