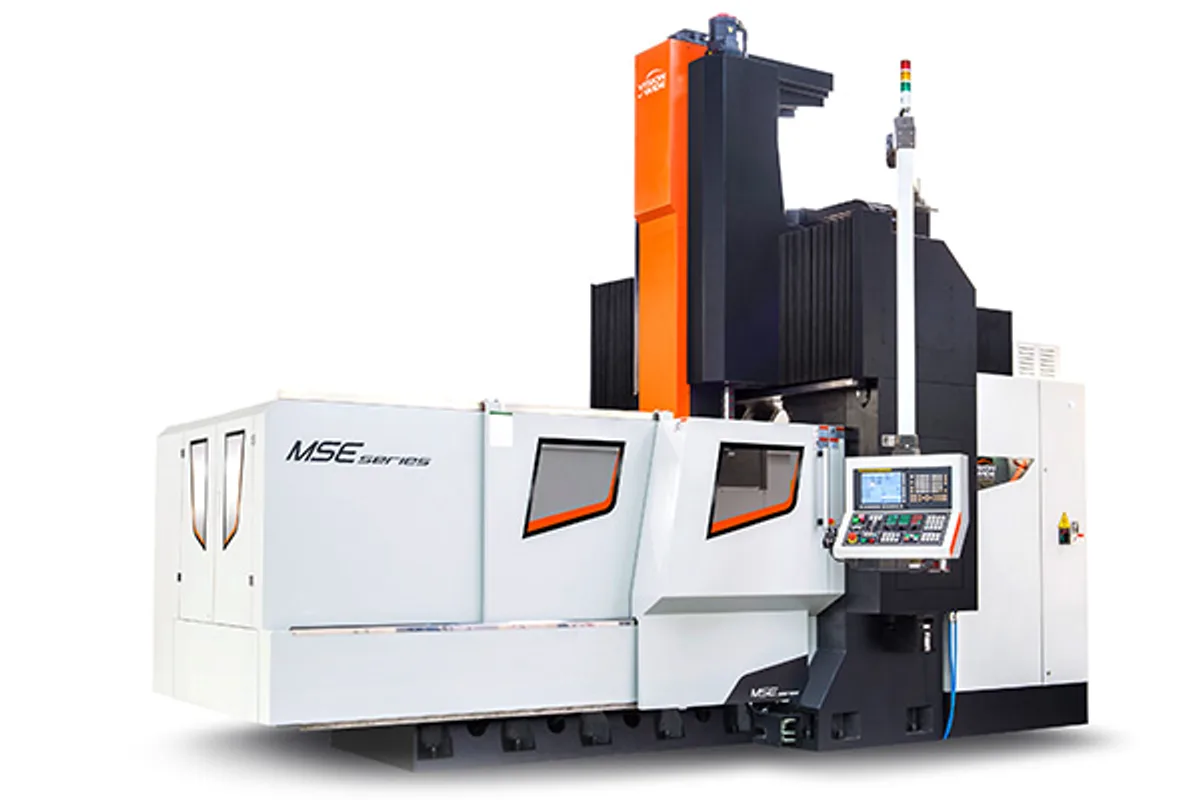

Vision Wide MSE-1612
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide MSE-1612 cost?
Price estimate
We do not have a price for the Vision Wide MSE-1612 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide MSE-1612 is a high-speed portal milling machine: 15,000 rpm, cutting feed to 24,000 mm/min, and no tool magazine anywhere in its specification. Travels are 1,600 mm (63.0 in) in X and 1,200 mm (47.2 in) in Y over a 1,800x1,100 mm (70.9x43.3 in) table.
It is the milling machine counterpart of the SE-1612. The two tables agree on travels, table, the 8,000 kg (17,637 lb) load, spindle power and speed, feeds and rapids. Where the SE-1612 table ends with a tool magazine row of 24 pcs, the MSE table has no such row, and neither MSE accessory list names a magazine.
A fast spindle without a changer sounds like a contradiction until the work is considered. Finishing a mold cavity is often one ball mill running for hours. Skimming aluminum plate to thickness is one face mill. The operator loads the tool, measures it, and the machine runs. For a shop that does this kind of work on large parts, the magazine is the part of a machining center it uses least.
The standard spindle is a direct driven 15,000 rpm unit with a BBT-40 taper and 15/ 18.5 kW (20.1/ 24.8 hp). XYZ axis linear scale feedback is standard. Rapid traverse is 24 m/min, or 30 m/min as an option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,600 mm (63.0 in) |
| Y Axis Travel | 1,200 mm (47.2 in) |
| Z Axis Travel | 800/1,000 mm (31.5/39.4 in) (Opt.) |
| Table Size | 1,800x1,100 mm (70.9x43.3 in) |
| Max Table Load | 8,000 kg (17,637 lb) |
| Spindle Power Cont 30 Min | 15/ 18.5 kW (20.1/ 24.8 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-24,000 mm/min |
| Rapid Traverse Xyz | 24/30 m/min (Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 15,000 rpm direct driven spindle (BBT-40) as standard
- Cutting feed of 1-24,000 mm/min
- XYZ axis linear scale feedback is standard
- 8,000 kg (17,637 lb) table load on a compact portal machine
Limitations
- No tool magazine in the table or the accessory lists
- Smallest envelope of the MSE series
- Spindle power of 15/ 18.5 kW (20.1/ 24.8 hp) on a 40-taper
Best For
Frequently Asked Questions
01
None is listed. The MSE specification table has no tool magazine row, and the standard and optional accessory lists name no magazine. The SE-1612, with the same travels and spindle, lists 24 pcs.
02
X 1,600 mm (63.0 in), Y 1,200 mm (47.2 in), Z 800 mm with 1,000 mm optional. The table is 1,800x1,100 mm (70.9x43.3 in) and carries 8,000 kg (17,637 lb).
03
A direct driven spindle at 15,000 rpm with a BBT-40 taper is standard. Power is 15/ 18.5 kW (20.1/ 24.8 hp). Built-in spindles up to 28,000 rpm are optional, depending on the control.
04
Cutting feed is 1-24,000 mm/min. Rapid traverse is listed as 24/30 m/min (Opt.): 24 m/min standard and 30 m/min optional.
