Vision Wide GSA-4032

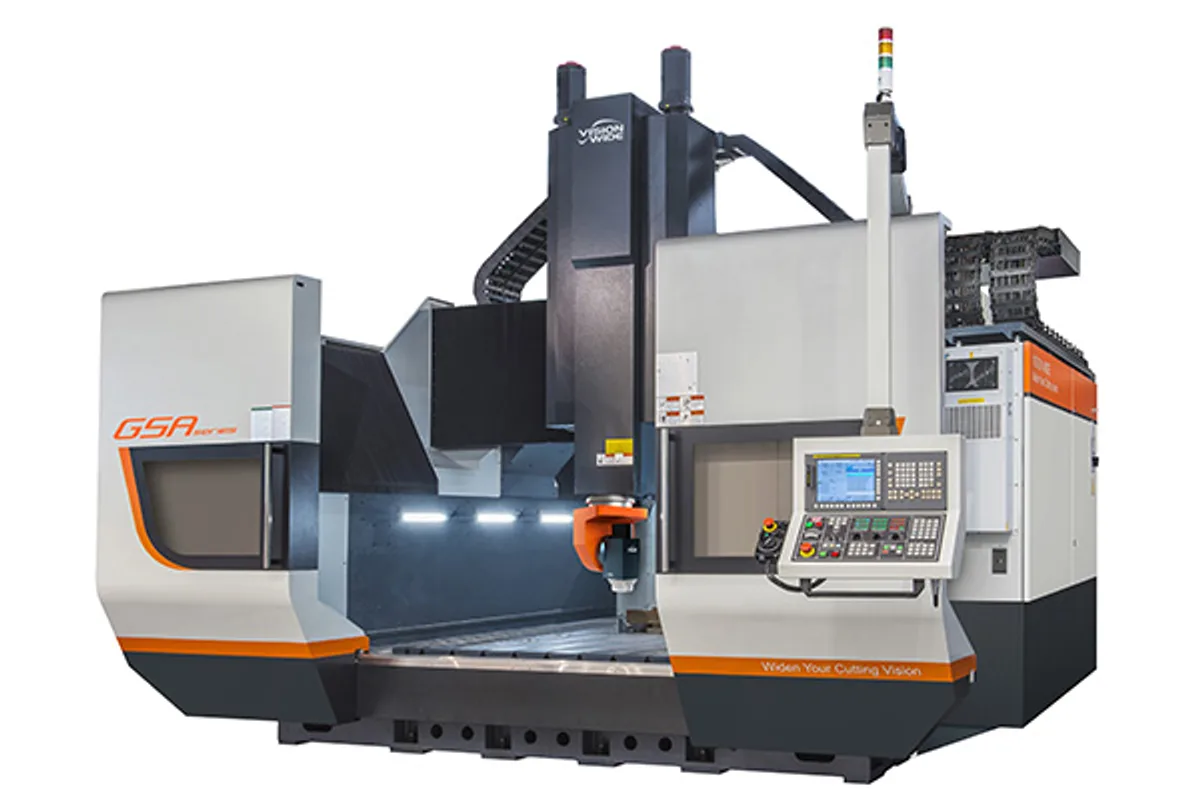

Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
spindle power cont 30 min
How much does the Vision Wide GSA-4032 cost?
Price estimate
We do not have a price for the Vision Wide GSA-4032 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Three versions of the indexing head are offered on the Vision Wide GSA-4032, and they set the character of the machine. The standard is the IAC-15,000rpm/HSK-A100. The options are an IAC-12,000 rpm / HSK-A100 and an IAC-24,000 rpm / HSK-A63.
The interface tells the story. HSK-A100 is a large taper for large cutters, so the two heads that use it are the ones for roughing and for long, heavy tools; the feature list quotes a tool clamping force of 20kN. HSK-A63 is the smaller interface, and the faster head that uses it is a finishing head for small ball mills in aluminum, graphite or hardened steel.
The specification table prints one power figure, 50/65 kW (67.1/87.2 hp), and one speed, 15,000 rpm, which match the standard head. Ratings for the two optional heads are not on the page, so the power of the head being quoted should be confirmed.
The frame is a 4,000 mm (157.5 in) by 3,200 mm (126.0 in) gantry over a 4,000×3,200 mm (157.5×126.0 in) fixed table. At this X length the ball screw support device is standard. Rapid traverse is 32/32/20 m/min, and a 20T magazine with arm type ATC is fitted unless the 32T is ordered.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,000 mm (157.5 in) |
| Y Axis Travel | 3,200 mm (126.0 in) |
| Z Axis Travel | 1,000/1,200 mm (39.4/47.2 in)(Opt.) |
| Table Size | 4,000×3,200 mm (157.5×126.0 in) |
| Spindle Power Cont 30 Min | 50/65 kW (67.1/87.2 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1~20,000 mm/min |
| Rapid Traverse Xyz | 32/32/20 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Three IAC head versions: IAC-15,000rpm/HSK-A100, IAC-12,000 rpm / HSK-A100 and IAC-24,000 rpm / HSK-A63
- 4,000×3,200 mm (157.5×126.0 in) fixed table
- Tool clamping force of 20kN quoted by the maker
- X axis ball screw support device is standard at 4m and above
Limitations
- Power ratings of the optional heads are not published
- The head version is chosen at order
- Standard magazine is 20T, with 32T as the only larger size
Best For
Frequently Asked Questions
01
Standard: IAC-15,000rpm/HSK-A100. Optional: IAC-12,000 rpm / HSK-A100 and IAC-24,000 rpm / HSK-A63. All are indexing two-axis heads.
02
50/65 kW (67.1/87.2 hp) at a spindle speed of 15,000 rpm. The page does not give separate power figures for the two optional heads.
03
X is 4,000 mm (157.5 in), Y is 3,200 mm (126.0 in) and Z is 1,000 mm with 1,200 mm optional. The GSA-4027 has the same X with 2,700 mm (106.3 in) of Y.
04
A vertical type tool magazine 20T with arm type ATC is standard. A vertical type tool magazine 32T with arm type ATC is available as an option.
