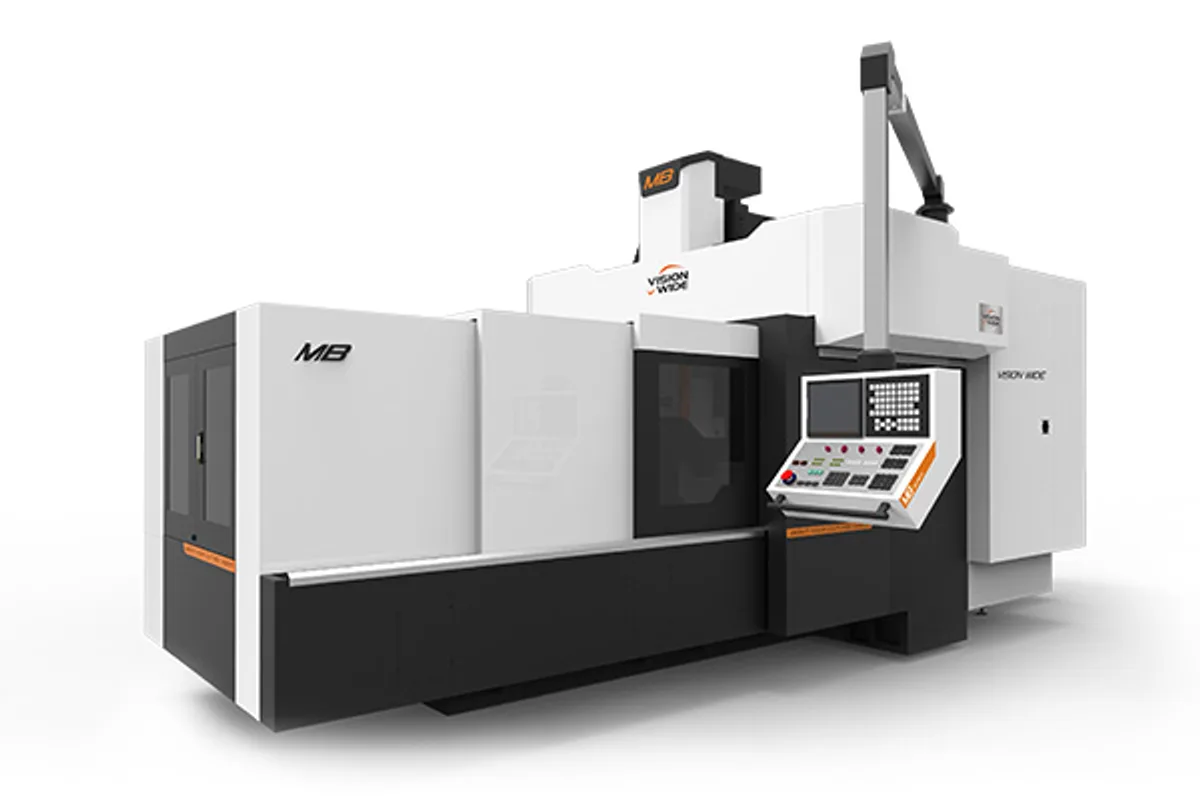

Vision Wide MB-2516
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide MB-2516 cost?
Price estimate
We do not have a price for the Vision Wide MB-2516 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The gear head of the Vision Wide MB-2516 is cast in one piece with the headstock, and its gears are a named grade. Vision Wide says it uses Japan-made JIS0 gears for the gear head to get high rigidity, high precision and low noise.
In a geared spindle the gearbox is the heart of the machine. It turns motor speed into torque across two ranges, and its quality decides how smoothly the spindle runs under load. Gears cut to a fine tolerance mesh quietly and transmit torque without the small speed ripple that shows as a pattern on a milled face. Casting the gear head and headstock as one keeps the shafts in line and gives the heat a single mass to spread through.
The maker adds that the Z-axis sits at the symmetrical position of the spindle motor, for smooth fine movement.
The MB-2516 has 2,500 mm (98.4 in) of X travel, 1,600 mm (63.0 in) of Y, and a 2,500×1,300 mm (98.4×51.2 in) table rated for 9,000 kg (19,841 lb). The spindle runs 4,000 rpm in standard form, 6,000 rpm as an option. Power is 18.5/22 kW (24.8/29.5 hp). All three axes are box ways with a 15 m/min rapid.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,500 mm (98.4 in) |
| Y Axis Travel | 1,600 mm (63.0 in) |
| Z Axis Travel | 800/1,020 mm (31.5/40.2 in)(OPT.) |
| Table Size | 2,500×1,300 mm (98.4×51.2 in) |
| Max Table Load | 9,000 kg (19,841 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) OPT.)(30/37 kW (40.2/49.6 hp) OPT.) |
| Spindle Speed 2 Step Gear | 4,000/6,000 rpm(OPT.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X/Y/Z：15 m/min |
| Tool Capacity | 32/40 pcs(OPT.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Japan-made JIS0 gears in the gear head, per the maker
- One-piece casting for gear head and headstock
- 2,500×1,300 mm (98.4×51.2 in) table for 9,000 kg (19,841 lb)
- Two-step gear spindle at 4,000 rpm, or 6,000 rpm optional
Limitations
- No spindle torque figure is published
- Y travel of 1,600 mm (63.0 in)
- Cutting feed of 1-7,000 mm/min
Best For
Frequently Asked Questions
01
Vision Wide states that Japan-made JIS0 gears are used for the gear head, for high rigidity, high precision and low noise, and that the gear head transmission and headstock are one piece casting.
02
X 2,500 mm (98.4 in), Y 1,600 mm (63.0 in), Z 800 mm or optionally 1,020 mm. The table is 2,500×1,300 mm (98.4×51.2 in) and carries 9,000 kg (19,841 lb).
03
4,000 rpm with the standard two-step gear spindle and 6,000 rpm with the optional one, listed as 4,000/6,000 rpm(OPT.). Power is 18.5/22 kW (24.8/29.5 hp).
04
15 m/min on X, Y and Z. The longer MB-3016 lists 12 m/min for X and Y and 15 m/min for Z. Cutting feed is 1-7,000 mm/min on both.
