Jingdiao JDCT600T(H)_A15SH

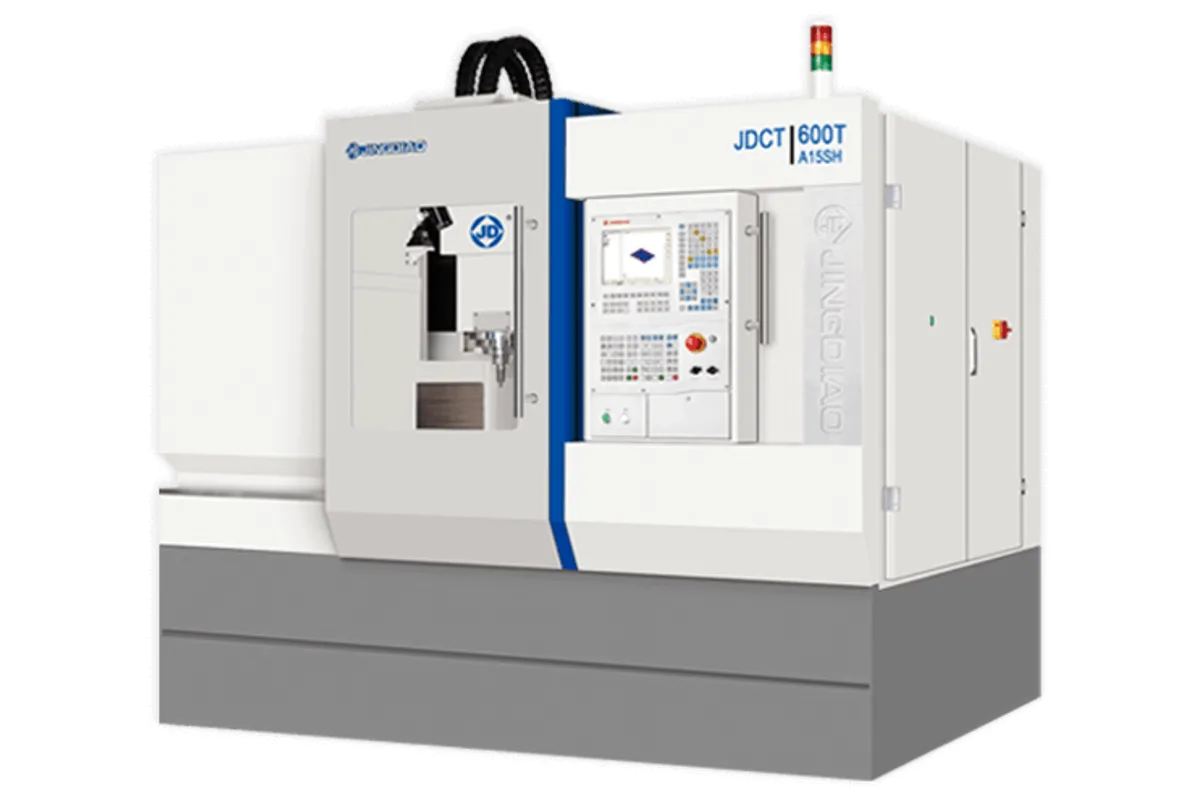

Image: en.jingdiao.com, Jingdiao
Key Specifications
Max Spindle
Spindle Taper
Table Size
Accuracy
Repeatability
x axis travel
How much does the Jingdiao JDCT600T(H)_A15SH cost?
Price estimate
We do not have a price for the Jingdiao JDCT600T(H)_A15SH that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Jingdiao JDCT600T(H)_A15SH is a 3-axis machining center for hardened die and mold parts, built on the same 600 mm (23.6 in) by 500 mm (19.7 in) travels as the maker's high-speed JDHGT600T(H) but specified for cutting, not for micron finishing. Its one spindle family is a 20,000 rpm HSK-A50 unit, standard without through coolant and optional with it. Z travel is 300 mm (11.8 in) on the JDCT600T_A15SH and 450 mm (17.7 in) on the JDCT600TH_A15SH.
The accuracy rows show where it sits. The data sheet lists positioning accuracy of 0.008 / 0.008 / 0.006 mm (X/Y/Z) and repeatability of 0.005 / 0.005 / 0.005 mm, and the product page states 5~20 μm machining accuracy. The JDHGT600T(H), with the same X and Y travel and the same 650 × 650 mm (25.6 × 25.6 in) table, lists 0.002 / 0.002 / 0.002 mm (X/Y/Z). Grating-scale feedback is not on this machine's standard list. A shop that does not need the tighter figure gets a taller Z and a larger-taper spindle as standard here.
Jingdiao names quenched mold steel and stainless steel as the target materials. The crossbeam rides on three guides, and the maker cites vibration suppression for surface quality and tool life. A spiral chip conveyor in the coolant tank is standard.
The table carries 300 kg (661 lb). On the 300 mm (11.8 in) version the magazine is an umbrella type with 16 tools or a chain type with 37 tools; the 450 mm (17.7 in) version takes the chain magazine only. Rapids are 18 m/min (709 ipm), the top feed 10 m/min (394 ipm), and the machine weighs 6,000 kg (13,228 lb). Rotary tables for 3+1 or 3+2 work are available.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 600 mm (23.6 in) |
| Y Axis Travel | 500 mm (19.7 in) |
| Z Axis Travel | 300 mm (11.8 in) on the JDCT600T_A15SH; 450 mm (17.7 in) on the JDCT600TH_A15SH |
| Table Size | 650 × 650 mm (25.6 × 25.6 in) |
| Max Table Load | 300 kg (661 lb) |
| Spindle Type | JD150S-20-HA50/C (standard) or JD150SC-20-HA50/A (coolant through spindle, optional) |
| Max Spindle Speed | 20,000 rpm |
| Spindle Taper | HSK-A50 |
| Tool Magazine | JDCT600T_A15SH: Umbrella Type (16 Tools) or Chain Type (37 Tools). JDCT600TH_A15SH: Chain Type (37 Tools) |
| Positioning Accuracy | 0.008 / 0.008 / 0.006 mm (X/Y/Z) |
| Repeatability | 0.005 / 0.005 / 0.005 mm (X/Y/Z) |
| Rapid Traverse Xyz | 18 m/min (709 ipm) |
| Cutting Feed Rate | 10 m/min (394 ipm) |
| Drive System | AC servo |
| CNC Control | JD50 Control System |
| Power Requirement | 3-Phase, 380V / 50Hz, or Customized |
| Air Pressure | ≥0.52 MPa |
| Machine Weight | 6,000 kg (13,228 lb) |
Specifications sourced from en.jingdiao.com — verified 2026-10-04
Strengths & Limitations
Strengths
- HSK-A50 spindle at 20,000 rpm as standard, suited to hardened steel and stainless
- Z travel of 450 mm (17.7 in) on the tall version, more than any JDHGT600T(H) configuration offers
- Rapids of 18 m/min (709 ipm)
- Crossbeam on three guides, with vibration suppression cited by the maker for surface quality and tool wear
- Chain magazine with 37 tools available on both heights
Limitations
- Positioning accuracy is 0.008 / 0.008 / 0.006 mm (X/Y/Z); the JDHGT600T(H) lists 0.002 / 0.002 / 0.002 mm (X/Y/Z)
- A single spindle speed, 20,000 rpm; no high-speed small-taper spindle is listed
- Table load is limited to 300 kg (661 lb)
- The coolant through spindle, chain magazine and on-machine measurement are options on the data sheet
Best For
Frequently Asked Questions
01
Z travel and magazine choice. The JDCT600T_A15SH has 300 mm (11.8 in) of Z and takes an umbrella type magazine with 16 tools or a chain type with 37 tools. The JDCT600TH_A15SH has 450 mm (17.7 in) of Z and is listed with the chain type magazine only. Both have 600 mm (23.6 in) of X and 500 mm (19.7 in) of Y.
02
A Jingdiao high-speed precision spindle running to 20,000 rpm with an HSK-A50 tool holder is standard on both versions. A coolant through spindle with the same speed and taper is the listed option. No other spindle speeds appear in the configuration table.
03
The data sheet lists 0.008 / 0.008 / 0.006 mm (X/Y/Z) positioning accuracy and 0.005 / 0.005 / 0.005 mm repeatability, calibrated with reference to ISO230-2. The product page states that 5~20 μm machining precision can be realized stably with appropriate software and hardware.
04
Travels in X and Y and the table are the same. The JDHGT600T(H) is the precision machine: 0.002 / 0.002 / 0.002 mm (X/Y/Z) positioning accuracy and a 32,000 rpm spindle option. The JDCT machine has the looser 0.008 / 0.008 / 0.006 mm (X/Y/Z) figure, the HSK-A50 spindle as standard and up to 450 mm (17.7 in) of Z.
05
The worktable is 650 × 650 mm (25.6 × 25.6 in) and carries a maximum of 300 kg (661 lb). The data sheet lists a machine weight of 6,000 kg (13,228 lb) and an air supply of ≥0.52 MPa. The electrical supply is 3-phase 380V / 50Hz unless customized.
