Tajmac-ZPS MCV1680i

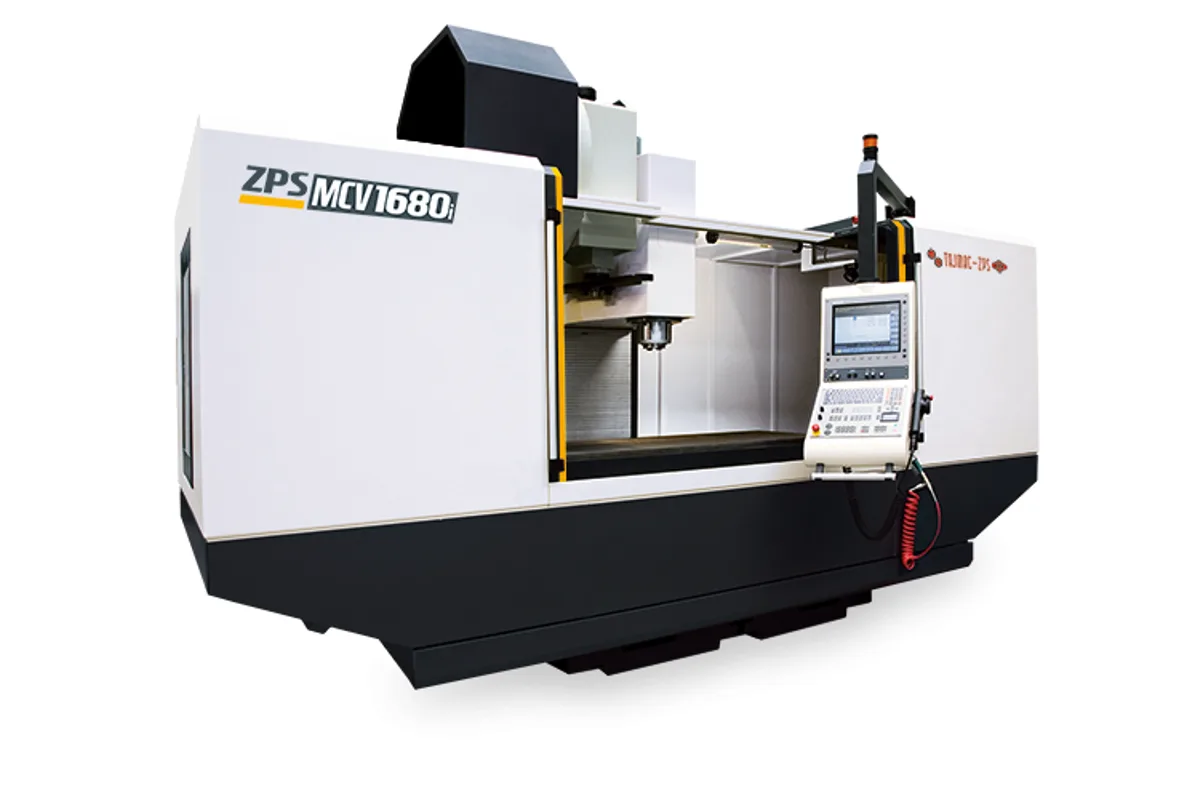

Image: tajmac-zps.cz, Tajmac-ZPS
Key Specifications
Tool Capacity
Table Size
Accuracy
Repeatability
x axis travel
y axis travel
How much does the Tajmac-ZPS MCV1680i cost?
Price estimate
We do not have a price for the Tajmac-ZPS MCV1680i that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Step up one frame size and the ZPS vertical line changes character. The MCV1680i has 1,700 mm (66.9 in) of X travel and 840 mm (33.1 in) on both Y and Z, a table load of 2,500 kg, and a machine weight of 13,800 kg, against 8,300 kg for the MCV1260i. It is built for load, and the brochure says so directly: the frame design allows what the maker calls enormous load, and the machines are favoured for FSW, friction stir welding, which needs high pressing force in the Z-axis.
The spindle list reflects that. Alongside the units shared with the smaller machine there is an ISO 50 gearbox spindle limited to 3,500 rpm that delivers 893 / 1,339 Nm, the highest torque in the vertical range. The 8,000 rpm gearbox spindle, in ISO 50 or HSK-100, gives 519 / 779 Nm on 19.5 / 29.3 kW. For lighter, faster work there are the belt-driven ISO 40 unit at 12,000 rpm and three electrospindles at 15,000 rpm, 18,000 rpm and, in HSK-100, 14,000 rpm with 25.0 / 37.0 kW.
Mass has a cost in dynamics. Rapid traverse and maximal working feed are 30 m/min and acceleration is 3.5 m/s2, both lower than on the MCV1260i. Positioning error to ISO 230-2 is listed at 0.009 mm with 0.0034 mm repeatability, measured directly by linear absolute rulers.
The 1,800 × 780 mm table has five 18 mm T-slots on a 160 mm pitch. A chip conveyor is standard on this size, with discharge to the left or the right. The automatic tool changer holds 30 tools in the 40-size tapers or 24 in the 50-size, and the 40-size version accepts tools 400 mm long. An optional pallet changer exchanges 1,800 x 780 mm pallets loaded to 1,500 kg in 30 s.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,700 mm (66.9 in) |
| Y Axis Travel | 840 mm (33.1 in) |
| Z Axis Travel | 840 mm (33.1 in) |
| Distance Spindle Nose to Table | 110 – 950 mm (4.3 – 37.4 in) |
| Cutting Feed Rate | 30 m/min |
| Rapid Traverse Xyz | 30 m/min |
| Acceleration | 3.5 m/s2 |
| Table Size | 1,800 × 780 mm (70.9 × 30.7 in) |
| T-Slots | 5 × 18 mm × 160 mm |
| Max Table Load | 2,500 kg (5,511 lb) |
| Positioning Accuracy | 0.009 mm (ISO 230-2) |
| Repeatability | 0.0034 mm (ISO 230-2) |
| Measuring System | direct (linear absolute rulers) |
| Spindle Unit Gearbox Iso 40 HSK A80 10000 RPM | 10,000 rpm; 22.5 / 31.5 kW (30.2 / 42.2 hp); 244 / 342 Nm (180 / 252 lb-ft) |
| Spindle Unit Gearbox Iso 50 8000 RPM | 8,000 rpm; 19.5 / 29.3 kW (26.1 / 39.3 hp); 519 / 779 Nm (383 / 575 lb-ft) |
| Spindle Unit Gearbox HSK 100 8000 RPM | 8,000 rpm; 19.5 / 29.3 kW (26.1 / 39.3 hp); 519 / 779 Nm (383 / 575 lb-ft) |
| Spindle Unit Gearbox Iso 50 3500 RPM | 3,500 rpm; 19.5 / 29.3 kW (26.1 / 39.3 hp); 893 / 1,339 Nm (659 / 988 lb-ft) |
| Spindle Unit Belt Iso 40 12000 RPM | 12,000 rpm; 19.5 / 29.3 kW (26.1 / 39.3 hp); 95 / 143 Nm (70.1 / 105 lb-ft) |
| Spindle Unit Electrospindle Iso 40 15000 RPM | 15,000 rpm; 25.0 / 31.0 kW (33.5 / 41.6 hp); 160 / 200 Nm (118 / 148 lb-ft) |
| Spindle Unit Electrospindle HSK A63 18000 RPM | 18,000 rpm; 25.0 / 31.0 kW (33.5 / 41.6 hp); 160 / 200 Nm (118 / 148 lb-ft) |
| Spindle Unit Electrospindle HSK 100 14000 RPM | 14,000 rpm; 25.0 / 37.0 kW (33.5 / 49.6 hp); 160 / 236 Nm (118 / 174 lb-ft) |
| Tool Capacity | 30 (60 option) for ISO 40 / CAT 40 / BT 40 / HSK-A63; 24 (48 option) for ISO 50 / CAT 50 / BT 50 / HSK-A100 |
| Max Tool Diameter (full magazine) | 80 mm (3.1 in), 160 mm (6.3 in) without adjacent tools (ISO 40); 110 mm (4.3 in), 210 mm (8.3 in) without adjacent tools (ISO 50) |
| Max Tool Length | 400 mm (15.7 in) (ISO 40); 350 mm (13.8 in) (ISO 50) |
| Max Tool Weight | 8 kg (18 lb) (ISO 40); 20 kg (44 lb) (ISO 50) |
| Tool Change Time | 2.9 s left changer, 3.9 s right changer (ISO 40); 3.5 s left changer, 3.9 s right changer (ISO 50) |
| Pallet Size | 1,800 x 780 mm (70.9 x 30.7 in) (automatic pallet changer, option) |
| Max Pallet Load | 1,500 kg (3,307 lb) (automatic pallet changer, option) |
| Pallet Exchange Time | 30 s (according to technological application) |
| Z Axis Travel with Pallet Changer | 720 mm (28.3 in) |
| Power Requirement | 3 × 400 V/50 Hz |
| Power Input | 35 kVA |
| Air Pressure | 0.6 – 0.8 MPa |
| Machine Floor Plan | 4,130 × 2,477 mm (162.6 × 97.5 in) |
| Machine Height | 3,533 mm (139.1 in) |
| Machine Weight | 13,800 kg (30,423 lb) |
| CNC Control | Heidenhain, Sinumerik, Fanuc |
Specifications sourced from tajmac-zps.cz — verified 2026-10-04
Strengths & Limitations
Strengths
- ISO 50 gearbox spindle with 893 / 1,339 Nm (659 / 988 lb-ft) at up to 3,500 rpm
- Table load of 2,500 kg (5,511 lb) on a 1,800 × 780 mm (70.9 × 30.7 in) table
- 840 mm (33.1 in) of travel on both Y and Z
- Chip conveyor is a standard accessory, with discharge to either side
- Eight listed spindle units, including three electrospindles from 14,000 rpm to 18,000 rpm
- Frame suited to FSW work, which needs high force in the Z-axis
Limitations
- Rapid traverse is 30 m/min and acceleration 3.5 m/s2, slower than the 40 m/min and 5 m/s2 of the MCV1260i
- Positioning error of 0.009 mm is slightly looser than the 0.008 mm listed for the MCV1260i
- The pallet changer cuts the load to 1,500 kg (3,307 lb) and Z travel to 720 mm (28.3 in)
- 13,800 kg (30,423 lb) on a 4,130 × 2,477 mm floor plan needs a suitable foundation and rigging
Best For
Frequently Asked Questions
01
X is 1,700 mm (66.9 in), Y is 840 mm (33.1 in) and Z is 840 mm (33.1 in), without the automatic pallet changer. The distance from spindle nose to table runs from 110 to 950 mm. With the pallet changer, travel in the Z-axis is 720 mm.
02
The planetary gearbox ISO 50 unit at 3,500 rpm: 893 / 1,339 Nm on 19.5 / 29.3 kW. The 8,000 rpm gearbox units in ISO 50 and HSK-100 give 519 / 779 Nm, and the ISO 40 or HSK-A80 gearbox unit gives 244 / 342 Nm at 10,000 rpm.
03
The maker says the machines are favoured in FSW technologies, which require high pressure force in the Z-axis, and attributes this to a frame design that allows very high load. The brochure does not give a Z-axis force figure, so ask for it against your process.
04
Only in length. The MCV2080i has 2,100 mm of X travel, a 2,200 × 780 mm table rated for 3,000 kg and weighs 14,600 kg. The MCV1680i has 1,700 mm, a 1,800 × 780 mm table for 2,500 kg, and weighs 13,800 kg. Y, Z, feeds, spindles and tool changers are the same.
05
In the 40-size tapers: 80 mm diameter, or 160 mm without adjacent tools, 400 mm length and 8 kg. In the 50-size tapers: 110 mm, or 210 mm without adjacent tools, 350 mm length and 20 kg. A second magazine is optional.
