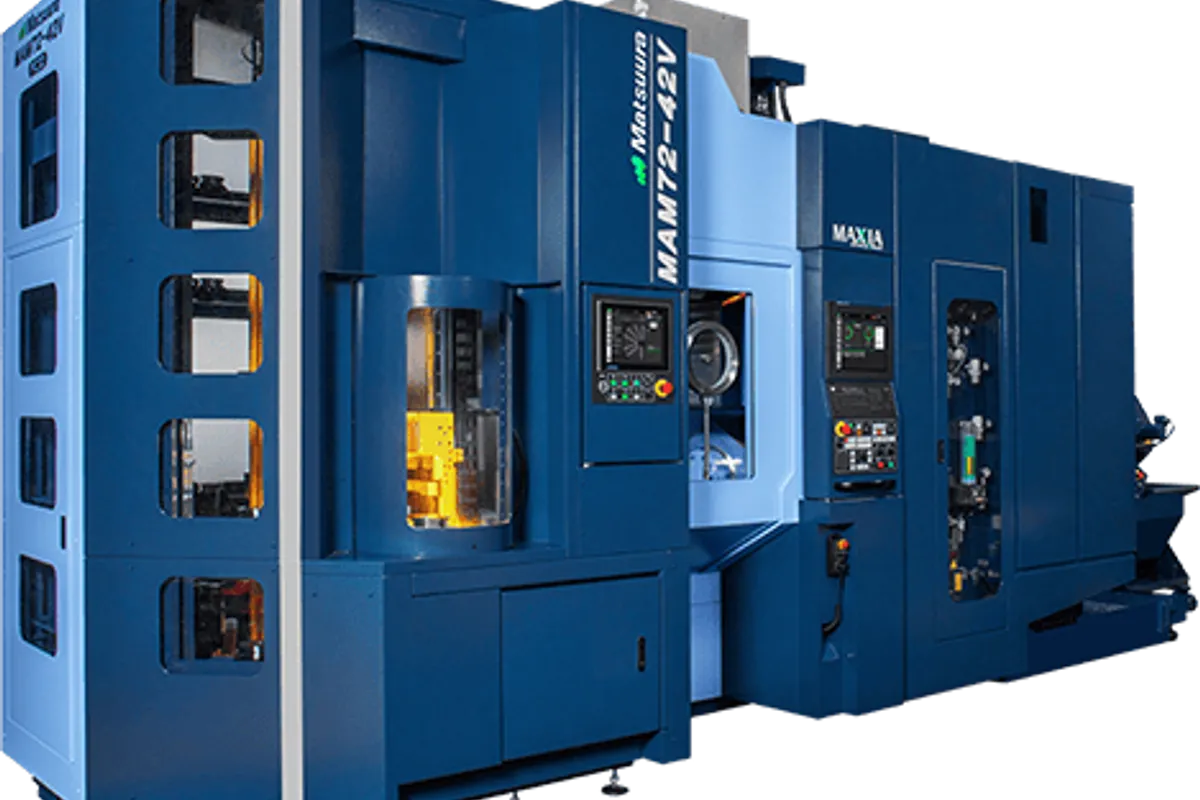

Matsuura MAM72-42V

$500,000 - $750,000 Updated 2026-03-16

Key Specifications

X Travel

550 mm (21.7 in)

Y Travel

490 mm (19.3 in)

Z Travel

510 mm (20.1 in)

Max Spindle

40 ~ 20.000 min-1

Spindle Taper

BT40 (HSK-A63 optional)

Tool Capacity

130

Overview

The Matsuura MAM72-42V is the mid-range entry in the MAM72 family of multi-pallet 5-axis vertical machining centers. Where the MAM72-35V tops out at 350 mm workpiece diameter, the 42V bumps that to 420 mm (16.5 in) with a proportional increase in work envelope and pallet capacity. It fills the gap between the 35V and the larger 63V for shops running mid-sized aerospace and medical components that need unattended production capability.

The machine ships with a standard 32-pallet stocker and 40-tool magazine, scalable up to 520 tools. The rotary table delivers full 360-degree C-axis rotation and an A-axis tilt range of +30 to -120 degrees for excellent undercut access. The spindle runs a BT40 taper at 12,000 RPM standard, with 20,000 RPM and HSK-A63 options available. X/Y/Z travel measures 550 x 490 x 510 mm (21.7 x 19.3 x 20.1 in), and rapid traverse hits 50 m/min on all linear axes.

What makes the MAM72 series special is Matsuura's approach to automation. The tower pallet system is built into the machine footprint rather than bolted on, keeping the cell compact. Matsuura's MIMS (Matsuura Intelligent Meister System) cell controller handles scheduling, tool life management, and pallet prioritization. Combined with the G-Tech 31i touch-screen control, it lets a single operator manage multiple MAM72 cells simultaneously. For shops doing high-mix medical implants, watch components, or small aerospace parts, the 42V gives you serious unattended capacity without the complexity and cost of a standalone FMS.

Full Specifications

Parameter	Value
X-Axis Travel	550 mm (21.7 in)
Y-Axis Travel	490 mm (19.3 in)
Z-Axis Travel	510 mm (20.1 in)
A Axis Range	+30° to -120°
C Axis Range	360° (continuous)
Max Spindle Speed	40 ~ 20.000 min-1
Spindle Taper	BT40 (HSK-A63 optional)
Spindle Motor Power	15 / 18,5 kW
Tool Capacity	130
Pallet Capacity	32 pallets standard
Table Diameter	420 mm (16.5 in)
Max Workpiece Size	420 mm dia x 315 mm H (16.5 x 12.4 in)
Table Load Capacity	80 kg (176 lb) per pallet
Rapid Traverse Xyz	50 m/min (1,969 ipm)
Tool Change Time	1.3 sec (tool-to-tool)
Machine Weight	12,000 kg (26,455 lb)
Floor Space Required	2,900 x 4,200 mm (with pallet stocker)
CNC Control	Matsuura G-Tech 31i (FANUC 31i-B5 based, touch screen)
X Axis	60 m/min
Y Axis	60 m/min
Z Axis	60 m/min
B Axis	50 min-1
C Axis	100 min-1
Number Of Pallets	32
Pallet Size	Ø 130 mm
Loading Capacity Per Pallet	80 kg
Max Work Piece Size	Ø 420 mm x H 315 mm
Max Spindle Torque	108,5 Nm / 1.320 min-1
Tool Holder	SK40 / BT40
Name	LinkedIn
Provider	LinkedIn Ireland Unlimited Company
Purpose	This is an advertising service. This service records what happens after a click on an advert and posts placed by us via LinkedIn when users subsequently visit the website.
Data Protection	https://www.linkedin.com/legal/privacy-policy

Specifications sourced from matsuura.de — verified 2026-03-28

Strengths & Limitations

Strengths

Integrated 32-pallet tower stocker enables true lights-out production without expanding the machine footprint significantly
Tool magazine scales up to 520 positions, supporting high-mix production without constant operator intervention for tool setup
MIMS cell controller provides intelligent scheduling, tool life tracking, and multi-cell management from a single operator station
420 mm workpiece diameter hits the sweet spot for mid-sized aerospace and medical components that outgrow the 35V
Compact cell footprint relative to capacity — delivers FMS-level automation without the floor space penalty of a standalone system
Proven Matsuura reliability with the MAM72 platform having hundreds of installations worldwide in demanding production environments

Limitations

BT40 spindle limits aggressive roughing in hard metals — shops cutting titanium and Inconel may want the 63V with its BT50 option
80 kg per-pallet load capacity is restrictive for heavier fixtures and larger steel workpieces
High upfront cost ($500K+) makes it a tough sell unless you can genuinely fill those 32 pallets with production work
Matsuura's U.S. service footprint is smaller than Mazak or DMG Mori, with longer response times outside major metro areas
MIMS software learning curve is real — plan for operator training time before the cell runs at full efficiency

Best For

Medical device manufacturers running high-mix orthopedic implants and surgical instruments with tight tolerances Aerospace prototype and production shops machining complex aluminum and titanium components under 420 mm diameter Contract manufacturers that need unattended overnight and weekend production across diverse part families Watch and precision instrument makers who benefit from the multi-pallet system for small, complex parts Shops scaling from single-pallet 5-axis machines to true cell-level automation without jumping to a full FMS

Frequently Asked Questions

01 What does a Matsuura MAM72-42V cost?

New MAM72-42V pricing typically falls between $500,000 and $750,000 depending on spindle selection, tool magazine size, and software options. Fully loaded configurations with 520-tool magazines and HSK spindles can push past $800,000. The used market for these is thin since most shops that buy them keep them running.

02 How does the MAM72-42V compare to the MAM72-35V?

The 42V is essentially a scaled-up 35V with a larger workpiece envelope (420 mm vs 350 mm diameter), more X/Y travel, and a higher pallet load capacity. The spindle options and control platform are shared. If your parts fit within 350 mm, the 35V costs less and has a slightly smaller footprint. The 42V makes sense when you consistently need that extra envelope.

03 Can one operator really run multiple MAM72 cells?

Yes, that's a core selling point. The MIMS cell controller monitors tool life, pallet scheduling, and machine status across multiple cells from a single interface. One skilled operator can realistically manage 2-4 MAM72 machines depending on part complexity and changeover frequency. The key is having enough pallets loaded and tools in the magazine to keep the machines running between operator touches.

04 What's the difference between the MAM72-42V and a standalone 5-axis with a robot?

The MAM72-42V's integrated pallet stocker is purpose-built for the machine, sharing the same control system and floor footprint. A standalone 5-axis with a bolt-on robot cell typically costs more, takes more floor space, requires integration engineering, and adds complexity. The MAM72 approach trades some flexibility for simplicity and reliability — the automation just works out of the box.
