Haas Mini Mill

List US$47,995 Specs verified 2026-10-02 · haascnc.com Updated 2026-10-02

Key Specifications

X Travel

16 in (406 mm)

Y Travel

14 in (356 mm)

Z Travel

15 in (381 mm)

Max Spindle

8,000 rpm

Spindle Taper

CT or BT 40

Tool Capacity

10 or 20

How much does the Haas Mini Mill cost?

Manufacturer list price

US$47,995

As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.

Overview

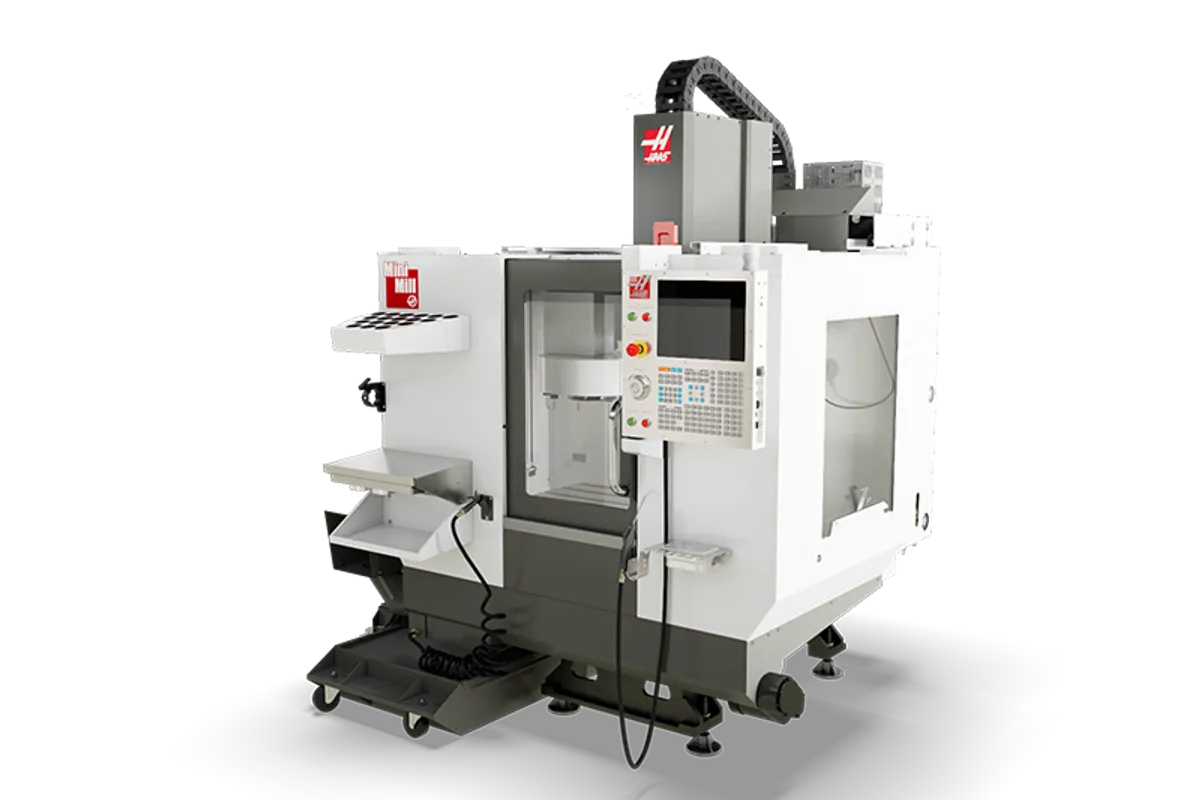

The Haas Mini Mill is a small 40-taper vertical machining center with 16 × 14 × 15 in (406 × 356 × 381 mm) of travel, a 10 hp (7.5 kW) spindle that runs to 8,000 rpm and a 36 × 12 in (914 × 305 mm) table. Haas lists a starting price of US$47,995.

Its most practical figure is the power supply. Alongside the three-phase choices of 220 VAC at 25 A and 440 VAC at 13 A, Haas lists a single-phase supply of 220 VAC at 40 A, which lets the machine go into buildings without three-phase service. It still needs compressed air, 4 scfm at 100 psi (113 L/min at 6.9 bar).

The spindle is belt-driven with grease-packed bearings and air cooling. Peak torque is 45 ft-lbf (61 N·m) at 500 rpm, so the pull sits at the bottom of the speed range. That is reasonable for drilling and tapping steel with modest tools, and less suited to long high-speed finishing than the Super Mini Mill, which runs to 10,000 rpm on 15 hp (11.2 kW).

The table is longer than the X travel, 36 in (914 mm) against 16 in (406 mm), so a vise and a second fixture can share it, though only the area inside the travels can be reached in one setup. Table load is 500 lb (227 kg). Thrust is 2,000 lbf (8,896 N) on every axis, rapids are 800 ipm (20.3 m/min) and cutting feed reaches 650 ipm.

Tools sit in a carousel listed with 10 or 20 pockets. A change takes 4.2 s tool-to-tool and 5 s chip-to-chip, and tools can be up to 3.5 in (89 mm) in diameter, 12 in (305 mm) long and 12 lb (5.4 kg). The machine ships at 4,450 lb (2,018.5 kg).

Full Specifications

Parameter	Value
X-Axis Travel	16 in (406 mm)
Y-Axis Travel	14 in (356 mm)
Z-Axis Travel	15 in (381 mm)
Spindle Nose to Table (max)	19 in (483 mm)
Spindle Nose to Table (min)	4 in (102 mm)
Spindle Motor Power	10 hp (7.5 kW)
Max Spindle Speed	8,000 rpm
Spindle Torque	45 ft-lbf @ 500 rpm (61 N·m @ 500 rpm)
Spindle Drive	Direct Speed, Belt Drive
Spindle Taper	CT or BT 40
Spindle Bearing Lubrication	Grease Packed
Spindle Cooling	Air Cooled
Table Size	36 × 12 in (914 × 305 mm)
T-Slot Width	0.626 in to 0.63 in (15.9 mm to 16 mm)
T-Slot Center Distance	4.33 in (110 mm)
T-Slots	3
Max Table Load	500 lb (227 kg)
Max Cutting Feedrate	650 ipm
Rapid Traverse Rate	800 ipm (20.3 m/min)
Max Thrust X	2,000 lbf (8,896 N)
Max Thrust Y	2,000 lbf (8,896 N)
Max Thrust Z	2,000 lbf (8,896 N)
Tool Changer Type	Carousel
Tool Capacity	10 or 20
Max Tool Diameter (full magazine)	3.5 in (89 mm)
Max Tool Length	12 in (305 mm)
Max Tool Weight	12 lb (5.4 kg)
Tool Change (tool-to-tool)	4.2 s
Tool Change (chip-to-chip)	5 s
Coolant Capacity	45 gal (170 L)
Air Required	4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose	3/8 in
Air Coupler	3/8 in
Air Pressure Min	80 psi (5.5 bar)
Electrical Single Phase	220 VAC 1-phase, 40 A
Electrical Service (low voltage)	220 VAC 3-phase, 25 A
Electrical Service (high voltage)	440 VAC 3-phase, 13 A
Shipping Domestic Pallet	90 × 80 × 92 in (229 × 203 × 234 cm)
Shipping Export Pallet	90 × 80 × 92 in (229 × 203 × 234 cm)
Machine Weight	4,450 lb (2,018.5 kg)

Specifications sourced from haascnc.com — verified 2026-10-02

Strengths & Limitations

Strengths

Runs on single-phase 220 VAC at 40 A, or three-phase at 220 VAC 25 A or 440 VAC 13 A
CT or BT 40 spindle with 45 ft-lbf (61 N·m) of torque at 500 rpm
36 × 12 in (914 × 305 mm) table with three T-slots and a 500 lb (227 kg) load rating
Carousel takes tools up to 3.5 in (89 mm) in diameter and 12 in (305 mm) long
Ships at 4,450 lb (2,018.5 kg) on a 90 × 80 × 92 in (229 × 203 × 234 cm) pallet

Limitations

Travels are 16 × 14 × 15 in (406 × 356 × 381 mm); anything larger needs a bigger machine
10 hp (7.5 kW) and 8,000 rpm; the Super Mini Mill has 15 hp (11.2 kW) and 10,000 rpm
Tool changes take 4.2 s tool-to-tool and 5 s chip-to-chip
Rapids of 800 ipm (20.3 m/min) and cutting feed of 650 ipm are below the 1,200 ipm (30.5 m/min) and 833 ipm (21.2 m/min) of the Super Mini Mill

Best For

Shops and garages with only single-phase 220 VAC power Small parts within 16 × 14 × 15 in (406 × 356 × 381 mm) Second-operation work beside larger machines Prototype and short-run milling, drilling and tapping with 40-taper tools Training and toolroom use

Frequently Asked Questions

01 Can the Mini Mill run on single-phase power?

Yes. Haas lists a single-phase supply of 220 VAC at 40 A, as well as three-phase supplies of 220 VAC at 25 A and 440 VAC at 13 A. It still needs compressed air: 4 scfm at 100 psi (113 L/min at 6.9 bar), with a minimum of 80 psi (5.5 bar).

02 What is the difference between the Mini Mill and the Super Mini Mill?

Travels, table and table load are the same. The Super Mini Mill has a 15 hp (11.2 kW), 10,000 rpm spindle, 1,200 ipm (30.5 m/min) rapids and a 30+1 tool changer. The Mini Mill has a 10 hp (7.5 kW), 8,000 rpm spindle, 800 ipm (20.3 m/min) rapids and a carousel of 10 or 20 tools. Peak torque runs the other way: 45 ft-lbf (61 N·m) at 500 rpm here, against 22 ft-lbf (29.8 N·m) at 5,000 rpm on the Super Mini Mill.

03 How does the Mini Mill differ from the Mini Mill-EDU?

The Mini Mill-EDU has the same travels, table and 10 hp (7.5 kW) rating, but a 6,000 rpm spindle and 400 ipm (10.2 m/min) for both rapids and cutting feed, and its 10-tool carousel is marked optional. The Mini Mill runs to 8,000 rpm, rapids at 800 ipm (20.3 m/min) and cuts at up to 650 ipm.

04 How big a part fits on the Mini Mill?

Travel is 16 in (406 mm) in X, 14 in (356 mm) in Y and 15 in (381 mm) in Z, and the spindle nose sits between 4 in (102 mm) and 19 in (483 mm) above the table. The table is 36 × 12 in (914 × 305 mm) and holds 500 lb (227 kg), so a part can overhang the travel, but only the area inside the travels can be machined in one setup.

05 What tools does the Mini Mill changer take?

CT or BT 40 holders in a carousel that Haas lists with 10 or 20 tools. A tool can be up to 3.5 in (89 mm) in diameter, 12 in (305 mm) long and 12 lb (5.4 kg). Changes take 4.2 s tool-to-tool and 5 s chip-to-chip.
