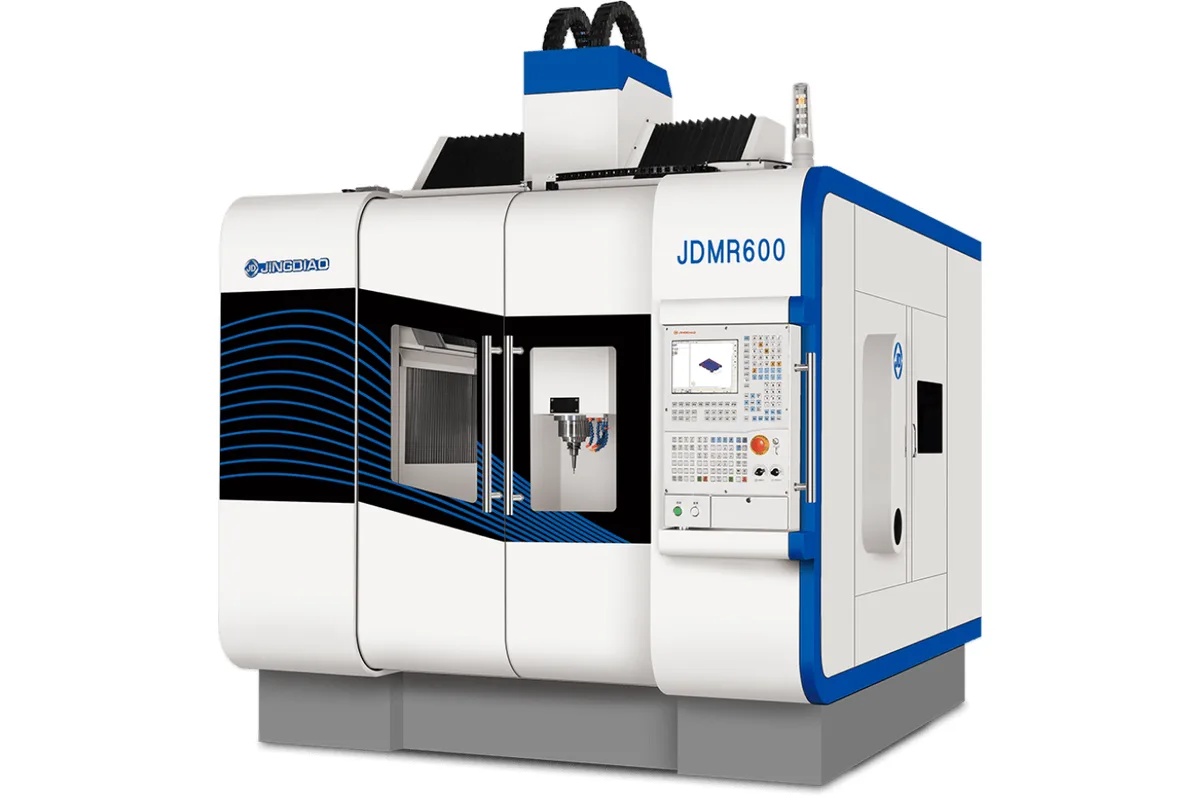

Jingdiao JDMR600
Image: en.jingdiao.com, Jingdiao
Key Specifications
Max Spindle
Spindle Taper
Table Size
Accuracy
Repeatability
x axis travel
How much does the Jingdiao JDMR600 cost?
Price estimate
We do not have a price for the Jingdiao JDMR600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Jingdiao JDMR600 is the heavy-duty machine of the maker's 5-axis high-speed range: a moving-beam gantry over a cradle-type A/C rotary table of Ø630 mm (24.8 in) that carries 400 kg (882 lb). Linear travels are 650 mm (25.6 in) in X, 660 mm (26.0 in) in Y and 500 mm (19.7 in) in Z. Jingdiao sells it for heavy precision mold parts and for drilling, milling, boring and grinding of die castings.
The layout is the point. Because the gantry moves, the rotary table does not travel in X or Y, so the mass being accelerated does not change with the weight of the part. Both the load rating and the stiffness under indexed cuts come from the table itself: the A axis is driven from both sides, and a holding brake clamps the table during positioning work. A swings from -120° to 90° and C turns a full 360°. Heavy parts go in through a top door that opens for loading from above.
Spindle and magazine come as pairs. A 20,000 rpm HSK-A50 spindle is listed with a chain magazine of 63 tools. The two HSK-A63 spindles, one of them with coolant through the spindle, run to 15,000 rpm and are listed with 51 tools. The larger taper is the natural choice for boring bars and long-reach tools in die castings and deep cavities, and the maker points to the through-coolant version for deep holes.
The data sheet gives 0.003 / 0.003 / 0.003 mm (X/Y/Z) positioning accuracy and 8 / 8 sec (A/C) on the rotary axes. Linear rapids are 15 m/min (591 ipm) and both rotary axes reach 60 / 60 rpm (A/C). An internal spray system, a spiral chip conveyor and an external scraper chip conveyor are standard according to the product page. The machine weighs 12,000 kg (26,455 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 650 mm (25.6 in) |
| Y Axis Travel | 660 mm (26.0 in) |
| Z Axis Travel | 500 mm (19.7 in) |
| A Axis Range | -120° to 90° |
| C Axis Range | 360° |
| Table Size | Ø630 mm (24.8 in) |
| Max Table Load | 400 kg (882 lb) |
| Spindle Type | JD150S-20-HA50/C, JD180S-15-HA63/B or JD180SC-15-HA63/B (coolant through spindle) |
| Max Spindle Speed | 20,000 rpm (HSK-A50 spindle) or 15,000 rpm (HSK-A63 spindles) |
| Spindle Taper | HSK-A50 or HSK-A63 |
| Tool Magazine | Chain Type (63 Tools) with the HSK-A50 spindle; Chain Type (51 Tools) with the HSK-A63 spindles |
| Positioning Accuracy | 0.003 / 0.003 / 0.003 mm (X/Y/Z) |
| Positioning Accuracy Rotary | 8 / 8 sec (A/C) |
| Repeatability | 0.002 / 0.002 / 0.002 mm (X/Y/Z) |
| Repeatability Rotary | 5 / 5 sec (A/C) |
| Rapid Traverse Xyz | 15 m/min (591 ipm) |
| Rapid Traverse Rotary | 60 / 60 rpm (A/C) |
| Cutting Feed Rate | 10 m/min (394 ipm) |
| Cutting Feed Rate Rotary | 60 / 60 rpm (A/C) |
| Drive System | AC Servo |
| CNC Control | JD50 Control System |
| Power Requirement | 3-Phase, 380V / 50Hz, or Customized |
| Air Pressure | 0.35-0.4 MPa |
| Machine Weight | 12,000 kg (26,455 lb) |
Specifications sourced from en.jingdiao.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Cradle-type A/C table of Ø630 mm (24.8 in) rated for 400 kg (882 lb), with double drive on the A axis
- Moving gantry design: the rotary table does not travel in X or Y
- HSK-A63 spindles at 15,000 rpm for large and long tools, one with coolant through the spindle
- Chain magazines with 63 tools or 51 tools, depending on the spindle
- Holding brake on the rotary table for rigidity in positioning (3+2) work
- Top door opens for loading and unloading heavy workpieces
Limitations
- Linear positioning accuracy is 0.003 / 0.003 / 0.003 mm (X/Y/Z), looser than the 0.002 mm of the JDGR400T
- The 20,000 rpm spindle is the fastest listed; the 32,000 rpm precision spindle available on the JDGR300 is not offered
- A-axis tilt stops at 90° on the positive side
- A probe, laser tool setter and coolant chilling are on the options list of the data sheet
- Weighs 12,000 kg (26,455 lb), which needs foundation and rigging planning
Best For
Frequently Asked Questions
01
The maximum workload is 400 kg (882 lb) on a Ø630 mm (24.8 in) table. Jingdiao attributes the rating to the double drive technology applied to the rotary table, and adds a holding brake mechanism to keep the table rigid during positioning processing.
02
X travel is 650 mm (25.6 in), Y is 660 mm (26.0 in) and Z is 500 mm (19.7 in). The A axis tilts from -120° to 90° and the C axis rotates 360°. With the movable gantry structure the rotary table does not need to move in the X or Y direction.
03
Three configurations are listed. A high-speed precision spindle at 20,000 rpm with HSK-A50 comes with a chain type magazine holding 63 tools. Two HSK-A63 spindles at 15,000 rpm, one a coolant through spindle, come with a chain type magazine holding 51 tools.
04
The data sheet lists 0.003 / 0.003 / 0.003 mm (X/Y/Z) positioning accuracy and 0.002 / 0.002 / 0.002 mm repeatability on the linear axes, with 8 / 8 sec (A/C) positioning accuracy and 5 / 5 sec (A/C) repeatability on the rotary axes.
05
The JDMR600 is the heavier-duty machine. Its table carries 400 kg (882 lb) where the JDGR400T is rated for 150 kg (331 lb), and it offers HSK-A63 spindles. The JDGR400T lists tighter linear positioning accuracy, 0.002 / 0.002 / 0.002 mm (X/Y/Z), and weighs 10,700 kg (23,589 lb).
