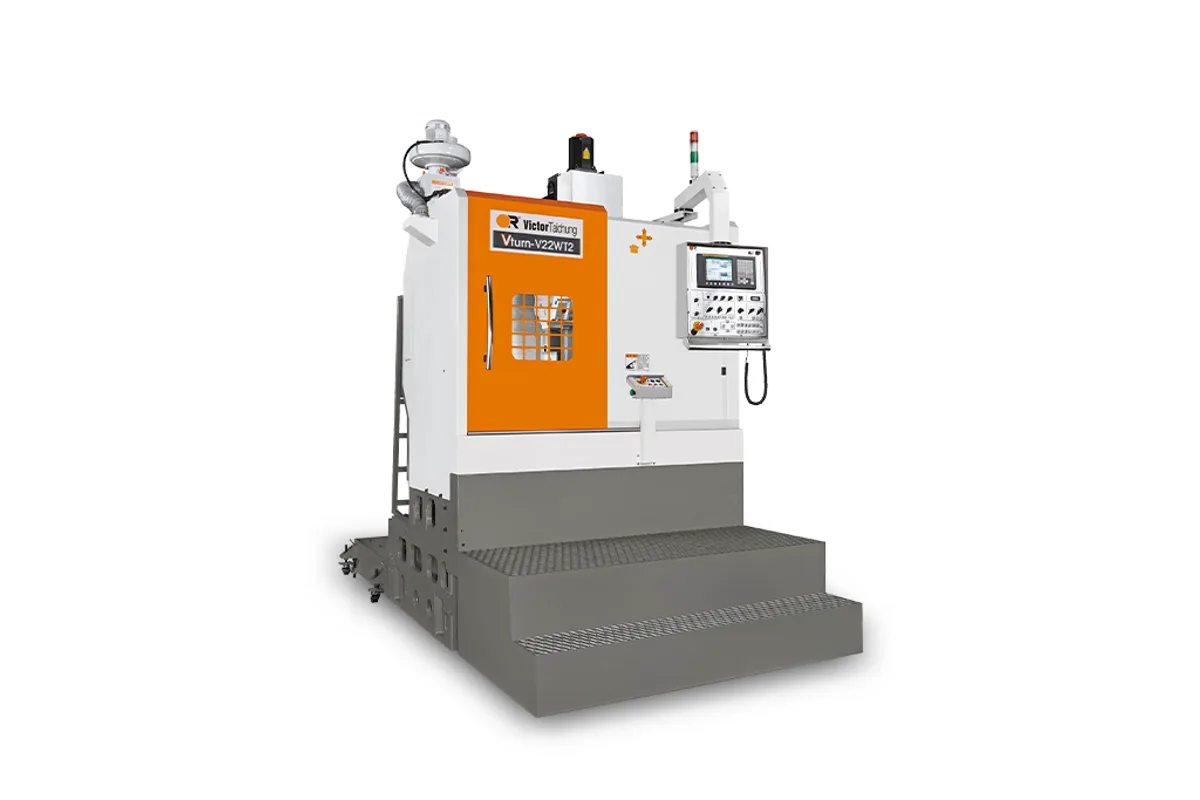

Victor Taichung Vturn-V22WT2
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
max wheel size
max turning diameter
x axis travel
z axis travel
spindle nose
How much does the Victor Taichung Vturn-V22WT2 cost?
Price estimate
We do not have a price for the Victor Taichung Vturn-V22WT2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vturn-V22WT2 is the twin-tool-group version of the maker's vertical wheel lathe for wheels up to 22.5 x 10.5J in. Its turret row reads 6+6 tools, and the maker's series notes describe two VDI turrets that complete 2 turning operations simultaneously to reduce cutting time.
Cutting figures match the single version: Ø750 mm (Ø29.52 in) maximum turning diameter, 420 mm (16.53 in) of X travel, 446 mm (17.55 in) of Z travel, and an A2-13 spindle at 2,500 rpm. Tooling is VDI-40 for □32 shanks.
The second set of tools shows in the weight, 11,000 kg (24,250.81 lb) against 7,000 kg (15,432.33 lb) for the Vturn-V22W. Victor Taichung calls the design a vertical 4-axis CNC lathe made specifically for alloy wheel production, and lists a rotary changer as an option to keep the spindle from standing idle between wheels. For a wheel plant the argument is cycle time per spindle: two cuts at once on one chucking.
Full Specifications
| Parameter | Value |
|---|---|
| Max Wheel Size | 22.5 x 10.5J in |
| Max Turning Diameter | Ø750 mm (Ø29.52 in) |
| X Axis Travel | 420 mm (16.53 in), 0 ~ +420 mm (0 ~ +16.53 in) |
| Z Axis Travel | 446 mm (17.55 in), 0 ~ +446 mm (0 ~ +17.55 in) |
| Max Spindle Speed | 2,500 rpm |
| Spindle Nose | A2-13 |
| Turret Tools | 6+6 |
| Tool Shank Size | VDI-40(□32) |
| Machine Weight | 11,000 kg (24,250.81 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 6+6 tools, with two VDI turrets cutting at the same time per the maker
- Vertical 4-axis layout made for alloy wheel production
- 2,500 rpm A2-13 spindle and Ø750 mm (Ø29.52 in) turning diameter
- Optional rotary changer to avoid spindle idle time
Limitations
- Weighs 11,000 kg (24,250.81 lb), far more than the single version
- Travels are only 420 mm (16.53 in) in X and 446 mm (17.55 in) in Z
- Dedicated to wheels; no general turning data is listed
Best For
Frequently Asked Questions
01
The table lists 6+6 tools for this model where the Vturn-V22W lists 6. The maker's notes for the vertical wheel lathes describe two VDI turrets that carry out 2 turning operations simultaneously.
02
Maximum wheel size 22.5 x 10.5J in, maximum turning diameter Ø750 mm (Ø29.52 in), X travel 420 mm (16.53 in), Z travel 446 mm (17.55 in), 2,500 rpm on an A2-13 nose, and a weight of 11,000 kg (24,250.81 lb).
03
The table maximum is 22.5 x 10.5J in. Victor Taichung describes its vertical wheel lathes as a solution for 15~22-inch or 17~24-inches wheel turning, depending on the model.
