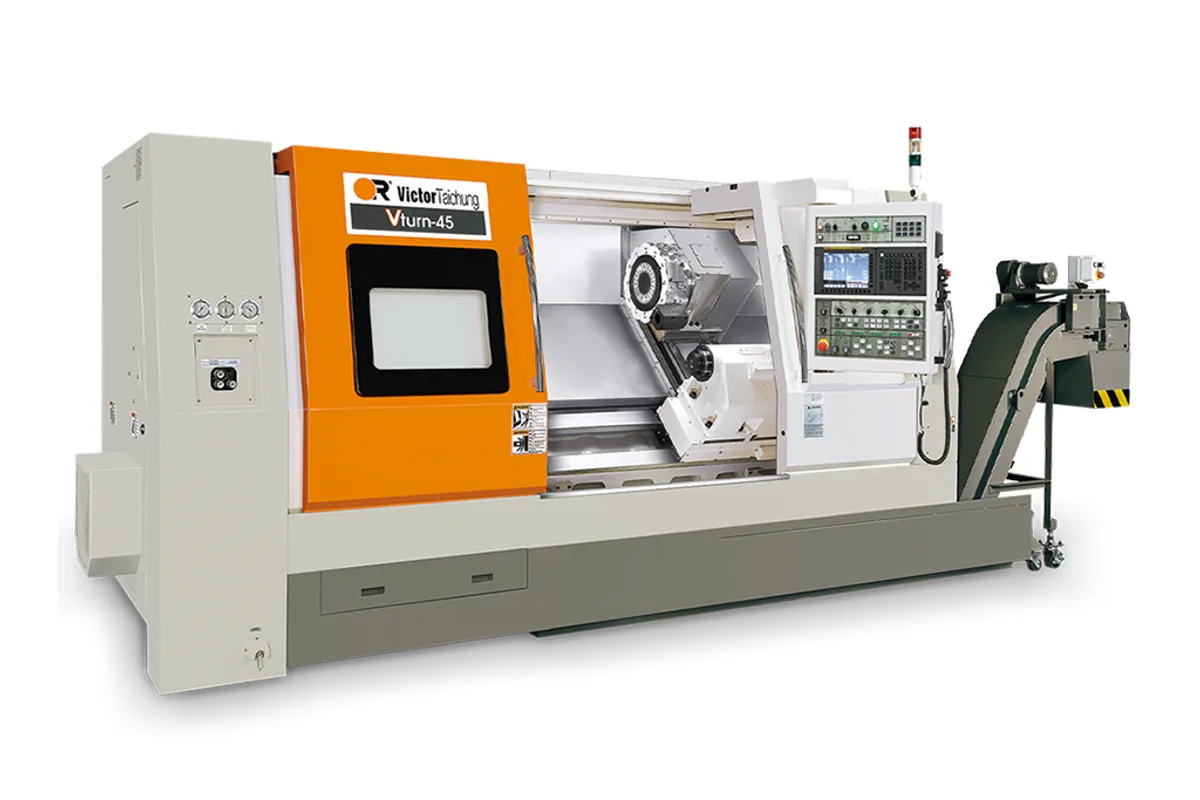

Victor Taichung Vturn-45/325
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Max Turn Length
standard turning diameter
max turning diameter
swing over carriage
spindle nose
How much does the Victor Taichung Vturn-45/325 cost?
Price estimate
We do not have a price for the Victor Taichung Vturn-45/325 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vturn-45/325 is the 3,235 mm (127.36 in) bed of the maker's big-bore heavy lathe, with an A2-11 spindle nose and a 15 in chuck. Before anything else, a buyer should know that the table for this model is not consistent from column to column.
In the C Axis and Y Axis columns the spindle figures are the ones the Vturn-45 is known by: 2,000 rpm and Ø117.5 mm (Ø4.62 in) of bar capacity. In the 2 Axis column the table prints 2,500 rpm and Ø91 mm (Ø3.58 in), which are the figures of the smaller-bore Vturn-40/325. The maker's series notes say Bar capacity 117.5mm, Spindle speed 2000rpm for the Vturn-45 without exception. This page reproduces the table as printed. Get the bore of a 2 Axis machine confirmed in writing.
The remaining rows are regular. Maximum turning diameter is Ø620 mm (Ø24.4 in) for the 2 Axis machine, Ø580 mm (Ø22.83 in) with the C axis and Ø520 mm (Ø20.47 in) with the Y axis, and the turret holds 10, 12 and 12 tools on □32 mm shanks.
Weight rises sharply with live tooling on this length, from 17,000 kg (37,478.53 lb) to 19,300 kg (42,549.16 lb) for the C Axis machine and 19,500 kg (42,990.08 lb) for the Y Axis machine. Long tube and shaft work is the purpose, and a manual or hydraulic steady rest is optional.
Full Specifications
| Parameter | Value |
|---|---|
| Standard Turning Diameter | 2 Axis: Ø520 mm (Ø20.47 in); C Axis: Ø492 mm (Ø19.37 in); Y Axis: Ø432 mm (Ø17 in) |
| Max Turning Diameter | 2 Axis: Ø620 mm (Ø24.4 in); C Axis: Ø580 mm (Ø22.83 in); Y Axis: Ø520 mm (Ø20.47 in) |
| Max Turning Length | 3,235 mm (127.36 in) |
| Swing Over Carriage | Ø620 mm (Ø24.4 in) |
| Max Spindle Speed | 2 Axis: 2,500 rpm; C Axis, Y Axis: 2,000 rpm |
| Spindle Nose | A2-11 (15") |
| Bar Capacity | 2 Axis: Ø91 mm (Ø3.58 in); C Axis, Y Axis: Ø117.5 mm (Ø4.62 in) |
| Turret Tools | 2 Axis: 10; C Axis, Y Axis: 12 |
| Tool Shank Size | □32 mm |
| Tailstock Quill Taper | 2 Axis: M.T. #5 (live); C Axis, Y Axis: M.T. #5 |
| Machine Weight | 2 Axis: 17,000 kg (37,478.53 lb); C Axis: 19,300 kg (42,549.16 lb); Y Axis: 19,500 kg (42,990.08 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,235 mm (127.36 in) of turning length
- Ø117.5 mm (Ø4.62 in) bar capacity in the C Axis and Y Axis columns
- 15 in chuck on an A2-11 nose, with an 18 in chuck optional
- 12-tool turret with live tooling configurations
- One-piece 45-degree slant bed
Limitations
- The 2 Axis column prints Ø91 mm (Ø3.58 in) and 2,500 rpm, at odds with the rest of the Vturn-45 line
- C Axis and Y Axis machines weigh 19,300 kg (42,549.16 lb) and 19,500 kg (42,990.08 lb)
- The steady rest needed for long work is an option
- 10 tools on the 2 Axis turret
Best For
Frequently Asked Questions
01
The table prints Ø117.5 mm (Ø4.62 in) for the C Axis and Y Axis machines and Ø91 mm (Ø3.58 in) for the 2 Axis machine. Victor Taichung's notes for the Vturn-45 state a bar capacity of 117.5mm, so ask the supplier to confirm the 2 Axis figure.
02
2,000 rpm in the C Axis and Y Axis columns. The 2 Axis column prints 2,500 rpm. The spindle nose is A2-11 with a 15 in chuck in every column.
03
17,000 kg (37,478.53 lb) as a 2 Axis machine, 19,300 kg (42,549.16 lb) with the C axis and 19,500 kg (42,990.08 lb) with the Y axis. Use the figure for the configuration actually ordered when the foundation is designed.
04
Up to 3,235 mm (127.36 in), with Ø620 mm (Ø24.4 in) of swing over the carriage. The tailstock quill is M.T. #5 and a steady rest is available as an option.
