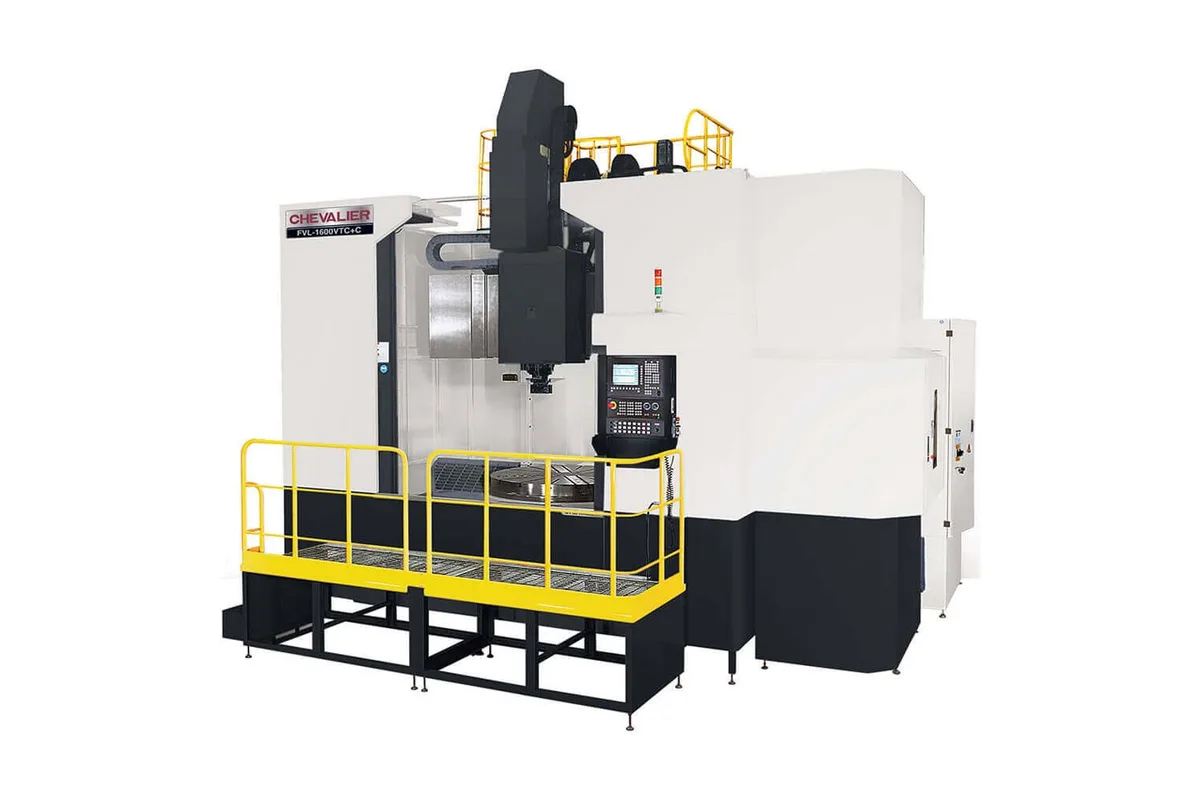

Chevalier FVL-1600VTC
Image: chevalierusa.com, Chevalier Machinery
Key Specifications
Spindle Taper
control
max swing diameter
max turning diameter
max turning height
max torque
How much does the Chevalier FVL-1600VTC cost?
Price estimate
We do not have a price for the Chevalier FVL-1600VTC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Chevalier FVL-1600VTC is the middle size of the FVL vertical turning lathes, with a 63.0 in (1,600 mm) table and a maximum swing of 78.7 in (2,000 mm). Table load is 22,000 lb (10,000 kg) and maximum torque 19,030 Nm, about two thirds more torque than the FVL-1250VTC delivers at 11,461 Nm.
Torque is what a larger table needs, because cutting force acts at a longer radius. The speed ranges drop accordingly, to High: 91 to 250 rpm and Low: 1 to 90 rpm. A low range that starts at 1 rpm is useful for heavy interrupted cuts on castings and for indicating a part in.
Turning height is 51.6 in (1,310 mm). X travel is -33.1 in, +45.7 in across the table centre. Z travel stays at 35.4 in (900 mm) and the beam's W travel at 31.5 in (800 mm), the same as on the smaller model, so tall parts gain less than wide ones from stepping up to this size. Spindle nose to table surface is 60.2 in (1,530 mm).
The ram is square, and Chevalier lists it at 240mm or 280mm depending on model, in a box-in-box arrangement with box ways on four sides. Tools are BT50 in a disk type changer, limited to Ø11 in in diameter in the full cutter state and 19.7 in (500 mm) in length. The machine weighs 70,500 lb (32,000 kg) and occupies 284.3 in x 248.0 in x 226.4 in. Control is by Fanuc 0i-T.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | Fanuc 0i-T |
| Max Swing Diameter | 78.7 in (2,000 mm) |
| Max Turning Diameter | 78.7 in (2,000 mm) |
| Max Turning Height | 51.6 in (1,310 mm) |
| Max Torque | 19,030 Nm (14,037 lb-ft) |
| Max Table Load | 22,000 lb (10,000 kg) |
| Table Diameter | 63.0 in (1,600 mm) |
| Table Speed | High: 91 to 250 rpm / Low: 1 to 90 rpm |
| Height Table to Floor | 35.6 in (905 mm) |
| Spindle Taper | ISO 7/24 No.50 |
| Distance Spindle Nose to Table | 60.2 in (1,530 mm) |
| X Axis Travel | -33.1 in, +45.7 in (-840 mm, +1,160 mm) |
| Z Axis Travel | 35.4 in (900 mm) |
| W Axis Beam Travel | 31.5 in (800 mm) |
| Rapid Traverse X Z | 393 ipm (10 m/min) |
| C Axis Cutting Feed | 0 to 1,200 deg./min |
| W Axis Rapid Traverse | 28 ipm (720 mm/min) |
| Tool Shank | BT50 |
| Pull Stud | JMBTA standard 45° |
| Tool Changer Type | Disk type |
| Max Tool Diameter (full magazine) | Ø11 in (full cutter state); Ø280 mm (full cutter state) |
| Max Tool Length | 19.7 in (500 mm) |
| Tool Change Time Chip to Chip | 30 sec |
| Machine Dimensions | 284.3 in x 248.0 in x 226.4 in (7,220 x 6,300 x 5,750 mm) |
| Machine Weight | 70,500 lb (32,000 kg) |
Specifications sourced from chevalierusa.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 78.7 in (2,000 mm) swing and cutting diameter with a 22,000 lb (10,000 kg) table load
- 19,030 Nm maximum torque at the table
- Low table range starting at 1 rpm for heavy interrupted cuts
- Box-in-box square ram with box ways on four sides, per the maker
- Beam (W axis) travel of 31.5 in (800 mm)
Limitations
- Z travel is 35.4 in (900 mm), no more than on the FVL-1250VTC
- Top table speed is 250 rpm
- Weighs 70,500 lb (32,000 kg) and stands 226.4 in (5,750 mm) high
- Tool diameter in the changer is limited to Ø11 in in the full cutter state
Best For
Frequently Asked Questions
01
The FVL-1600VTC swings 78.7 in (2,000 mm), carries 22,000 lb (10,000 kg) and delivers 19,030 Nm. The FVL-1250VTC swings 63.0 in (1,600 mm), carries 17,600 lb (8,000 kg) and delivers 11,461 Nm. Z travel and beam travel are the same on both.
02
High: 91 to 250 rpm and Low: 1 to 90 rpm. The table is 63.0 in (1,600 mm) in diameter and stands 35.6 in (905 mm) above the ground, which sets the loading height for the crane.
03
Maximum turning height is 51.6 in (1,310 mm). The distance from spindle nose to table surface is 60.2 in (1,530 mm), Z travel is 35.4 in (900 mm) and the beam travels a further 31.5 in (800 mm) on the W axis.
04
Floor space is listed as 284.3 in x 248.0 in x 226.4 in (7,220 x 6,300 x 5,750 mm) and net weight as 70,500 lb (32,000 kg). The maker's table gives no foundation or power data, so request both with the quotation.
More from Chevalier Machinery
Other CNC Lathes / Turning Centers
Honor Seiki VL-250C

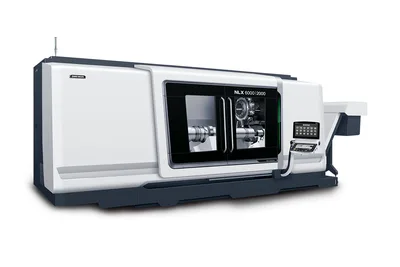

DMG Mori NLX 6000 Y
Ecoca MT-210MC

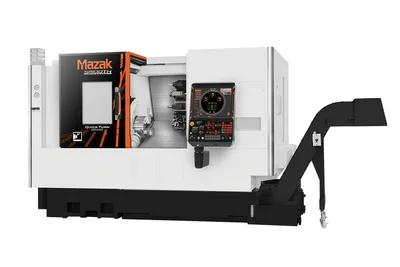

Mazak Quick Turn 250M
