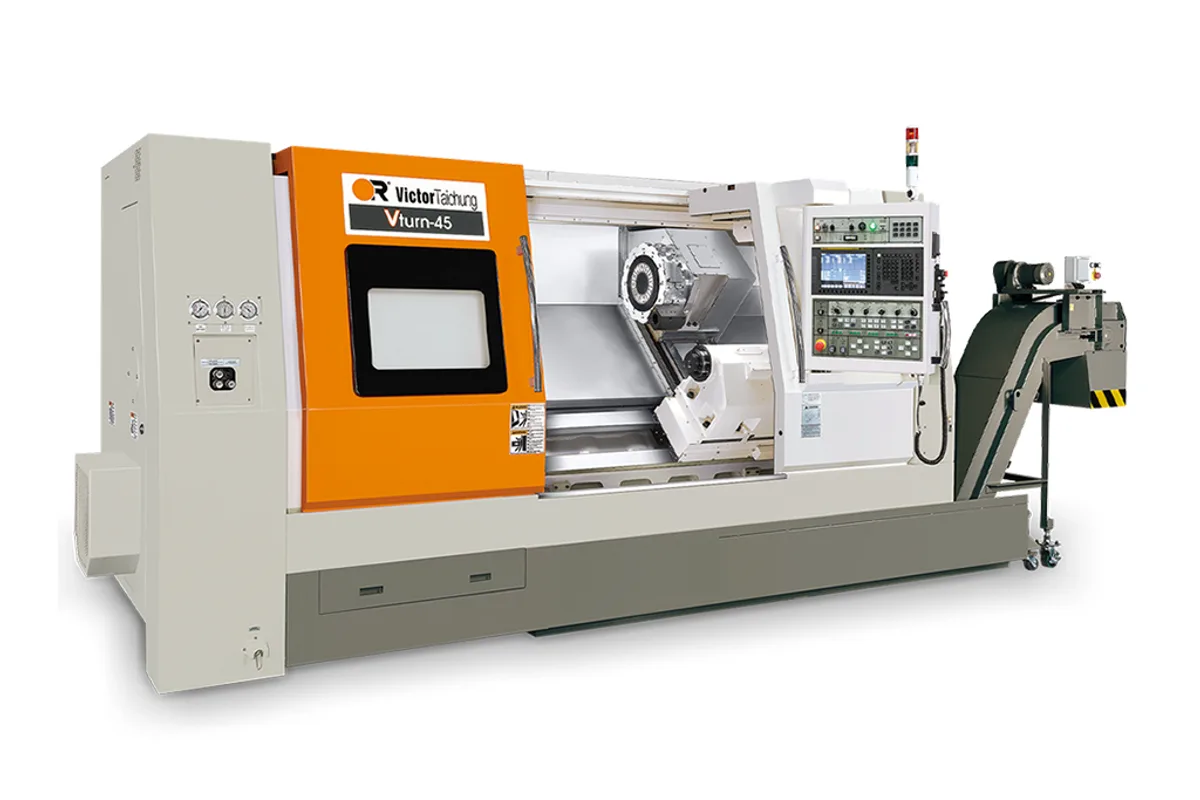

Victor Taichung Vturn-45/220
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Max Turn Length
standard turning diameter
max turning diameter
swing over carriage
spindle nose
How much does the Victor Taichung Vturn-45/220 cost?
Price estimate
We do not have a price for the Victor Taichung Vturn-45/220 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vturn-45/220 pairs a Ø117.5 mm (Ø4.62 in) spindle bore with 2,275 mm (89.56 in) of turning length. It is a 2,000 rpm machine with an A2-11 nose and a 15 in chuck, made for long tubular parts and heavy shafts.
A long bed and a large bore suit each other. Stock that is longer than the bed can sit partly inside the spindle, so a tube or a bar can be worked on its end without being cut to length first. Hydraulic cylinder barrels, drill pipe ends and large threaded connections are the natural parts. For still bigger stock, the maker offers a large spindle bore of 135mm.
Across the three configurations the table lists Ø620 mm (Ø24.4 in), Ø580 mm (Ø22.83 in) and Ø520 mm (Ø20.47 in) of maximum turning diameter for the 2 Axis, C Axis and Y Axis machines. The turret has 10 tools in the first case and 12 in the others. Weight is 15,500 kg (34,171.60 lb), 15,600 kg (34,392.07 lb) and 15,800 kg (34,832.99 lb).
Thread and groove work on tube rarely needs live tools, so the 2 Axis machine will be the usual choice here. Where flanges need bolt holes or shafts need keyways, the C axis with live tooling is on the option list. A steady rest, manual or hydraulic, is also optional.
Full Specifications
| Parameter | Value |
|---|---|
| Standard Turning Diameter | 2 Axis: Ø520 mm (Ø20.47 in); C Axis: Ø492 mm (Ø19.37 in); Y Axis: Ø432 mm (Ø17 in) |
| Max Turning Diameter | 2 Axis: Ø620 mm (Ø24.4 in); C Axis: Ø580 mm (Ø22.83 in); Y Axis: Ø520 mm (Ø20.47 in) |
| Max Turning Length | 2,275 mm (89.56 in) |
| Swing Over Carriage | Ø620 mm (Ø24.4 in) |
| Max Spindle Speed | 2,000 rpm |
| Spindle Nose | A2-11 (15") |
| Bar Capacity | Ø117.5 mm (Ø4.62 in) |
| Turret Tools | 2 Axis: 10; C Axis, Y Axis: 12 |
| Tool Shank Size | □32 mm |
| Tailstock Quill Taper | 2 Axis: M.T. #5 (live); C Axis, Y Axis: M.T. #5 |
| Machine Weight | 2 Axis: 15,500 kg (34,171.60 lb); C Axis: 15,600 kg (34,392.07 lb); Y Axis: 15,800 kg (34,832.99 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Ø117.5 mm (Ø4.62 in) through the spindle on a 2,275 mm (89.56 in) bed
- Large spindle bore of 135mm available
- 15 in chuck on an A2-11 nose, with an 18 in chuck optional
- M.T. #5 tailstock quill, marked live on the 2 Axis machine
- Steady rest offered in manual or hydraulic form
Limitations
- Spindle speed is limited to 2,000 rpm
- The 2 Axis turret holds 10 tools
- C axis and steady rest are both options
- 15,500 kg (34,171.60 lb) or more to install
Best For
Frequently Asked Questions
01
2,275 mm (89.56 in). The Vturn-45 line is also built with shorter and longer beds; Victor Taichung's notes give its turning lengths as 1250 / 2200 / 3250 / 4250 mm.
02
Ø117.5 mm (Ø4.62 in) according to the table, at a maximum of 2,000 rpm. A large spindle bore of 135mm is listed by the maker as available for the Vturn-45.
03
Ø620 mm (Ø24.4 in) maximum for the 2 Axis machine, Ø580 mm (Ø22.83 in) for the C Axis machine and Ø520 mm (Ø20.47 in) for the Y Axis machine. Swing over the carriage is Ø620 mm (Ø24.4 in).
04
Yes. A programmable tailstock is on the standard list and the table gives an M.T. #5 quill, marked live for the 2 Axis machine. A tailstock centre is listed separately as an option.
