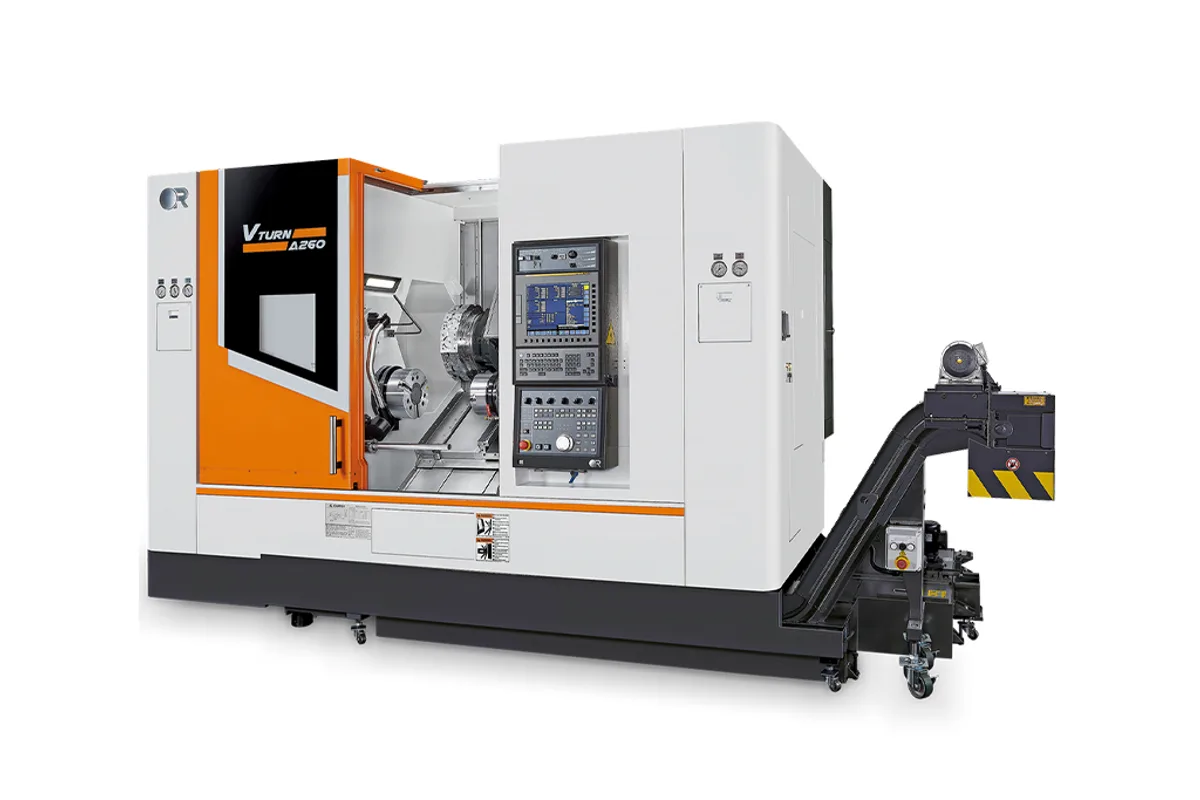

Victor Taichung Vturn-A260/75
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Max Turn Length
standard turning diameter
max turning diameter
swing over carriage
spindle nose
How much does the Victor Taichung Vturn-A260/75 cost?
Price estimate
We do not have a price for the Victor Taichung Vturn-A260/75 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vturn-A260/75 is the 10 in chuck member of the A series, with an A2-8 main spindle at 3,500 rpm, Ø75 mm (Ø2.95 in) bar capacity and a turning length of up to 950 mm (37.40 in). It comes in the same five configurations as the smaller Vturn-A200/60, but its second spindle is a different proposition.
Here the sub-spindle is a full 8 in unit: an A2-6 nose, 5,000 rpm and Ø52 mm (Ø2.04 in) through the bore. It is listed in the SM, SCM and YSCM columns. A sub-spindle of that size can take over a real share of the work, so second operations on chucked parts are practical and not only bar pick-off. Victor Taichung captions the YSCM as Y-axis plus sub-spindle plus C-axis with a BMT turret.
The columns differ in more than spindles, and the table needs careful reading. Maximum turning diameter is Ø480 mm (Ø18.89 in) for the SM and Ø420 mm (Ø16.53 in) for the other four. Turning length is 950 mm (37.40 in) for the SM, YCM and YSCM and 910 mm (35.82 in) for the CM and SCM. Shank size is □20 mm on the SM and □25 mm elsewhere. The CM and YCM have an M.T. #5 tailstock quill.
Weights follow the equipment: 6,500 kg (14,330.02 lb) for the CM up to 7,500 kg (16,534.64 lb) for the YSCM. All five have a 12-tool turret.
Full Specifications
| Parameter | Value |
|---|---|
| Standard Turning Diameter | Ø358 mm (Ø14.09 in) |
| Max Turning Diameter | SM: Ø480 mm (Ø18.89 in); CM, SCM, YCM, YSCM: Ø420 mm (Ø16.53 in) |
| Max Turning Length | SM, YCM, YSCM: 950 mm (37.40 in); CM, SCM: 910 mm (35.82 in) |
| Swing Over Carriage | SM: Ø620 mm (Ø24.4 in); CM, SCM, YCM, YSCM: Ø770 mm (Ø30.31 in) |
| Max Spindle Speed | 3,500 rpm |
| Spindle Nose | A2-8 (10") |
| Bar Capacity | Ø75 mm (Ø2.95 in) |
| Sub Spindle Speed | SM, SCM, YSCM: 5,000 rpm (CM, YCM: not listed) |
| Sub Spindle Nose | SM, SCM, YSCM: A2-6 (8") (CM, YCM: not listed) |
| Sub Spindle Bar Capacity | SM, SCM, YSCM: Ø52 mm (Ø2.04 in) (CM, YCM: not listed) |
| Turret Tools | 12 |
| Tool Shank Size | SM: □20 mm; CM, SCM, YCM, YSCM: □25 mm |
| Tailstock Quill Taper | CM, YCM: M.T. #5 (SM, SCM, YSCM: not listed) |
| Machine Weight | SM, SCM: 6,700 kg (14,770.95 lb); CM: 6,500 kg (14,330.02 lb); YCM: 7,300 kg (16,093.72 lb); YSCM: 7,500 kg (16,534.64 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 8 in sub-spindle with 5,000 rpm and Ø52 mm (Ø2.04 in) bar capacity in three configurations
- Ø75 mm (Ø2.95 in) main bar capacity on an A2-8 nose with a 10 in chuck
- Up to 950 mm (37.40 in) of turning length
- YSCM configuration combines Y axis, sub-spindle and C axis
- 12-tool turret in every configuration
Limitations
- Maximum turning diameter is Ø420 mm (Ø16.53 in) in four of the five columns
- CM and SCM are listed with 910 mm (35.82 in) of turning length, less than the other three columns
- Sub-spindle columns list no tailstock quill
- Main spindle speed is 3,500 rpm
Best For
Frequently Asked Questions
01
5,000 rpm, an A2-6 nose with an 8 in chuck and Ø52 mm (Ø2.04 in) bar capacity, listed for the SM, SCM and YSCM configurations. The CM and YCM have an M.T. #5 tailstock quill and no sub-spindle figures.
02
Victor Taichung captions the Vturn-A260 YSCM as Y-axis plus sub-spindle plus C-axis with a BMT turret. In the table it is the heaviest configuration at 7,500 kg (16,534.64 lb), with 950 mm (37.40 in) of turning length.
03
Ø480 mm (Ø18.89 in) in the SM column and Ø420 mm (Ø16.53 in) in the CM, SCM, YCM and YSCM columns. The standard turning diameter is Ø358 mm (Ø14.09 in) throughout.
04
The Vturn-A260/75 has an A2-8 main spindle at 3,500 rpm with Ø75 mm (Ø2.95 in) bar capacity. The Vturn-A200/60 has an A2-6 spindle at 4,200 rpm with Ø52 mm (Ø2.04 in). Its sub-spindle passes Ø52 mm (Ø2.04 in), against Ø30 mm (Ø1.18 in) on the Vturn-A200/60.
More from Victor Taichung
Other CNC Lathes / Turning Centers
Hyundai WIA LV500 Series
Citizen Miyano BNE-65MYY

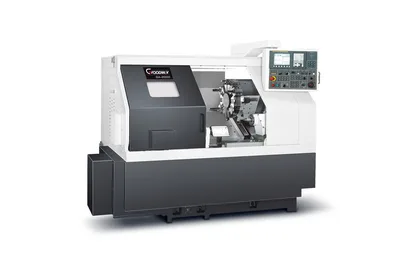

Goodway GA-2000
