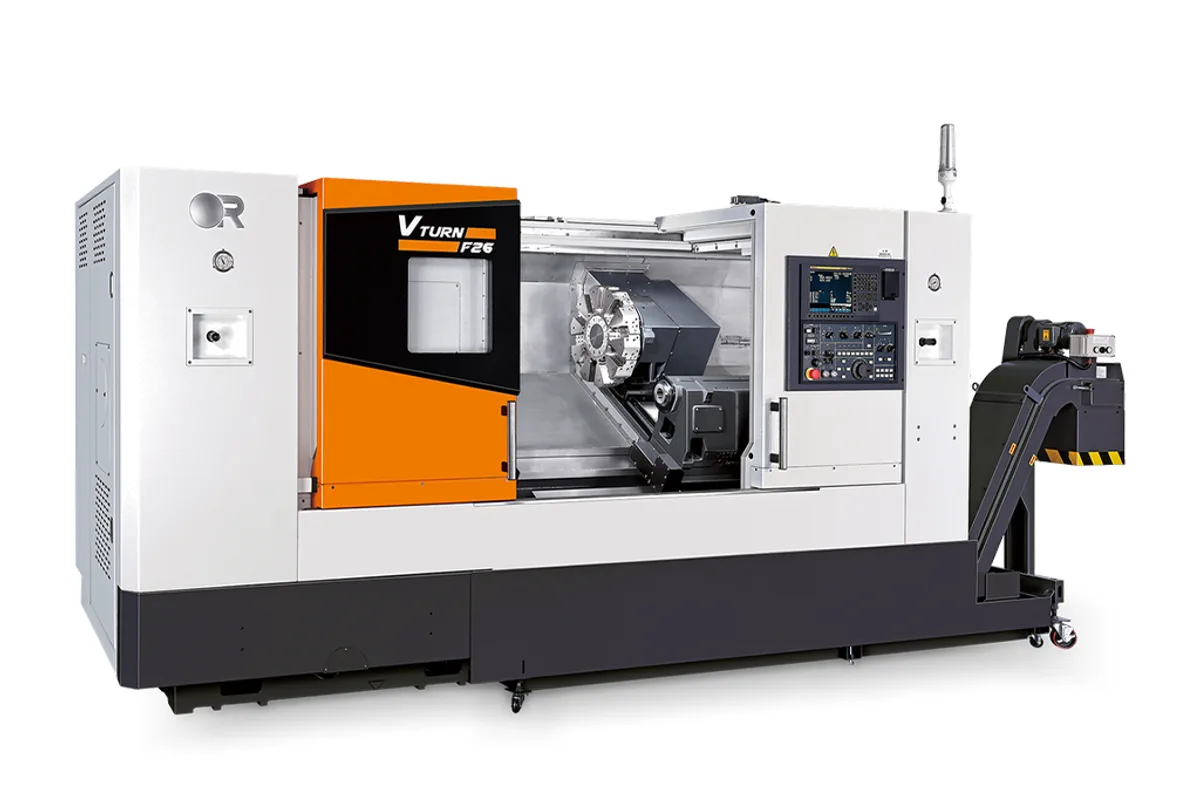

Victor Taichung Vturn-F26/60
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Max Turn Length
standard turning diameter
max turning diameter
swing over carriage
spindle nose
How much does the Victor Taichung Vturn-F26/60 cost?
Price estimate
We do not have a price for the Victor Taichung Vturn-F26/60 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vturn-F26/60 is the 10 in chuck version of the maker's basic box-way lathe. It turns Ø430 mm (Ø16.92 in) at most over a 640 mm (25.19 in) length, through an A2-8 spindle that runs to 3,500 rpm and passes Ø75 mm (Ø2.95 in) bar.
It shares a bed length with the Vturn-F20/60 and little else. The spindle is a size up, the standard turning diameter grows to Ø350 mm (Ø13.77 in), the tailstock quill becomes M.T. #5, and the weight rises to 5,650 kg (12,456.10 lb). The turret goes the other way, with 10 tools here on □25 mm shanks.
Short and stout is the right description. A 640 mm (25.19 in) turning length under a Ø430 mm (Ø16.92 in) swing suits discs, hubs, flanges and thick-walled rings more than shafts. Where length is needed, the Vturn-F26/110 has the same spindle and turret on a longer bed.
Construction follows the series: a one-piece 30˚ slant bed with box slideways, a belt-driven spindle with a shortened belt, and a Z-axis ball screw 40mm in diameter. The programmable tailstock and chip conveyor are included. It remains a two-axis machine, with no C axis in the table or among the options.
Full Specifications
| Parameter | Value |
|---|---|
| Standard Turning Diameter | Ø350 mm (Ø13.77 in) |
| Max Turning Diameter | Ø430 mm (Ø16.92 in) |
| Max Turning Length | 640 mm (25.19 in) |
| Swing Over Carriage | Ø480 mm (Ø18.89 in) |
| Max Spindle Speed | 3,500 rpm |
| Spindle Nose | A2-8 (10") |
| Bar Capacity | Ø75 mm (Ø2.95 in) |
| Turret Tools | 10 |
| Tool Shank Size | □25 mm |
| Tailstock Quill Taper | M.T. #5 |
| Machine Weight | 5,650 kg (12,456.10 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Ø75 mm (Ø2.95 in) bar capacity through an A2-8 spindle with a 10 in chuck
- Ø350 mm (Ø13.77 in) standard turning diameter, Ø430 mm (Ø16.92 in) maximum
- M.T. #5 tailstock quill on a programmable tailstock
- Box slideways on a one-piece 30˚ slant bed
Limitations
- 10-tool turret, two fewer than the Vturn-F20/60
- No C axis or live tooling in the F series
- 640 mm (25.19 in) of turning length is short for a machine of this swing
- Top spindle speed is 3,500 rpm
Best For
Frequently Asked Questions
01
Bed length. The Vturn-F26/60 has 640 mm (25.19 in) of turning length and weighs 5,650 kg (12,456.10 lb). The Vturn-F26/110 has 1,130 mm (44.48 in) and weighs 6,250 kg (13,778.87 lb). Spindle, bar capacity, turret and tailstock are the same.
02
An A2-8 nose with a 10 in chuck, 3,500 rpm maximum speed and Ø75 mm (Ø2.95 in) bar capacity. Victor Taichung describes it as belt driven with a shortened belt to cut noise and heat.
03
10 tools in the turret, on □25 mm shanks. The smaller Vturn-F20/60 has 12 tools, so the larger model gives up two stations for its bigger tooling.
04
The option list includes a manual tool presetter, higher pressure coolants, an air conditioner for the electrical cabinet, a part catcher, a bar feeder interface, an auto door and hard jaws. There is no C axis option.
