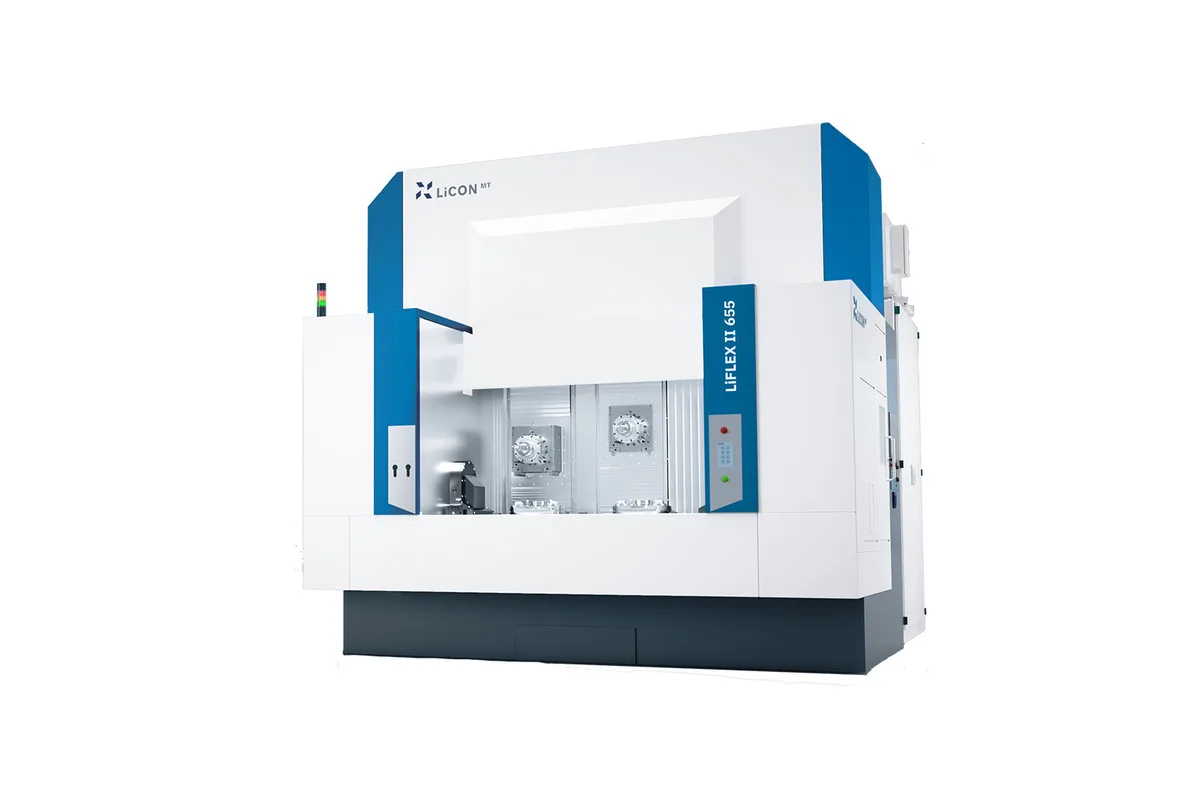

LiCON LiFLEX II 655
Image: licon.com, LiCON
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
axis configuration
spindle count
spindle distance
How much does the LiCON LiFLEX II 655 cost?
Price estimate
We do not have a price for the LiCON LiFLEX II 655 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The LiCON LiFLEX II 655 puts two spindles 600 mm (24 in) apart on a horizontal machining center with 600 mm (24 in) of X travel and 550 mm (22 in) of Y and Z. In Y and Z it matches the single-spindle LiFLEX I 755, which also has 550 mm (22 in) on both, so a part that fits that machine in height and depth can usually be considered for paired production here, provided it is narrower than the spindle distance.
That width limit shows in the interference cube. For the A / B axes LiCON lists 1,000 / 599 mm (39 / 24 in) with direct loading or a pallet changer and 750 / 599 mm (30 / 24 in) with a double trunnion. The trunnion takes the first figure from 1,000 mm (39 in) down to 750 mm (30 in) and leaves the second unchanged.
Spindle choice is wider than on the single-spindle machine of the same height. Options are 8,000 - 16,000 rpm with 100 / 200 / 350 Nm (74 / 148 / 258 ft-lb) on HSK 63 or HSK 100, whereas the LiFLEX I 755 is listed with 100 / 200 Nm (74 / 148 ft-lb). The twin can therefore be ordered for steel and cast iron as well as for light alloys, though the table does not match each torque to a speed or taper.
Tool capacity is 60 / 120 / 168. The axes rapid at 80 m/min (3,150 in/min) and accelerate at 12 m/s² (472 in/s²). The machine is built in 4- or 5-axis configuration, runs dry, with coolant or with MQL, and is listed as available with i³-Technology.
Full Specifications
| Parameter | Value |
|---|---|
| Axis Configuration | 4 / 5 |
| Spindle Count | 2 |
| Spindle Distance | 600 mm (24 in) |
| X Axis Travel | 600 mm (24 in) |
| Y Axis Travel | 550 mm (22 in) |
| Z Axis Travel | 550 mm (22 in) |
| Max Spindle Speed | 8,000 - 16,000 rpm (spindle options) |
| Spindle Torque | 100 / 200 / 350 Nm (74 / 148 / 258 ft-lb) (spindle options) |
| Spindle Taper | HSK 63 / HSK 100 |
| Tool Capacity | 60 / 120 / 168 |
| Acceleration | 12 m/s² (472 in/s²) |
| Rapid Traverse Xyz | 80 m/min (3,150 in/min) |
| Interference Cube A B | 1,000 / 599 mm (39 / 24 in) direct loading and pallet changer; 750 / 599 mm (30 / 24 in) double trunnion |
| Process Lubrication | Dry, coolant, MQL |
| Precision Technology | Available with i³-Technology |
Specifications sourced from licon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Two spindles 600 mm (24 in) apart on 600 mm (24 in) of X and 550 mm (22 in) of Y and Z
- Torque options up to 350 Nm (258 ft-lb), where the LiFLEX I 755 stops at 200 Nm (148 ft-lb)
- Interference cube of 1,000 / 599 mm (39 / 24 in) with direct loading or pallet changer
- Tool capacity of 60 / 120 / 168 and a choice of HSK 63 or HSK 100
- Rapid traverse of 80 m/min (3,150 in/min) with 12 m/s² (472 in/s²) acceleration
Limitations
- Each part and fixture is held to 599 mm (24 in) by the spindle distance
- A double trunnion reduces the first interference figure from 1,000 mm (39 in) to 750 mm (30 in)
- No 500 Nm (367 ft-lb) spindle option; that is listed only for the LiFLEX II 1276
- Spindle power, table load and machine weight are not in the maker's table
Best For
Frequently Asked Questions
01
The spindles are 600 mm (24 in) apart. X travel is 600 mm (24 in) and Y and Z are each 550 mm (22 in). Rapid traverse in X, Y and Z is 80 m/min (3,150 in/min) with 12 m/s² (472 in/s²) acceleration.
02
The interference cube for the A / B axes is 1,000 / 599 mm (39 / 24 in) with direct loading or a pallet changer, and 750 / 599 mm (30 / 24 in) with a double trunnion. The second figure follows the 600 mm (24 in) spindle distance and does not change with the loading method.
03
LiCON lists spindle options of 8,000 - 16,000 rpm with 100 / 200 / 350 Nm (74 / 148 / 258 ft-lb) of torque, on HSK 63 or HSK 100. The table gives no spindle power and does not say which torque goes with which speed, so settle the combination in the quotation.
04
Between the two others. The LiFLEX II 344 has a 320 mm (13 in) spindle distance with 73 / 85 Nm (54 / 63 ft-lb) spindles, and the LiFLEX II 1276 has a 1,200 mm (47 in) spindle distance with options up to 500 Nm (367 ft-lb). The LiFLEX II 655 has 600 mm (24 in) and up to 350 Nm (258 ft-lb).
