Ganesh VH-450 CNC

Q: How much does the Ganesh VH-450 CNC cost?

The price estimate for the Ganesh VH-450 CNC is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ganesh-vh-450-cnc#price; the request is passed to Ganesh or an authorised dealer.

Specs verified 2026-10-04 · expandmachinery.com Updated 2026-10-04

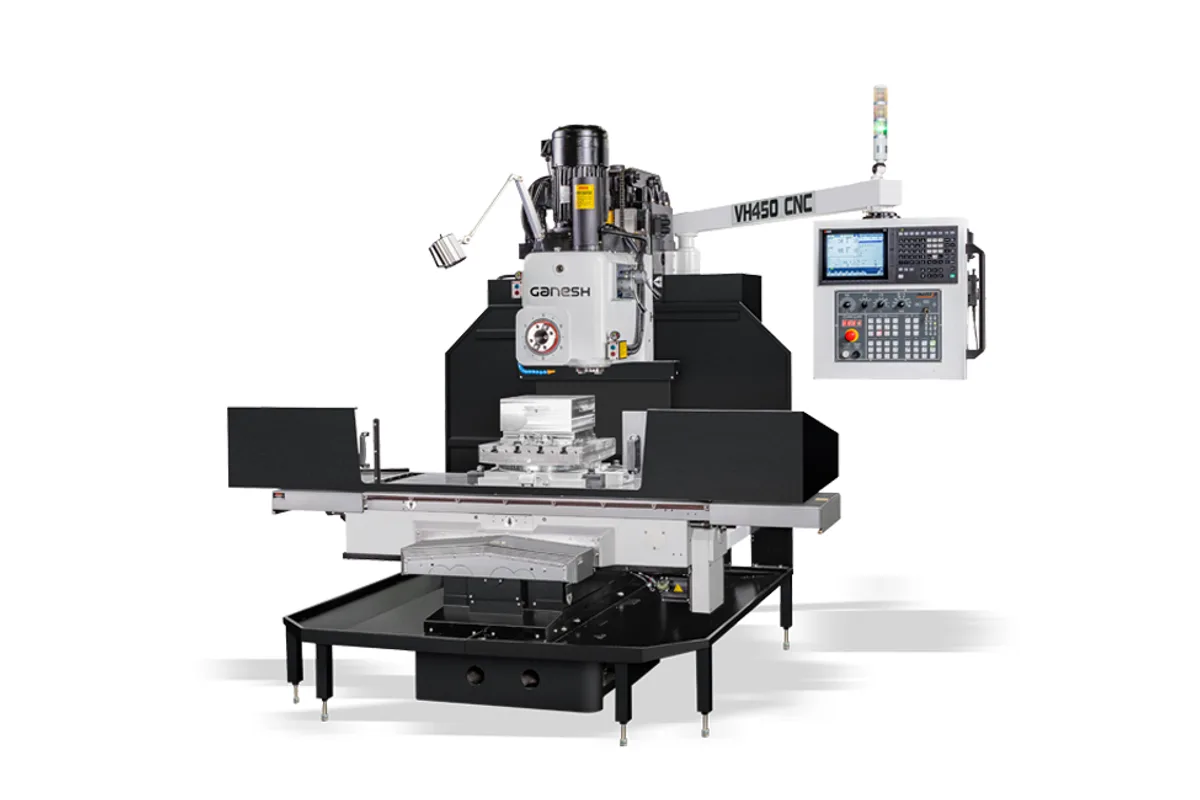

Image: expandmachinery.com, Ganesh

Key Specifications

Spindle Taper

NT50 or BT50

Table Size

59 x 17.7 in (1,500 x 450 mm)

Rapid Traverse

1 - 236 ipm (30 - 6,000 mm/min)

Spindle Power

10 HP (vertical and horizontal spindle)

max table load

2,200 lb (1,000 kg)

t slots

5 T-slots, 80 x 18 mm

How much does the Ganesh VH-450 CNC cost?

Price estimate

Uncertain

We do not have a price for the Ganesh VH-450 CNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The VH-450 CNC is a bed-type CNC mill with two spindles, one vertical and one horizontal, both 50-taper and both rated 10 HP. It is not a machining center: there is no tool changer in the specification, and tools are clamped by an air power drawbar. What it offers is rigidity, a 59 x 17.7 in (1,500 x 450 mm) table that carries 2,200 lb (1,000 kg), and the ability to work a part from the top and from the side in one setup.

Axis travels are 43.3 in (1,100 mm) in X, 28.3 in (720 mm) in Y and 30.7 in (780 mm) in Z. The maker separately lists the cutting envelope as 43.3 in (1,100 mm) long, 16.5 in (420 mm) wide and 19.6 in (500 mm) high, and those are the figures to plan a job around. The vertical spindle nose reaches from 0 to 24.3 in (0 - 617 mm) above the table; the horizontal spindle nose from 0 to 30.7 in (0 - 780 mm).

Both spindles run 45 - 1,500 rpm with variable speed through a geared head whose gears are hardened and ground. That speed range and the NT50 or BT50 taper say what the machine is for: face mills, large drills and boring bars in steel and cast iron, not small end mills. Feeds and rapids share one range, 1 - 236 ipm (30 - 6,000 mm/min), driven by 1 HP (0.75 kW) motors on each axis.

The control is a Fanuc OiMF with a 10.4 in display, and lubrication is automatic. The machine weighs 8,818 lb (4,000 kg) net. It is the smallest of the three Ganesh vertical/horizontal CNC mills; the VH-650B CNC moves up to 15 HP spindles and a 4,409 lb (2,000 kg) table load.

Full Specifications

Parameter	Value
Table Size	59 x 17.7 in (1,500 x 450 mm)
Max Table Load	2,200 lb (1,000 kg)
T-Slots	5 T-slots, 80 x 18 mm
X Axis Travel	43.3 in (1,100 mm)
Y Axis Travel	28.3 in (720 mm)
Z Axis Travel	30.7 in (780 mm)
Cutting Feed Rate	1 - 236 ipm (30 - 6,000 mm/min)
Rapid Traverse Rate	1 - 236 ipm (30 - 6,000 mm/min)
Cutting Length	43.3 in (1,100 mm)
Cutting Width	16.5 in (420 mm)
Cutting Height	19.6 in (500 mm)
Axis Motor Power	1 HP (0.75 kW) in all 3 axes
Spindle Speed	45 - 1,500 rpm variable speed (vertical and horizontal spindle)
Spindle Motor Power	10 HP (vertical and horizontal spindle)
Spindle Taper	NT50 or BT50
Vertical Spindle Nose to Table	0 - 24.3 in (0 - 617 mm)
Vertical Spindle Center to Slide Surface	17.7 in (450 mm)
Horizontal Spindle Nose to Table	0 - 30.7 in (0 - 780 mm)
Horizontal Spindle Center to Table Edge	7.08 in (180 mm)
Machine Weight	8,818 lb (4,000 kg) net; 9,920 lb (4,500 kg) gross
Machine Dimensions	137.7 x 122 x 108.2 in (3,500 x 3,100 x 2,750 mm) L x W x H
CNC Control	Fanuc OiMF with 10.4 in display

Specifications sourced from expandmachinery.com — verified 2026-10-04

Strengths & Limitations

Strengths

Vertical and horizontal 50-taper spindles, 10 HP each, on one machine
59 x 17.7 in (1,500 x 450 mm) table rated for 2,200 lb (1,000 kg)
Geared milling head with hardened and ground gears, 45 - 1,500 rpm
Fanuc OiMF control with a 10.4 in display
Air power drawbar and automatic lubrication are standard

Limitations

No automatic tool changer in the specification
Spindle speed tops out at 1,500 rpm
Rapids are limited to 236 ipm (6,000 mm/min)
Axis motors are 1 HP (0.75 kW)
Cutting width is 16.5 in (420 mm), well inside the 28.3 in (720 mm) Y travel

Best For

Heavy face milling and boring in steel and cast iron Parts that need vertical and horizontal spindle work in one setup Toolroom and repair work on parts up to 2,200 lb (1,000 kg) Large drilling and boring with 50-taper tooling

Frequently Asked Questions

01 What does vertical/horizontal mean on the VH-450 CNC?

The machine has two spindles: a vertical one above the table and a horizontal one that approaches the part from the side. Each runs 45 - 1,500 rpm at 10 HP with an NT50 or BT50 taper. A part can be milled or bored from above and from the side without being moved to another machine.

02 What are the travels and the cutting envelope?

Axis travels are 43.3 in (1,100 mm), 28.3 in (720 mm) and 30.7 in (780 mm) in X, Y and Z. The cutting length is 43.3 in (1,100 mm), cutting width 16.5 in (420 mm) and cutting height 19.6 in (500 mm). The table is 59 x 17.7 in (1,500 x 450 mm) with 5 T-slots.

03 Does the VH-450 CNC have an automatic tool changer?

None is listed. The feature list names an air power drawbar as standard, which clamps and releases the 50-taper tool at the spindle, so tool changes are made by hand. Automatic lubrication and a Fanuc OiMF control with a 10.4 in display are also standard.

04 How heavy is it and how much room does it need?

Net weight is 8,818 lb (4,000 kg) and gross weight 9,920 lb (4,500 kg). Machine dimensions are 137.7 x 122 x 108.2 in (3,500 x 3,100 x 2,750 mm) in length, width and height. The table carries 2,200 lb (1,000 kg).
